Product Details:
|
| Imax: | TBA | Qmax: | 93W |
|---|---|---|---|
| Dimension1: | 72*76mm | Dimension2: | 16.2*16.8mm |
| High Light: | thermoelectric cooler module,peltier cooling module |
||

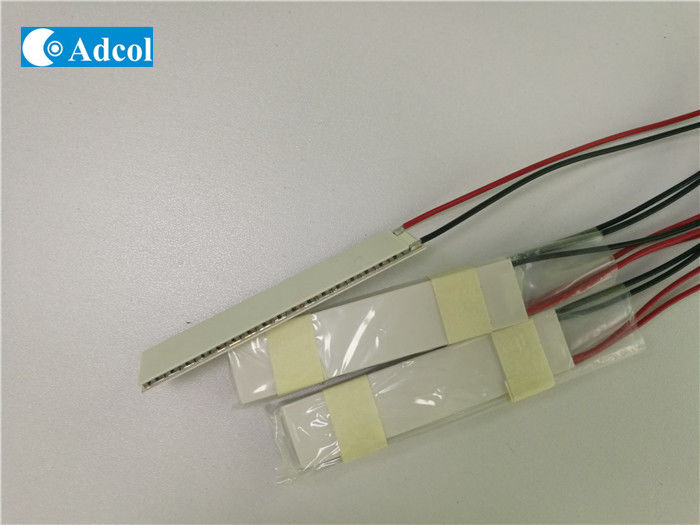

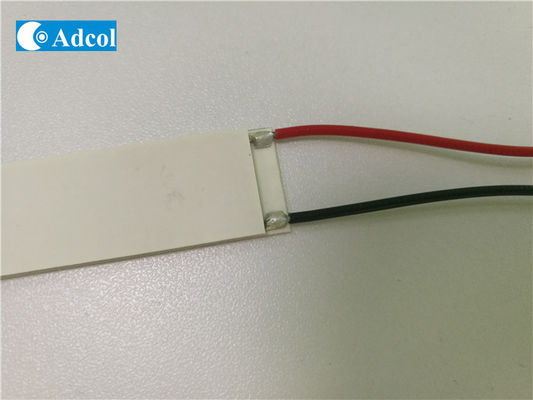

TEC Thermoelectric Cooling Module For Thermoelectric Assembly
TEC Characteristic
Definitions:
Imax : Input current resulting in greatest △T (△Tmax) [Amps]
N : Number of thermocouples (p-and n-type pairs)
Qmax : Maximum amount of heat that can be absorbed at cold face (occurs at I=Imax, △T = 0°C) [Watts]
Th :Temperature of the TEC hot face during operation [°C]
Tc :Temperature of the TEC cold face during operation [°C]
△T max : Maximum temperature difference a TEC can achieve (occurs atI=Imax, Qc = 0) [°C]
Vmax : Voltage at △T (△Tmax) [Volts]
