Product Details:
|
| Cooling Method: | Air To Air | Cooling Objective: | Air |
|---|---|---|---|
| Cooling Capacity: | 230W | Fan Input Voltage: | 48VDC |
| TEC Input Voltage: | 48VDC | Unit Stable Current: | 6.1A +/-10% |
| High Light: | industrial air conditioner,outdoor air conditioner |
||

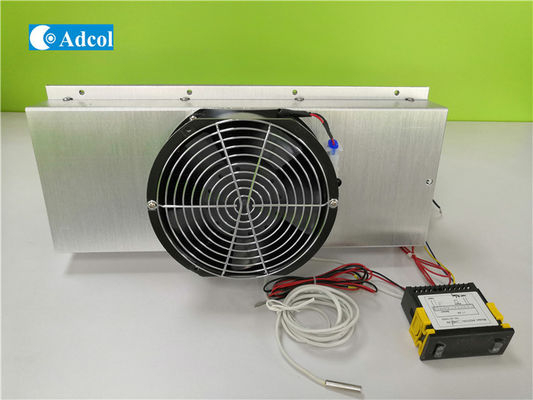

Air to air thermoelectric Cooler Assembly ATA200-48VDC
The ATA200-48 Thermoelectric air conditioner is designed for electronic cabinets and environmental chambers. It can maintain ambient temperatures while removing up to 200W. This model is available in 48VDC configurations. This air conditioner is virtually maintenance-free, with no filters ambient to change, and it can be mounted in any orientation, offering design flexibility with solid-state reliability.
Features :
200W capacity rated at ΔT = 0ºC,Tambient = 30°C
Refrigerant free - environmentally friendly
Wide operating temperature range of –20°C to +60°C
Shift between heating and cooling without using a heater
Reduced noise and vibration with no moving parts
Application :
Outdoor enclosures
Outdoor/Indoor Kiosks and display
Battery Cabinet
Food/Consumer Refrigerator
P/N: ATA200-48VDC
Cooling Method : Air Cool
Radiating method : Air Force
Ambient temperature/humidity : -20 to 60°C
Cooling Capacity : 230W
Input Power : 330W
Heating Capacity : 520W
Hot/Cold side fan Current : 0.30/0.18 A
TEM Nominal/Startup Current : 6.1/7.2A
Nominal/Max Voltage : 48/53 VDC
Weight: 7.5kg
Life Time : 70,000 Hours
Noise: 55 dB
