Product Details:
|
| Capacity: | 35W | Input Voltage: | 12VDC |
|---|---|---|---|
| Running Current: | 4.0A +/-10% | Start Current: | 5.0A |
| Hot Side Fans Current: | 0.25A | Cold Side Fans Current: | 0.2A |
| High Light: | Outside Thermoelectric Air Conditioner,Electronic Cabinets Thermoelectric Air Conditioner,35W Thermoelectric Air Conditioner |
||
TEC Cooler Outside Thermoelectric Peltier Air Conditioner Assembly Maintenance
Outdoor Thermoelectric Air Cooler Peltier Air Conditioner Assembly

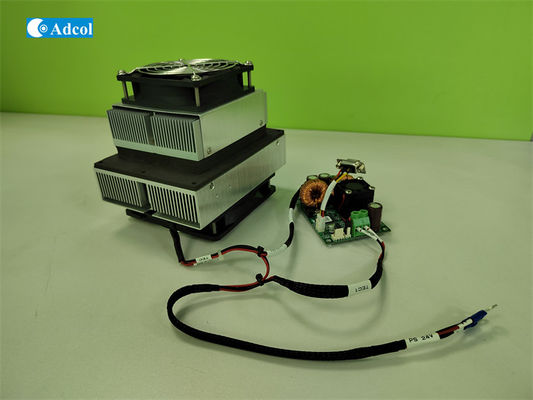

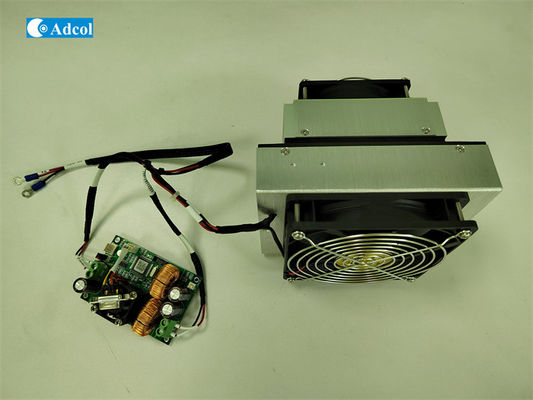

The ATA035-12 Thermoelectric air conditioner is designed for electronic cabinets and environmental chambers. It can cool to 67 degree below ambient or maintain ambient temperatures while removing up to 35W. This model is available in 12VDC configurations. This air conditioner is virtually maintenance-free, with no filters ambient to change, and it can be mounted in any orientation, offering design flexibility with solid-state reliability.
1 – Specification:
| Specification: | #1 |
| Model: | ATA035-12VDC |
| Description | Air to Air cooling System |
| Capacity | 35 Watts |
| Input Voltage | 12 VDC |
| Working. Ambient Temp. | 0~60˚C |
| TEM Current (Running) | 4.0 +/-10%amps |
| TEM Current (Start) | 5.0amps |
| Hot Side Fans Current | 0.25 amps |
| Cold Side Fans Current | 0.2 amps |
| Weight | Est. 1.3 kg |
| Rating Maintained | NEMA 12 |
| Overall Dimensions | 120mm x 102mm x 133mm |
