Product Details:
|
| Capacity: | 149W | Input Voltage: | 24VDC |
|---|---|---|---|
| Max.Ambient Temp.: | 60 Degree C | Running Current: | 8.7 Amps |
| Weight: | 7.5 Kg | Rating Maintained: | NEMA12 |
| High Light: | peltier air conditioner,outdoor air conditioner |
||

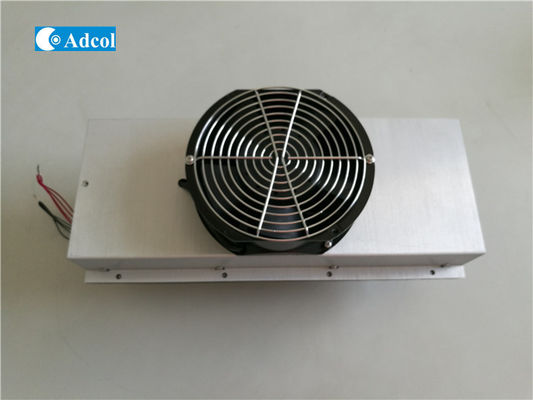

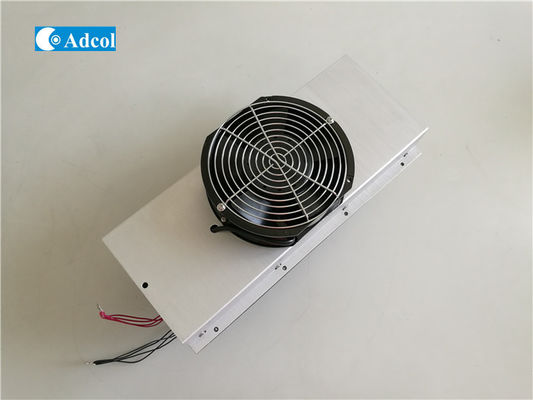

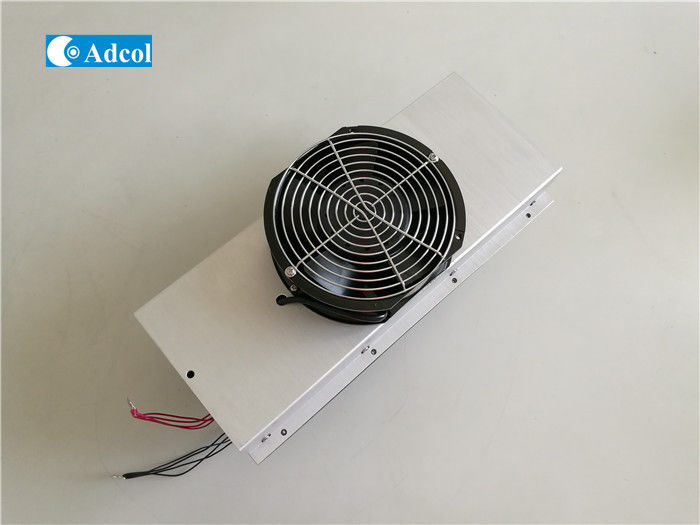

Peltier Air Conditioner , Portable Thermoelectric Air Cooler For Enclosure 150W 24VDC
The ATA150-24VDC Thermoelectric air conditioners are designed for electronic cabinets, refrigeration and environmental chambers. They can cool to 72˚F below ambient or maintain ambient tem- peratures while removing up to 550 BTU/Hr (@ 77˚F ambient). 24 or 48 VDC configuration. These air conditioners are virtually maintenance-free, with no filters to change, and they can be mounted in any orientation, offering design flexibility with solid-state reliability.
Wiring Schematic (Power Connector)
| Position | ATA150-24 |
| 1 | TEC + |
| 2 | TEC - |
| 3 | Cabinet side fans + |
| 4 | Cabinet side fans - |
| 5 | Ambient side fans + |
| 6 | Ambient side fans - |
Dimensional Drawing
Performance Curve :
| Model: | Adcol ATA150-24/48vdc |
| Capacity | 149 Watts |
| Input Voltage | 24/48 VDC |
| Max. Ambient Temp. | 60˚C |
| Current (Running) | 8.7/4.3 amps |
| Weight | 7.5 kg |
| Rating Maintained | NEMA 12 |
