Product Details:
|
| Qmax: | 300W | Run Current: | 14.0A |
|---|---|---|---|
| Peak Current: | 15.8A | Voltage: | 24VDC |
| Vmax: | 30VDC | Operating Temp.: | -10 - 50 Degree C |
| High Light: | peltier liquid cooler,peltier liquid cooling system |
||

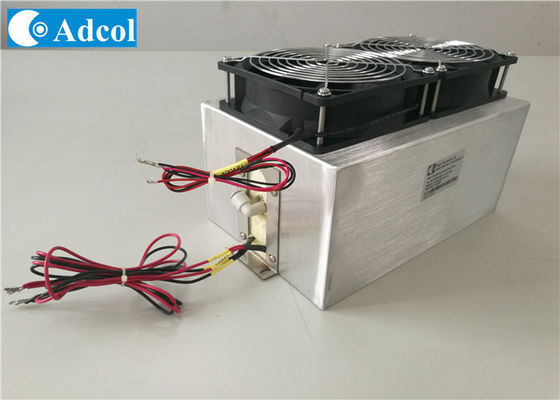

Machinery Cooling Thermoelectric Liquid Cooler , Thermoelectric Cooling Device Tec Liquid Cooler
This product is widely used in laser, medical, laboratory equipment and a wide range of industrial areas. In recent years, with the rise of laser beauty industry, Our ATL-Series semiconductor coolers have been widely used.
| Model | ATL300-24VDC |
| Cooling Method | Liquid |
| Radiating method | Air Force |
| Ambient temperature/humidity | -10 to 50°C, 35 to 80% RH (No condensation) |
| Cooling Capacity/Qmax | 300W |
| Input Power | 348W |
| Flow Rate | 5-10PLM |
| Pressure Arange | ≤100PSI |
| Port | Optional |
| Run Current | 14.0A |
| Peak Current | 15.8A |
| Voltage | 24VDC |
| Vmax | 30VDC |
| Operation Temp | -10~50℃ |
| Weight | 4.95 Kg |
| Life Time | 50000 Hour |
| Tolerance | 10% |
