3.75V Thermoelectric Power Module For Cabinet Cooling Device

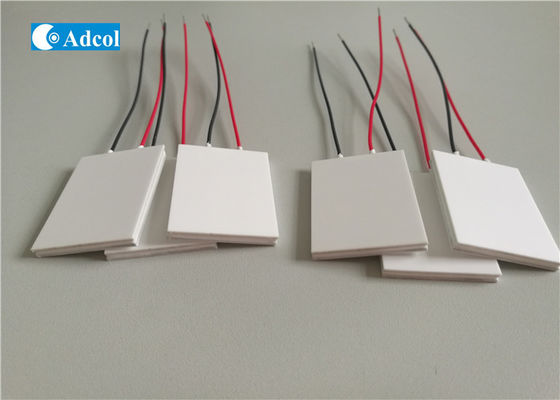

Large Image : 3.75V Thermoelectric Power Module For Cabinet Cooling Device

Product Details:

Place of Origin:	China
Brand Name:	Adcol
Certification:	ISO9001 , CE
Model Number:	TEC1-3105T

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiation
Packaging Details:	Solid carton packaging
Delivery Time:	3 - 4 weeks
Payment Terms:	T/T , Paypal
Supply Ability:	500pcs per month

Contact Now

3.75V Thermoelectric Power Module For Cabinet Cooling Device

Description

Imax:	5.0A	Qmax:	10.4W
Vmax:	3.75V	Tmax:	67℃
Length:	20mm	Width:	20mm
High Light:	thermoelectric cooler module , peltier cooling module

3.75V Thermoelectric Power Module For Cabinet Cooling Device

Peltier Effect

• When an electric current flows through two dissimilar conductors, depending on the direction of the current flow, the junction of the two conductors will either absorb or release heat.

•The heat absorbed or released at the junction is proportional to the electrical current. The proportionality constant is known as the Peltier coefficient.

Q = π*I

where π = Peltier coefficient

and I= junction current

• Thomson (Lord Kelvin) showed the relationship between the Seebeck and Peltier coefficients as:

π = αT T = temperature of the junction (°K)

α = Seebeck Coefficient (V/°K)

• Semiconductors are materials of choice for producing the Peltier effect.

–They are more easily optimized for pumping heat

–Designer can control the type of charge carrier employed within the conductor

•With semiconductor advancements, thermoelectric modules can now be produced to deliver efficient solid state heat pumping for both heating and cooling.

Model		TEC1-3105T
Imax(A)		5
Qmax(W)		10.4
Vmax(V)		3.75
Tmax(℃)		67
Dimension (mm)	A	20
	B	20
	C	20
	D	4.1

3.75V Thermoelectric Power Module For Cabinet Cooling Device 0
