Product Details:
|
| Ambient Temperature: | 0 - 60 ºC | Dissipation: | Air |
|---|---|---|---|
| Cooling: | Plate | Theory: | Peltier Effect |
| High Light: | thermoelectric cold plate,electrical cooling plate |
||

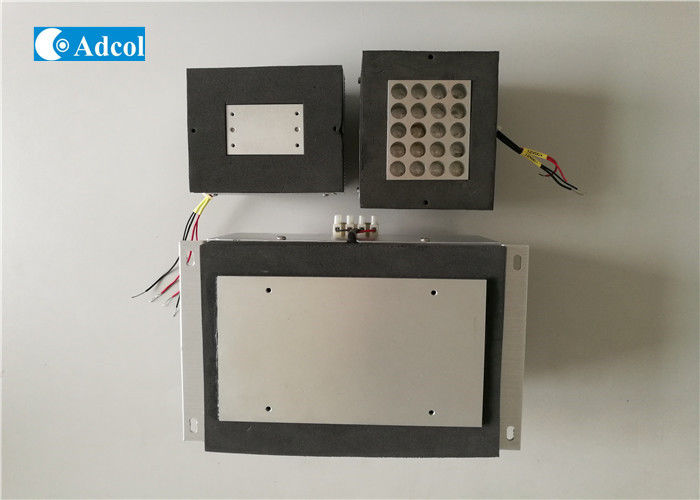

Cold Plate Thermoelectric Cooler Peltier Assembly For Direct Contact Cooling
Cold plate / Air to plate thermoelectric cooler (ATP) are usually the best method of cooling an object when the object can be attached directly to the cold plate.
The direct contact allows the heat to be efficiently conducted to the thermoelectric (Peltier) modules.
This keeps the system operating as efficiently as possible and improves the stability and accuracy of temperature control.
Feature:
- Effictive direct cooling
- Compact design for space sensitive applications
- Ideal for precise temperature control applications
- DC power configuration
Application:
- Medical
- Laboratory
Standard Products:
| ATP Item# |
Cooling capacity (W) |
Stable Current (A) |
Voltage (VDC) |
Weight (kg) |
Dimension (mm) | |||||
| L (cold side) |
W (cold side) |
H (cold side) |
L (hot side) |
W (hot side) |
H (hot side) |
|||||
| ATP020-12VDC | 21 | 2.1 | 12 | 0.3 | 60 | 40 | 10 | 80 | 60 | 59 |
| ATP040-12VDC | 39 | 4.0 | 12 | 0.8 | 60 | 40 | 10 | 120 | 102 | 59 |
| ATP050-12VDC | 50 | 8.0 | 12 | 1.1 | 80 | 60 | 12 | 160 | 122 | 70 |
| ATP050-24VDC | 50 | 4.0 | 24 | 1.1 | 80 | 60 | 12 | 160 | 122 | 70 |
| ATP080-12VDC | 82 | 11.2 | 12 | 2.9 | 178 | 105 | 33 | 203 | 155 | 119 |
| ATP080-24VDC | 79 | 4.3 | 24 | 2.9 | 178 | 105 | 33 | 203 | 155 | 119 |
| ATP150-24VDC | 147 | 9.0 | 24 | 5.5 | 368 | 105 | 33 | 464 | 155 | 119 |
| ATP200-24VDC | 195 | 15.6 | 24 | 5.9 | 350 | 150 | 27 | 400 | 180 | 103 |
