Product Details:
|
| Input Voltage: | 90~265VAC | Frequency: | 50/60 Hz |
|---|---|---|---|
| Operating Temp.: | -10~45 °C | Operating Humidity: | 20~85% |
| Control Temperature Range: | 4-50 °C | Control Temperature: | 0-50 °C |
| High Light: | peltier water chiller,tec water chiller |
||

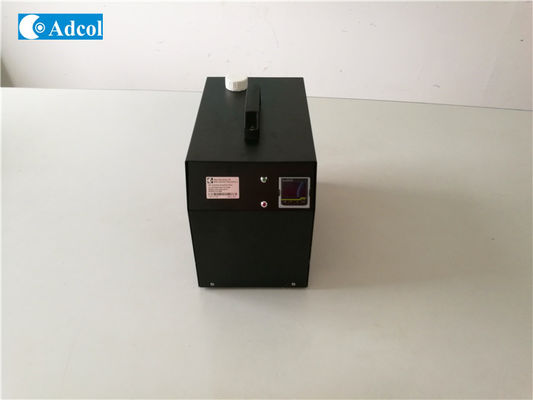

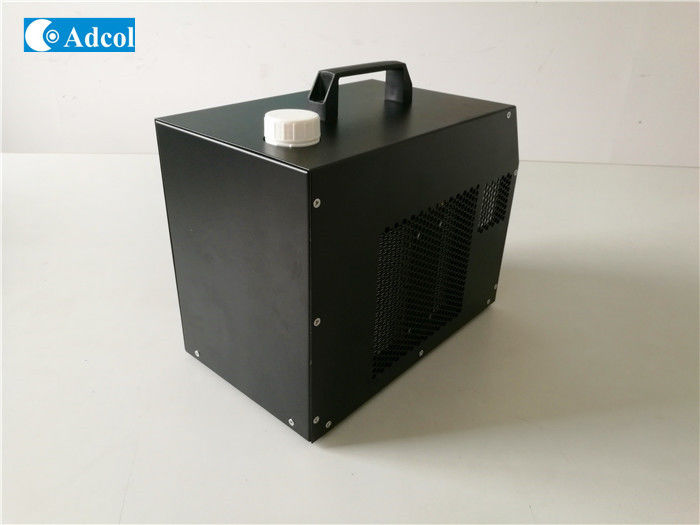

ISO9001 Portable Thermoelectric Water Chiller For Outdoor Equipment
Chiller can keep injection & Blowing machine in low temperature, so the machine can produce more and better quality products
The Benefits of Thermoelectric Cooling
· NO ICE REQUIRED FOR COOLING
· They allow for very tight and accurate temperature control
· No moving parts . Therefore they require little or no maintenance . Ideal for cooling parts that may be sensitive to mechanical vibration .
· No refrigerants , Therefore environmental and safety benefits
· Enables reduced, low-noise operation of cooling fans, while providing greater cooling power
· Allow for systems to be lightweight and compact due to their small size
· Long life
· Controllable (by voltage / current)
· Fast , dynamic response.
· Can provide cooling below ambient temperature
Application
Medical Imaging System
Medical lasers
Photonic Laser System
Machine tool
Industrial Instrument
Laboratory Test
3D Printing
| Model | ARC150-01 | ARC300-01 |
| Input voltage | 90~265VAC | 90~265VAC |
| Frequency | 50/60 Hz | 50/60 Hz |
| Operating environment temperature range | -10~45°C | -10~45°C |
| Operating Humidity | 20~85% | 20~85% |
| Control temperature range distilled H2O as coolant |
4-50°C | 4-50°C |
| Control temperature range, using 75% distilled H2O and 25% glycol or alcohol as coolant |
0-50°C | 0-50°C |
| Controller accuracy | ±0.1 | ±0.1 |
| Cooling Capacity | 149Watts | 300Watts |
| Heating Capacity | 250Watts | 300Watts |
| Current, 115VAC (230VAC) | 2.2A (1.2A) | 3.4A (1.8A) |
| Input power | 253Watts | 391Watts |
| Fluid Pressure | 0-40 PSI | 0-40 PSI |
| Maximum Flow Rate | 6 LPM | 6 LPM |
| Storage temperature range °C | -40~75°C | -40~75°C |
| Storage Humidity | 5~95% | 5~95% |
| Heat Radiation | Air Force | Air Force |
| No | Name | Description/Spec |
| 1 | Handle | Metal,Black |
| 2 | Filler Cap | Plastic |
| 3 | Coolant outlet | PLCD 16006 |
| 4 | Coolant inlet | PLCD 16006 |
| 5 | Power entry | C14,250VAC 10A |
| 6 | RS Connector | RS 485 |
| 7 | Controller | PID |
