50W 4.0A Peltier Thermoelectric Cooler Assembly For Cabinet Cooling

50W 4.0A Peltier Thermoelectric Cooler  Assembly For Cabinet Cooling
50W 4.0A Peltier Thermoelectric Cooler  Assembly For Cabinet Cooling 50W 4.0A Peltier Thermoelectric Cooler  Assembly For Cabinet Cooling 50W 4.0A Peltier Thermoelectric Cooler  Assembly For Cabinet Cooling 50W 4.0A Peltier Thermoelectric Cooler  Assembly For Cabinet Cooling

Large Image :  50W 4.0A Peltier Thermoelectric Cooler Assembly For Cabinet Cooling

Product Details:
Place of Origin: China
Brand Name: Adcol
Certification: ISO9001 , CE
Model Number: ATA050-24VDC
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Solid Carton Packaging
Delivery Time: 3 - 4 Weeks
Payment Terms: T/T , Paypal
Supply Ability: 500Pcs per month

50W 4.0A Peltier Thermoelectric Cooler Assembly For Cabinet Cooling

Description
Capacity: 50W Input Voltage: 24VDC
Running Current: 4.0A Start Current: 4.6A
Hot Side Fans Current: 0.25A Cold Side Fans Current: 0.18A
High Light:

peltier air conditioner

,

outdoor air conditioner

Thermoelectric Peltier Cooler Air Conditioner Assembly For Cabinet Cooling

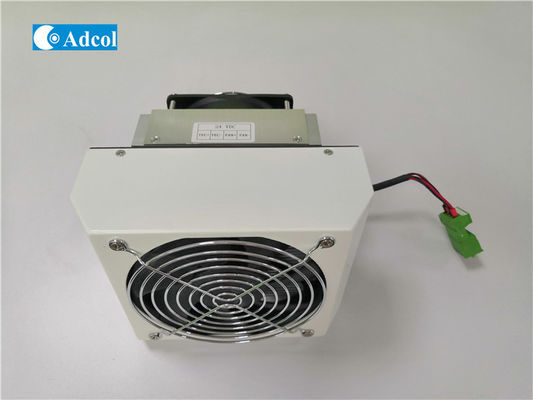

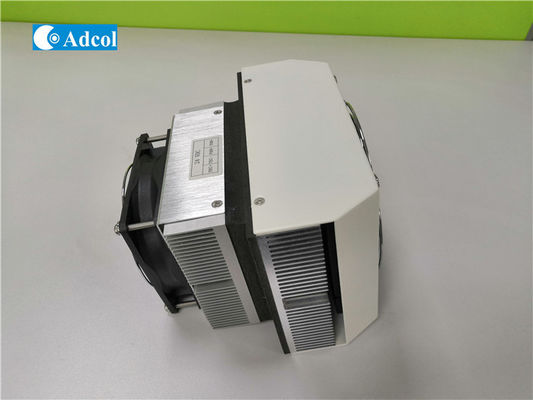

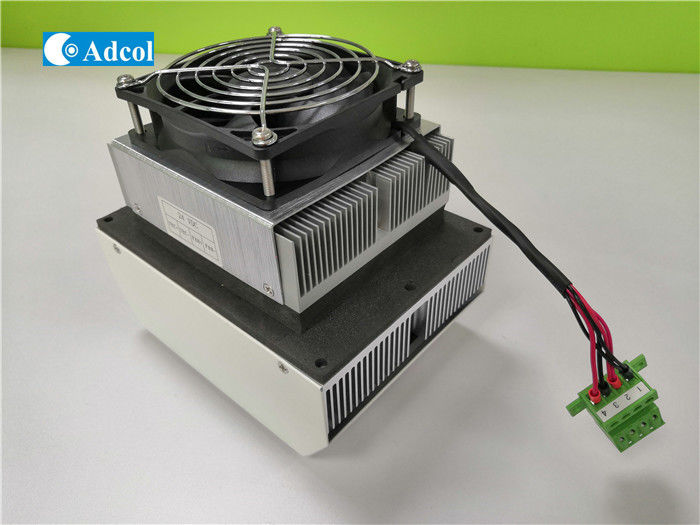

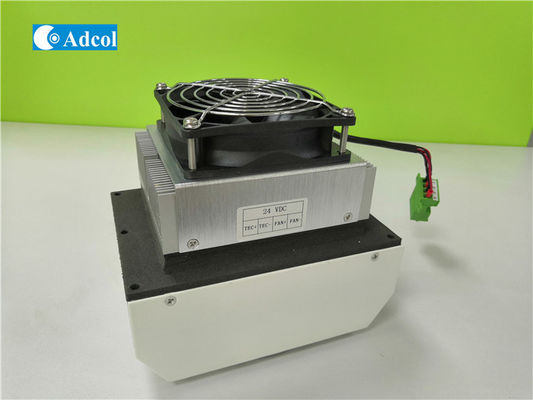

The ATA050-12 or 24VDC Thermoelectric air to air TEC conditioner is designed for electronic cabinets and environmental chambers. It can cool to 67 degree below ambient or maintain ambient temperatures while removing up to 50W. This model is available in 12VDC and 24VDC configurations. This air conditioner is virtually maintenance-free, with no filters ambient to change, and it can be mounted in any orientation, offering design flexibility with solid-state reliability.



Specification:  1 2
Model: ATA050-12VDC ATA050-24VDC
Description Air to Air cooling System Air to Air cooling System
Capacity- Qmax 50 Watts 50 Watts
Input Voltage 12 VDC 24 VDC
Working. Ambient Temp. 0~60˚C 0~60˚C
TEM Current (Running) 8.1 amps 4.0 amps
TEM Current (Start) 9.1amps 4.6 amps
Hot Side Fans Current 0.4 amps 0.25 amps
Cold Side Fans Current 0.3 amps 0.18 amps
Weight Est. 1.8 kg Est. 1.8kg
Rating Maintained NEMA 12 NEMA 12
Overall Dimensions 160mm x 123mm x 133mm 160mm x 123mm x 133mm
