|Cooling Method:||Air To Air||Cooling Objective:||Air|
|Cooling Capacity:||200W||Fan Input Voltage:||24VDC|
|TEC Input Voltage:||24VDC||Unit Stable Current:||15.0A +/-10%|
peltier air conditioner,
industrial air conditioner

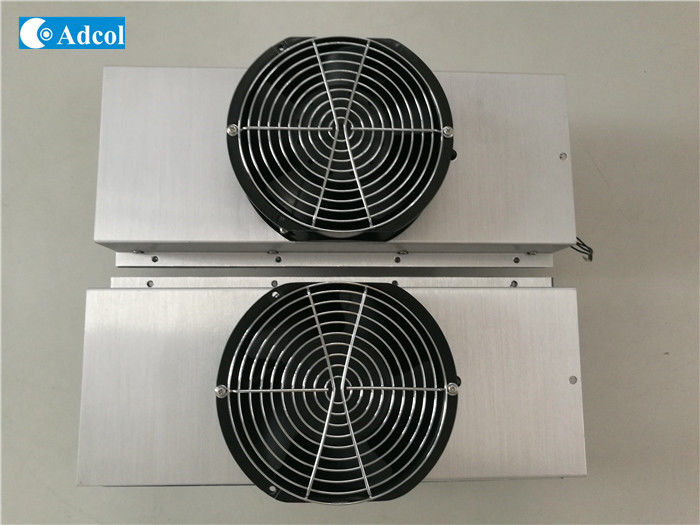

Inudstrial Thermoelectric Air Conditioner 200W Electrical Cooler ISO9001
This Specification makes general provisions for the performance indicators, technical parameters, environmental adaptation, monitoring performance and structural requirements of the TEC air-conditioner for battery cabinet.
1. General Spec:
The TEC air-conditioner consists of 6 parts, which are semiconductor cooling plate (including sealing and heat insulating materials), cold end radiator, hot end radiator, cold end fan, hot end fan and monitoring module. When power is supplied to the TEC air-conditioner, one end of the semiconductor cooling plate will be cooling and the other end heating, and the cold/heat generated will be radiated to the surroundings via the cold/hot end radiators and fans. The cold end radiator and the cold end fan make up the inner circulation for internal cooling of the cabinet; the hot end radiator and the hot end fan make up the outer circulation for heat radiation to the external environment, as shown in Figure 1.
ATA200-24VDC The air conducts of the inner and outer circulations of the TEC air-conditioner feature a central air intake and outlets on both sides, as shown in Figure
1) ATA200input power: DC24V,Power Supply with 24VDC( ±20%)are OK for the unit keeping working.
2) Wire:UL1015 16AWG
|Cooling Method||Air to air|
|Fan Input Voltage||24VDC|
|TEC Input Voltage||24VDC|
|Unit Stable Current||15.0+/-10%A|
|Max Ambient Tem||60~70 degree centigrade|
|Over Heat Protection||no|
|Life times||Over 50,000 hrs|
