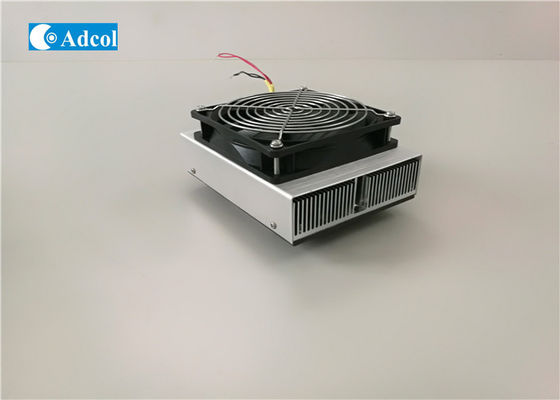

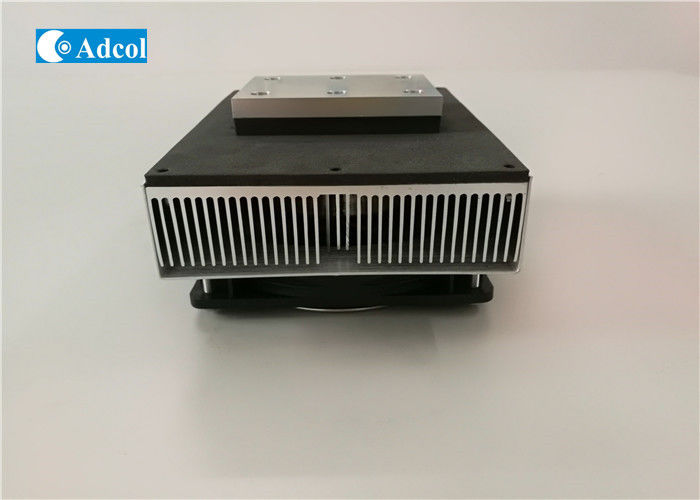

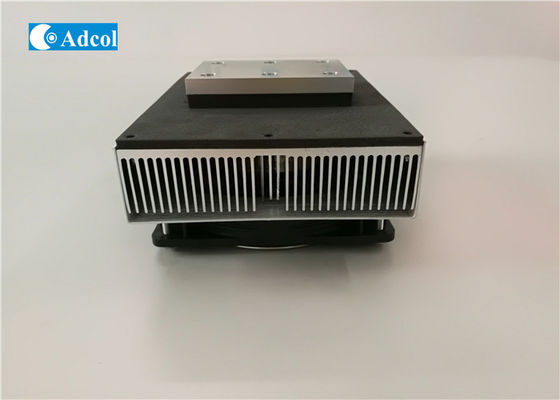

ISO9001 Thermoelectric Air To Plate Cooler Peltier Assembly For Medical

China ISO9001 Thermoelectric Air To Plate Cooler Peltier Assembly For Medical supplier
ISO9001 Thermoelectric Air To Plate Cooler Peltier Assembly For Medical supplier ISO9001 Thermoelectric Air To Plate Cooler Peltier Assembly For Medical supplier

Large Image :  ISO9001 Thermoelectric Air To Plate Cooler Peltier Assembly For Medical

Product Details:

Place of Origin: China
Brand Name: Adcol
Certification: ISO9001 , CE
Model Number: ATP050-24VDC

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Solid carton packaging
Delivery Time: 3 - 4 weeks
Payment Terms: T/T , Paypal
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Cooling Capacity: 50W Stable Current: 4A
Voltage: 24VDC Weight: 1.1kg

Thermoelectric Air To Plate Cooler Peltier Assembly For Medical​

Peltier Effect
•When an electric current flows through two dissimilar conductors, depending on the direction of the current flow, the junction of the two conductors will either absorb or release heat.

•The heat absorbed or released at the junction is proportional to the electrical current. The proportionality constant is known as the Peltier coefficient.

Q = π*I

where π = Peltier coefficient

and I= junction current

•Thomson (Lord Kelvin) showed the relationship between the Seebeck and Peltier coefficients as:

π = αT T = temperature of the junction (°K)

α = Seebeck Coefficient (V/°K)

•Semiconductors are materials of choice for producing the Peltier effect.
–They are more easily optimized for pumping heat
–Designer can control the type of charge carrier employed within the conductor

•With semiconductor advancements, thermoelectric modules can now be produced to deliver efficient solid state heat pumping for both heating and cooling.



Air to Plate Item# ATP050-24VDC
Cooling Capacity(W) 50
Current(A) 4
Voltage(VDC) 24
Weight(kg) 1.1
Dimension (mm)
(Cold side)
Length 80
Width 60
Height 12
Dimension (mm)
(Hot side)
Length 160
Width 122
Height 70

ISO9001 Thermoelectric Air To Plate Cooler Peltier Assembly For Medical
