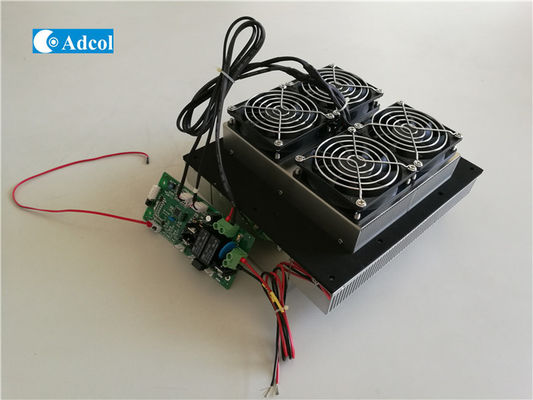

Customized Peltier Thermoelectric Air Cooler For ATM Machinery Cooling

China Customized Peltier Thermoelectric Air Cooler For ATM Machinery Cooling supplier
Customized Peltier Thermoelectric Air Cooler For ATM Machinery Cooling supplier Customized Peltier Thermoelectric Air Cooler For ATM Machinery Cooling supplier

Large Image :  Customized Peltier Thermoelectric Air Cooler For ATM Machinery Cooling

Product Details:

Place of Origin: China
Brand Name: Adcol
Certification: ISO9001 , CE
Model Number: ATA - C200 - 24VDC

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Solid carton packaging
Delivery Time: 3 - 4 weeks
Payment Terms: T/T , Paypal
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Power: 170W Cooling Capacity: 120W
Running Current: 7.0A Startup Current: 8.2A
Nominal Voltage: 24VDC Max Voltage: 27.2VDC

Customized Peltier Thermoelectric Air Cooler For ATM Machinery Cooling​

The ATA PowerCool Series is an Air-to-Air Thermoelectric Assembly (TEA) that uses
impingement flow to transfer heat. It offers dependable, compact performance by cooling
objects via convection. Heat is absorbed and dissipated thru high density heat exchangers
equipped with air ducted shrouds and brand name fans. The heat pumping action is created
by thermoelectric modules, which are custom designed to achieve a high coefficient of performance (COP).


Features
Compact design
Reliable solid-state operation
DC operation
RoHS compliant
IP55(IEC 60529)

Product design with IEC60950 Standards

Performance Data

Power (W) 170
Cooling Capacity(W) 120
Running Current(A) 7.0
Startup Current(A) 8.2
Nominal Voltage(VDC) 24
Max Voltage(VDC) 27.2
Operating Temperature(℃) -10~70
Storage Temperature(℃) -40~85
Weight(KG) 4.5
MTBF(fan-hrs) 70000
Performance Tolerance 10%


Controller:
Customized Peltier Thermoelectric Cooler Air To Air

Temperature setup:

Customized Peltier Thermoelectric Cooler Air To Air
Cooling:Ton=20-40℃ Toff= 10-25℃

Reliability Assurance

※Operation conditions Requirements

Operation Condition: ETS 300 019-1-4,CLASS 4.1E

Operating Temp: -10~70℃

Testing standard: ETS 300 019-2-4, Class 4.1E

※Storage requiremengs

Storage condition:According to ETS 300 019-1-1,CLASS 1.2

Testing standard: ETS 300 019-2-1,CLASS 1.2

※IP protection requirements

Condition: The outer Fans must meet IP55 rate

Testing standard: IEC 60529

※Corrosion resistance requirements

Outer side of the TEC cooler must be meet:

Item Testing Method Testing conditions Testing cycle
Alternate hot and humid IEC 68-2-30

High Temp:55℃

Other standard according to IEC 68-2-30

10 C
Alternating salt fog IEC 68-2-52 IEC 68-2-52 Class 2 10 C
Molds experiment IEC 68-2-10

GB/T2423.16 Test method 1

IEC 68-2-10

28days



Any metal products cannot be showing signs of corrosion and other significant damage of the coating or plating

Product cannot appear any functional deterioration after testing

※Safety

1. meet IEC 60950-1/EN 60950-1

2. Hi-pot testing: 1500VDC/10mA/5s
