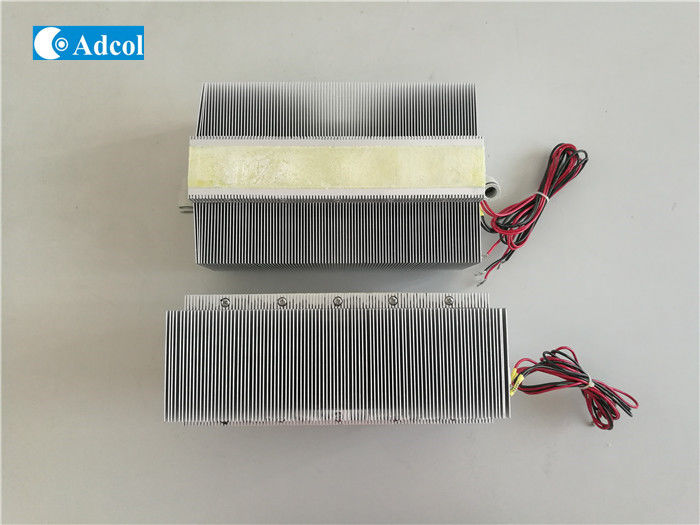

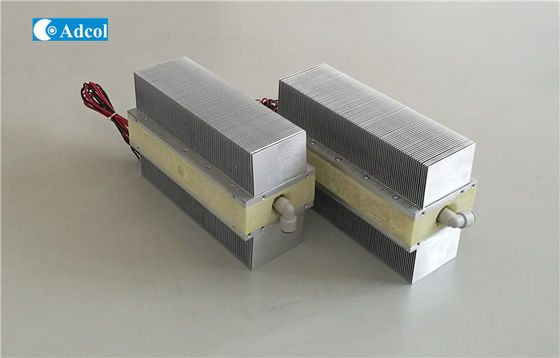

Thermoelectric Cooler Peltier Liquid Cooler High Efficient Solution

China Thermoelectric Cooler Peltier Liquid Cooler High Efficient Solution supplier
Thermoelectric Cooler Peltier Liquid Cooler High Efficient Solution supplier Thermoelectric Cooler Peltier Liquid Cooler High Efficient Solution supplier

Large Image :  Thermoelectric Cooler Peltier Liquid Cooler High Efficient Solution

Product Details:

Place of Origin: China
Brand Name: Adcol
Certification: ISO9001, CE
Model Number: ATL300-24VDC

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Solid carton packaging
Delivery Time: 3 - 4 weeks
Payment Terms: T/T , Paypal
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Voltage: 24VDC Vmax: 30VDC
Run Current: 14.0A Peak Current: 15.8A
Life Time: 50000hour Weight: 4.0kg

Thermoelectric Cooler Peltier Liquid Cooler High Efficient Solution​

Early 19th century scientists, Thomas Seebeck and Jean Peltier, first discovered the phenomena that are the basis for today’s thermoelectric industry. Seebeck found that if you placed a temperature gradient across the junctions of two dissimilar conductors, electrical current would flow. Peltier, on the other hand, learned that passing current through two dissimilar electrical conductors, caused heat to be either emitted or absorbed at the junction of the materials. It was only after mid-20th Century advancements in semiconductor technology, however, that practical applications for thermoelectric devices became feasible. With modern techniques, we can now produce thermoelectric “modules” that deliver efficient solid state heat-pumping for both cooling and heating; many of these units can also be used to generate DC power in special circumstances (e.g., conversion of waste heat). New and often elegant uses for thermoelectrics continue to be developed each day.


Model ATL300-24VDC
Cooling Method Liquid
Radiating method Air Force
Ambient temperature/humidity -10 to 50°C, 35 to 80% RH
(No condensation)
Cooling Capacity/Qmax 300W
Input Power 348W
Flow Rate 5-10PLM
Pressure Arange ≤100PSI
Port Optional
Run Current 14.0A
Peak Current 15.8A
Voltage 24VDC
Vmax 30VDC
Operation Temp -10~50℃
Weight 4.00 Kg
Life Time 50000 Hour
Tolerance 10%


Thermoelectric Cooler Peltier Liquid Cooler High Efficient Solution
