300W Air to Liquid thermoelectric Cooler designed for Industrial laser and Medical diagnostics

300W Air to Liquid thermoelectric Cooler designed for Industrial laser and Medical diagnostics
300W Air to Liquid thermoelectric Cooler designed for Industrial laser and Medical diagnostics 300W Air to Liquid thermoelectric Cooler designed for Industrial laser and Medical diagnostics 300W Air to Liquid thermoelectric Cooler designed for Industrial laser and Medical diagnostics 300W Air to Liquid thermoelectric Cooler designed for Industrial laser and Medical diagnostics

Large Image :  300W Air to Liquid thermoelectric Cooler designed for Industrial laser and Medical diagnostics

Product Details:
Place of Origin: CHINA
Brand Name: ADCOL
Certification: ISO9001 , CE
Model Number: ATL300-24VDC
Payment & Shipping Terms:
Minimum Order Quantity: 1EA
Price: Negotiation
Packaging Details: Solid carton packaging
Delivery Time: 3 - 4 weeks
Payment Terms: T/T , Paypal
Supply Ability: 500PCS
Contact Now

300W Air to Liquid thermoelectric Cooler designed for Industrial laser and Medical diagnostics

Description
P/N: ATL300-24VDC Cooling Method: Liquid Cool
Radiating Method: Air Force Ambient Temperature/humidity: -20 To 60°C
Cooling Capacity: 290W Outer Dim For Connector: R10
Material Of Exchanger: Al With Hard Oxidation Hot/Cold Side Fan Current: 0.9A / NA
TEM Nominal/Startup Current: 13.5A/17.5A Nominal/Max Voltage: 24/30 VDC
Overall Dimension: 260mm X 158mm X 160mm Noise: 52 DB
Weight: 5.5Kg Life Time: >=70,000 Hou
Tolerance: 10%

Adcol Peltier Thermal Cooler is your perfect choice for any Industrial, Commercial or Home application. Adcol is a well-known brand name from China and all of our Peltier Thermoelectric Modules have been certified with ISO9001 and CE.

The solid carton packaging ensures secure delivery and payment terms include T/T and Paypal. We guarantee a supply ability of 500pcs per month.

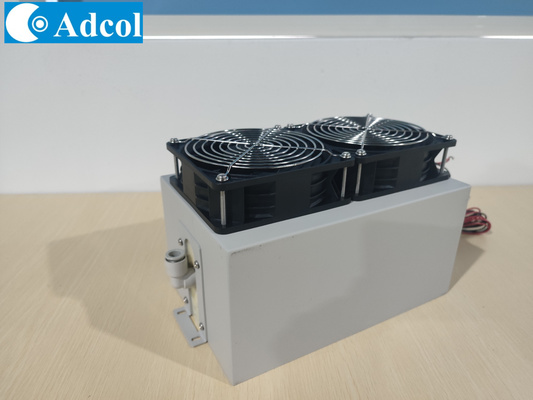

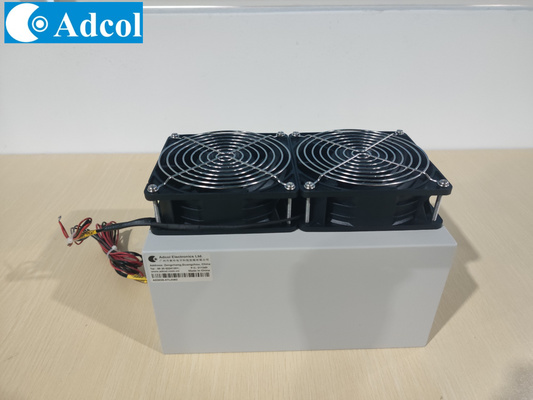

ATL300-24VDC  Air to Liquid thermoelectric Cooler Assembly



1.Product Introduction

The ATL300-24VDC Thermoelectric air liquid is designed for cooling objects via liquid to transfer heat.

Heat is absorbed through a liquid exchanger and dissipated by high density heatsink with fan.
It could remove up to 290W cooling, and is available in 24VDC configurations. Also it is virtually
maintenance-free, and can be mounted in any orientation, offering design flexibility with solid-state reliability.

300W Air to Liquid thermoelectric Cooler designed for Industrial laser and Medical diagnostics 0


2.Features



  • 290W capacity rated at ΔT = 0ºC,Tambient = 30°C
  • Refrigerant free - environmentally friendly
  • Wide operating temperature range of –20°C to +60°C
  • Shift between heating and cooling without using a heater
  • Reduced noise and vibration with no moving parts

3.Application

  • Analytical instrument
  • Medical diagnostics
  • Industrial laser
  • Medical laser


4. Performance Curve

300W Air to Liquid thermoelectric Cooler designed for Industrial laser and Medical diagnostics 1

5.Drawing
300W Air to Liquid thermoelectric Cooler designed for Industrial laser and Medical diagnostics 2

300W Air to Liquid thermoelectric Cooler designed for Industrial laser and Medical diagnostics 3300W Air to Liquid thermoelectric Cooler designed for Industrial laser and Medical diagnostics 4
