180W Unmanned Aerial Vehicle Air Conditioning System

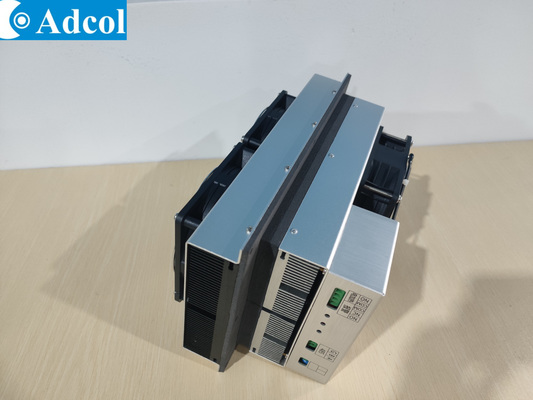

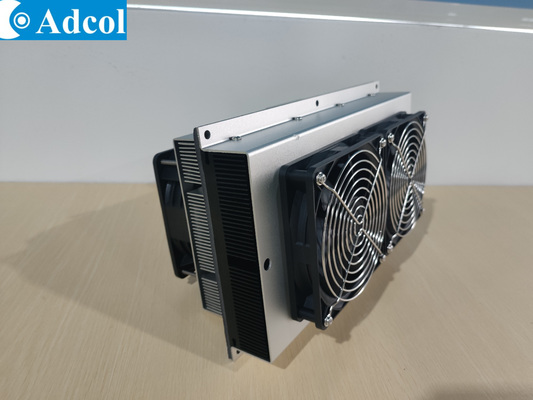

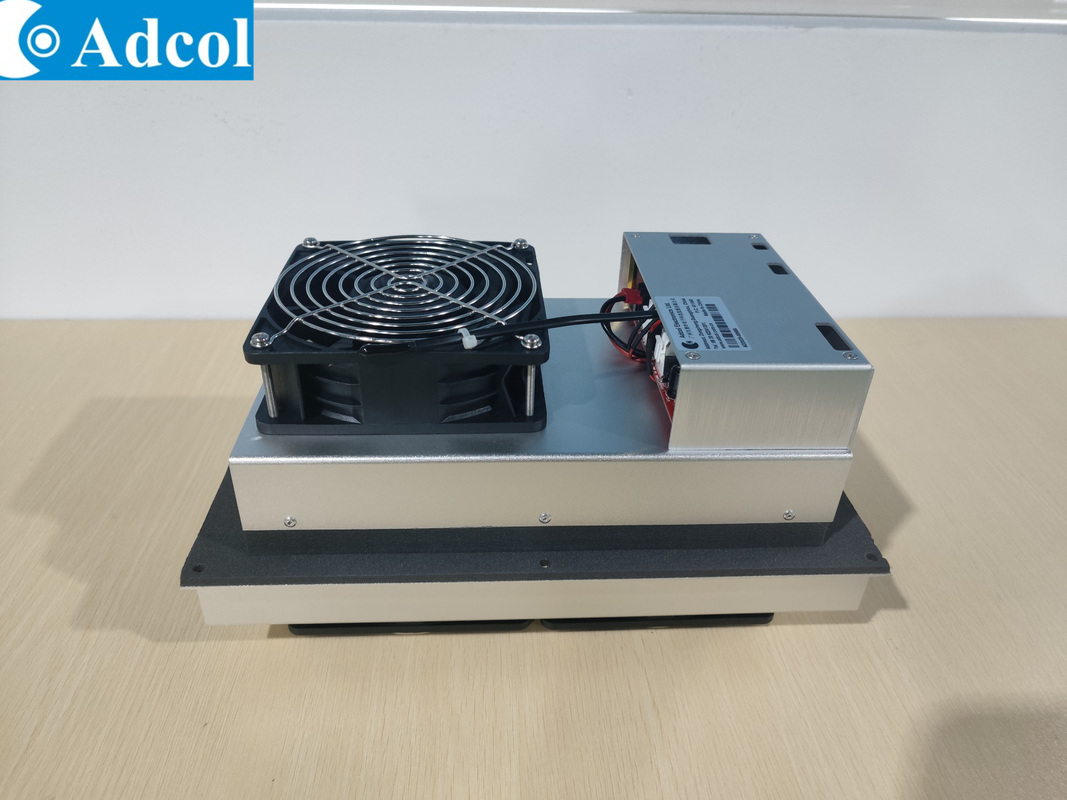

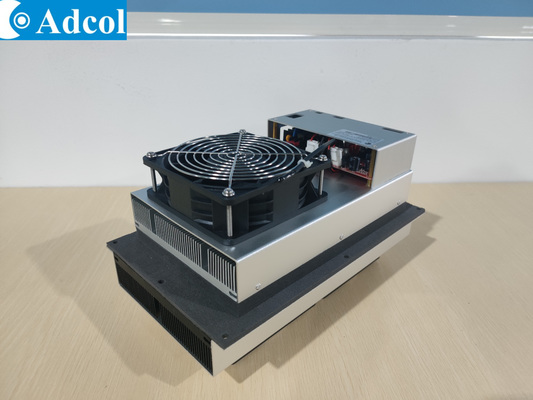

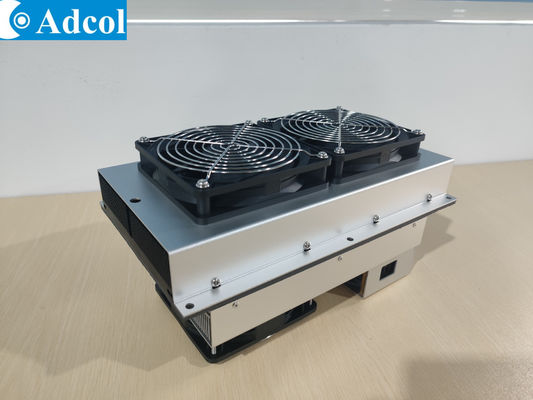

Large Image : 180W Unmanned Aerial Vehicle Air Conditioning System

Product Details:

Place of Origin:	CHINA
Brand Name:	Adcol
Certification:	ISO9001 , CE
Model Number:	ATA180-24VDC

Payment & Shipping Terms:

Minimum Order Quantity:	1EA
Price:	Negotiation
Packaging Details:	Solid carton packaging
Delivery Time:	3 - 4 weeks
Payment Terms:	T/T , Paypal
Supply Ability:	500PCS

Contact Now

180W Unmanned Aerial Vehicle Air Conditioning System

Description

P/N:	ATA180-24VDC	Cooling Method:	Air Cool
Radiating Method:	Air Forc	Ambient Temperature/humidity:	-20 To 60°C
Cooling Capacity:	180W	Input Power:	330W
Heating Capacity:	520W	Hot/Cold Side Fan Current:	0.60/0.35 A
TEM Nominal/Startup Current:	12.5/14.8A	Nominal/Max Voltage:	24/27 VDC
Weight:	7.5KG	Life Time:	>=70,000 Hours
Noise:	55 DB	Tolerance:	10%
Highlight:	180W UAV air conditioning system , thermoelectric air conditioner for drones , UAV cooling system with warranty

Adcol Peltier Thermal Cooler is your perfect choice for any Industrial, Commercial or Home application. Adcol is a well-known brand name from China and all of our Peltier Thermoelectric Modules have been certified with ISO9001 and CE.

The solid carton packaging ensures secure delivery and payment terms include T/T and Paypal. We guarantee a supply ability of 500pcs per month.

180W Unmanned Aerial Vehicle Air Conditioning System

1.Product Introduction

The ATA180-24 is designed for Unmanned Aerial Vehicle Air Conditioning System

It can maintain ambient temperatures while removing up to about 180W. This model is available

in 24VDC configurations. This airconditioner is virtually maintenance-free, with no filters ambient

to change, and it can be mounted in any orientation, offering design flexibility with solid-state reliability.

2.Features

About 180W capacity rated at ΔT = 0ºC,Tambient = 30°C
Refrigerant free - environmentally friendly
Wide operating temperature range of –20°C to +60°C
Shift between heating and cooling without using a heater
Reduced noise and vibration with no moving parts

3.Application

Outdoor enclosures
Outdoor/Indoor Kiosks and display
Battery Cabinet
Food/Consumer Refrigerator

4.Performance Curve

5.Design drawing
