300W Air to air thermoelectric Cooler Assembly For Outdoor/Indoor Kiosks and display and Food/Consumer Refrigerator

Adcol Peltier Thermal Cooler is your perfect choice for any Industrial, Commercial or Home application. Adcol is a well-known brand name from China and all of our Peltier Thermoelectric Modules have been certified with ISO9001 and CE.

The solid carton packaging ensures secure delivery and payment terms include T/T and Paypal. We guarantee a supply ability of 500pcs per month.

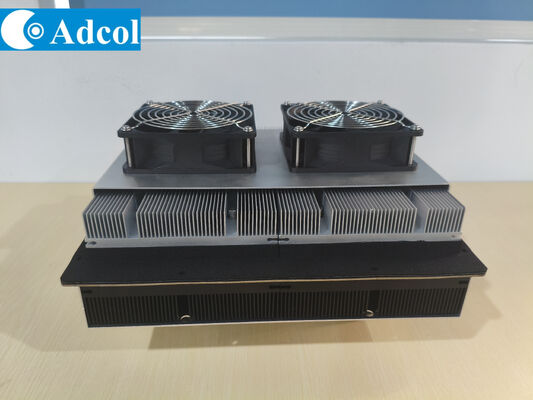

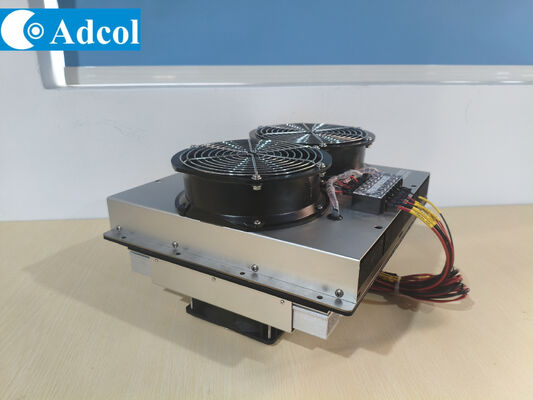

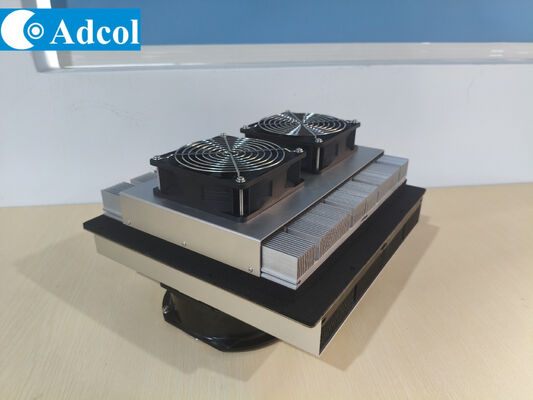

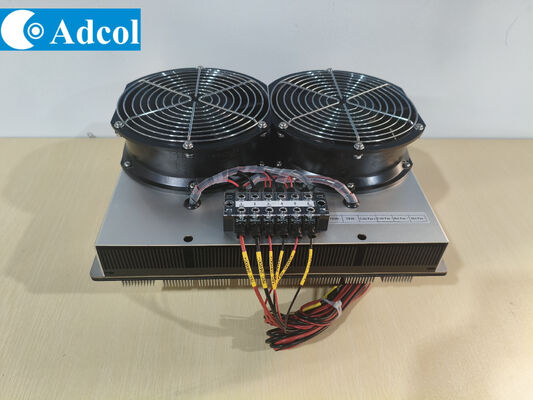

ATA300-24VDC  Air to air thermoelectric Cooler Assembly

1.Product Introduction

The ATA300-24 Thermoelectric air conditioner is designed for electronic cabinets and environmental

chambers. It can maintain ambient temperatures while removing up to 300W. This model is available

in 24VDC configurations. This air conditioner is virtually maintenance-free, with no filters ambient

to change, and it can be mounted in any orientation, offering design flexibility with solid-state reliability.

2.Features

1. 300W capacity rated at ΔT = 0ºC,Tambient = 30°C
2. Refrigerant free - environmentally friendly
3. Wide operating temperature range of –10°C to +70°C
4. Shift between heating and cooling without using a heater
5. Reduced noise and vibration with no moving parts

3.Application

1. Outdoor enclosures
2. Outdoor/Indoor Kiosks and display
3. Battery Cabinet
4. Food/Consumer Refrigerator

4.Design drawing
