35W Peltier Thermoelectric Dehumidifier Portable Single Channel Unit with SUS 304 Heat Exchanger and Precise Temperature Control for Gas Analyzer

Large Image : 35W Peltier Thermoelectric Dehumidifier Portable Single Channel Unit with SUS 304 Heat Exchanger and Precise Temperature Control for Gas Analyzer

Product Details:

Place of Origin:	China
Brand Name:	Adcol
Certification:	ISO9001 , CE
Model Number:	ATD035-01

Payment & Shipping Terms:

Minimum Order Quantity:	1EA
Price:	Negotiation
Packaging Details:	Solid carton packaging
Delivery Time:	3 - 4 weeks
Payment Terms:	T/T , Paypal
Supply Ability:	500pcs per month

Contact Now

35W Peltier Thermoelectric Dehumidifier Portable Single Channel Unit with SUS 304 Heat Exchanger and Precise Temperature Control for Gas Analyzer

Description

Model:	ATD035-01	Cooling Capacity:	36W
Heat Dissipation:	Air Force	Input Voltage:	100-240VAC 50/60 Hz
Input Power:	50W	Temp Sensor:	PT100,3-Wires
Temp Control:	1-3℃	Control Accuracy:	±0.2℃
Inlet Gas Temp:	2-80℃	Run Temp:	0-35℃
Run Humidity:	≤85% Rh	Temp Protection:	90℃
Weight:	2.5kg

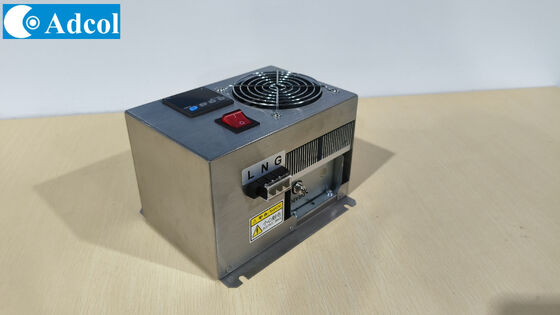

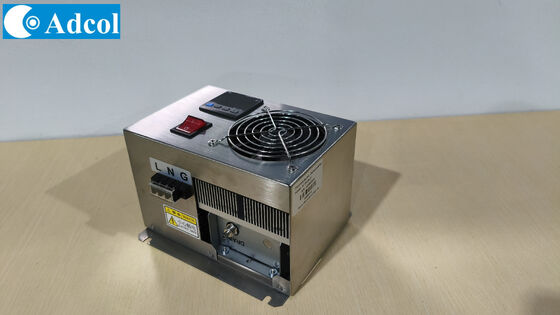

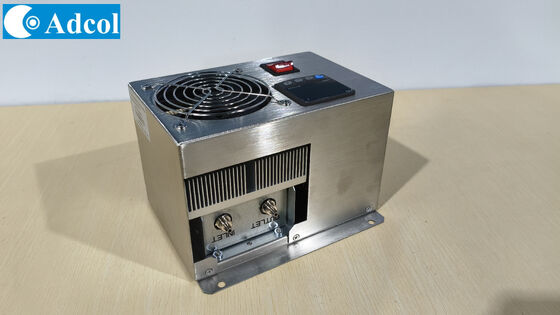

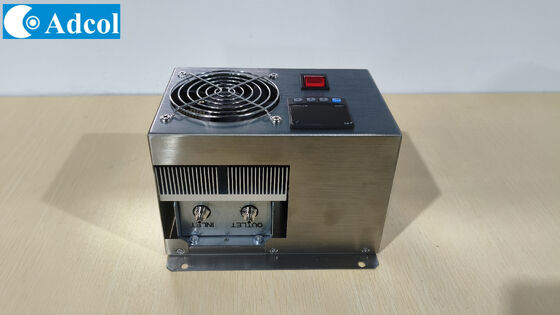

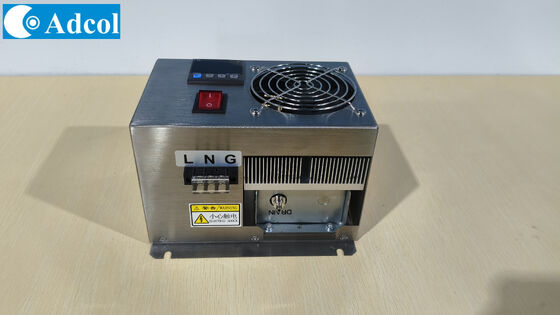

35W Single Channel thermoelectric dehumidifier

1.Product Introduction

Adcol Single Channel thermoelectric dehumidifier uses high quality thermoelectric modules and

SUS 304 heat exchanger. It can be widely used for pre-processing stage of the gas analyzers

2.Feature

1.Precise Temperature Control

2.Refrigerant free - environmentally friendly

3.Reduced noise and vibration witno moving parts

4.Portable, easy to carry

5.High Reliability

3.Installation:

The dehumidifier must be installed on the wall or the plate which is perpendicular to ground.

Used 4 pcs M6 screws with tooth washer

4.Design drawing
