50W 12VDC Thermoelectric Air Conditioner Designed for in Outdoor and Indoor Kiosks with Heat Dissipation and Low Noise Operation

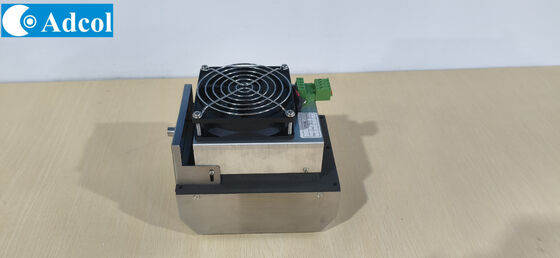

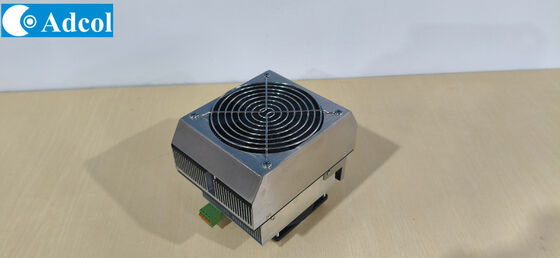

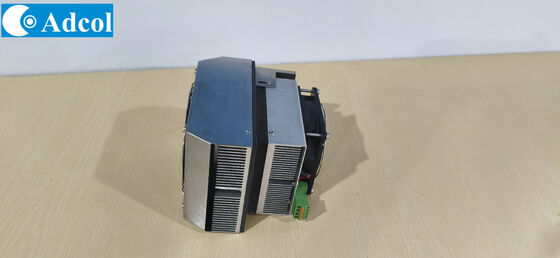

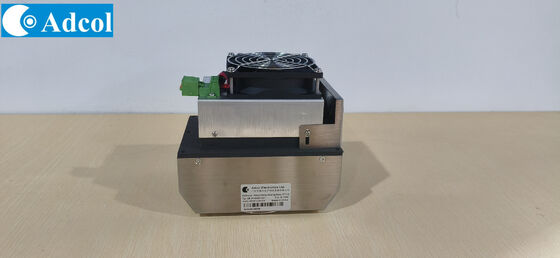

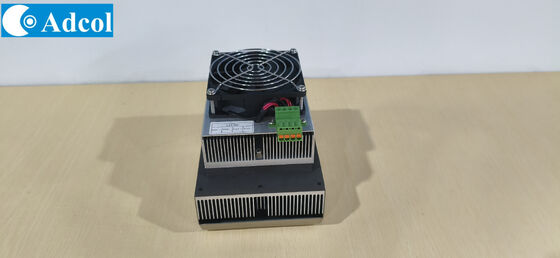

ATA050-12VDC Air to air thermoelectric Cooler Assembly

2.Introduction
The ATA050-12VDC Thermoelectric air conditioner is designed forelectronic cabinets and

environmental chambers.lt canmaintain ambient temperatures while removing up to 50W.

 This airconditioner is virtually maintenance-free, with no filtersambient to change, and it

can be mounted in any orientation.offering design flexibility with solid-state reliability.

3.Features

• 50W capacity rated at T = 0°C,Tambient= 30°℃
• Refrigerant free-environmentally friendly
• Wide operating temperature range of-20°Cto +60°℃
• Shift between heating and cooling without using a heater
• Reduced noise and vibration with no moving parts

4.Application

• Outdoor encosures
• Outdoor/Indoor Kiosks and display
• Battery Cabinet
• Food/Consumer Refrigerator

5.Performance Curve
