Biotech 800W 24VDC Programmable Peltier Thermoelectric Dehumidifier for Automated Gene Amplification

Adcol Peltier Thermal Cooler is your perfect choice for any Industrial, Commercial or Home application. Adcol is a well-known brand name from China and all of our Peltier Thermoelectric Modules have been certified with ISO9001 and CE.

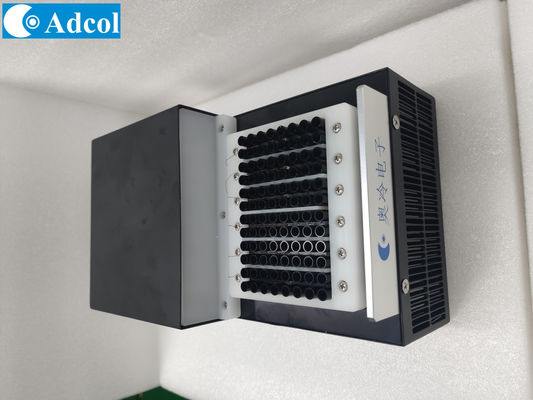

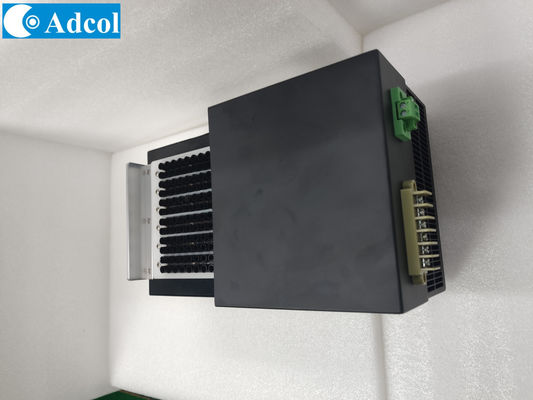

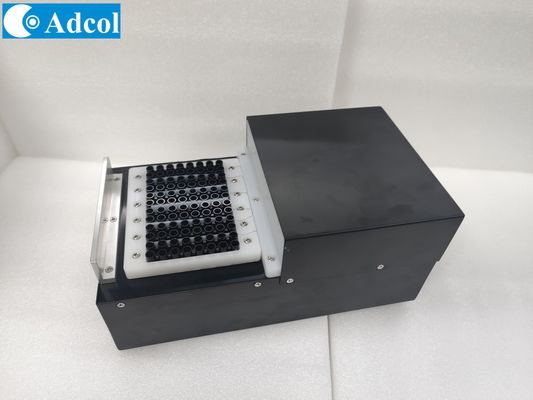

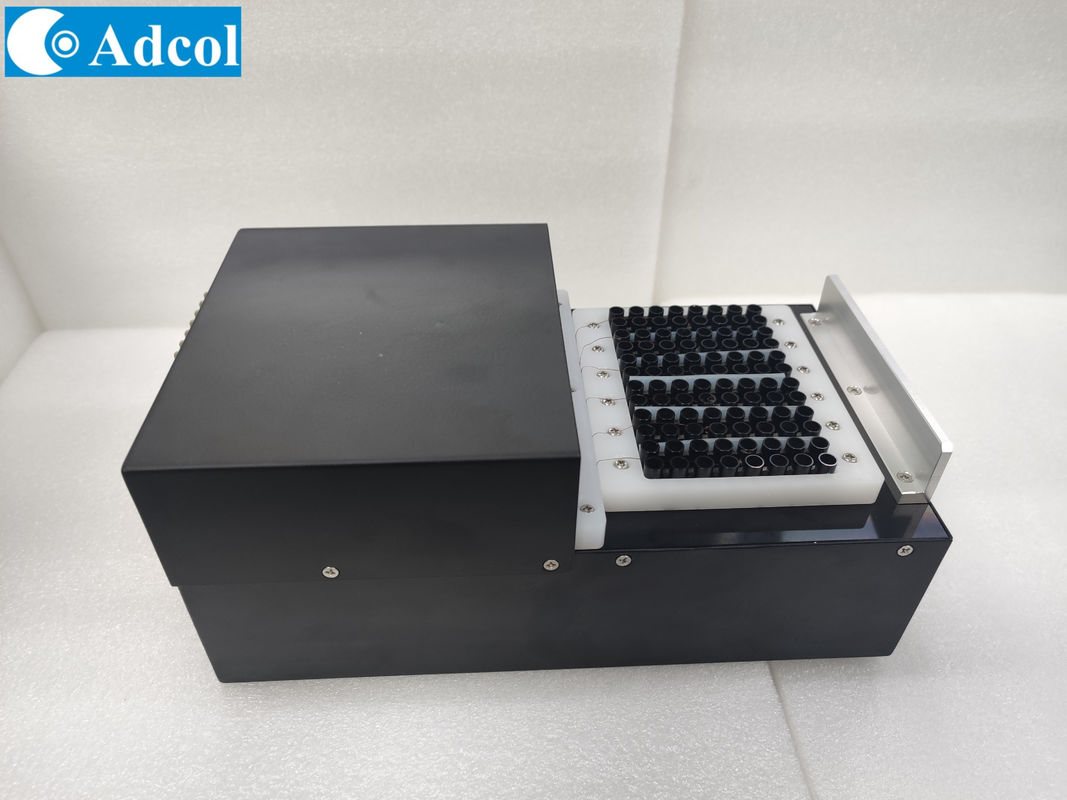

800W 24VDC PROGRAMMABLE THERMOCYCLER

1.Peculiarity

• Adopt high performance cooling sheet, quiet and reliable
• Flexible and convenient installation, suitable for a variety of platforms
• The rise and fall rate can be set freely
• Programmable, custom cycle flow
• Compatible with a variety of communication interfaces, easy connection

2.Applications

•  Automated gene amplification
• Experimental flow of heating and cooling cycles
• NGS library preparation
• Sample storage
• Incubation

3.Technical Specifications

• Set the temperature range: 4.0~105.0℃
• Average rate of temperature increase :5.0C/S(55-105°C)
• Average cooling rate :4.5°C/S(55-105°C)
• Maximum temperature change rate :≥10°C/S
• Control accuracy: ±0.2 ℃
• Temperature uniformity: ±0.3℃
• Sample size: 96 x 0.1ml 96 x 0.2ml
• Maximum input power: 800W,24VC
• Weight :7.0 kg

4.Host parameters

• Communication interface Ethernet: R145,USB,RS-485
• Input power supply :100-240VAC,50-60Hz,≥1000W
• Operation temperature/humidity: -20 to 50'C, 35 to 80% RH (No condensation)
• Storage temperature/humidity: -30 to 90°C, 35 to 90% RH (No condensation)

5.Thermal cover parameters

• Thermal cover temperature range :37-110°C
• Thermal cover movement method :Slide back and forth
• Thermal cap sealing method :Removable silicone soft board

6.Drawing
