200W Double Channels Thermoelectric Dehumidifier for Automated measuring systems and analyzers for pollution gas

Large Image : 200W Double Channels Thermoelectric Dehumidifier for Automated measuring systems and analyzers for pollution gas

Product Details:

Place of Origin:	CHINA
Brand Name:	Adcol
Certification:	ISO9001 , CE
Model Number:	ATD200-01

Payment & Shipping Terms:

Minimum Order Quantity:	1EA
Price:	Negotiation
Packaging Details:	Solid carton packaging
Delivery Time:	3 - 4 weeks
Payment Terms:	T/T , Paypal
Supply Ability:	500PCS

Contact Now

200W Double Channels Thermoelectric Dehumidifier for Automated measuring systems and analyzers for pollution gas

Description

P/N:	ATD200-01	No. Of Channels:	Double
Cooling Method:	Thermoelectric Cooling	Heat Radiation Method:	Forced Air Cooling,with Built-in Fan
Joint:	Rc 1/4	Power Input:	200W
Overall Dimensions(mm):	W220D167H255	Weight:	6KG
Frame Material:	Steel, White Paint，SUS	Outside Air Temperature:	0-45℃
Inlet Gas Temperature:	0-45℃	Inlet Gas Dew Point:	0-45℃
Outlet Gas Dew Point:	1～3℃	Short-term Ripple:	+- 0.1℃
Control Method:	1-3 ℃	Setting Accuracy:	1.0℃ +- 0.5℃
Control Accuracy:	+- 0.1℃

Adcol Peltier Thermal Cooler is your perfect choice for any Industrial, Commercial or Home application. Adcol is a well-known brand name from China and all of our Peltier Thermoelectric Modules have been certified with ISO9001 and CE.

The solid carton packaging ensures secure delivery and payment terms include T/T and Paypal. We guarantee a supply ability of 500pcs per month.

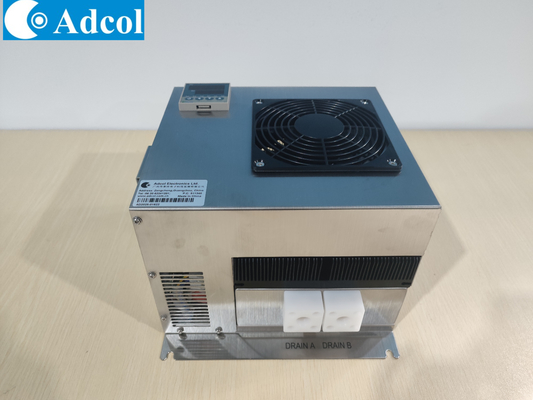

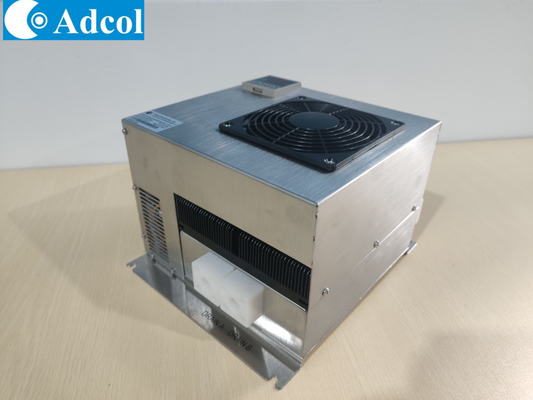

200W Double Channels Thermoelectric Dehumidifier

1.Product Introduction

Currently we provide 200W standard dehumidifier with high performance thermoelectric

modules. It can cool the gas and remove the moisture quickly and effectively and can be

indispensable at the pre-processing stage for various gas analyzers

200W Double Channels Thermoelectric Dehumidifier for Automated measuring systems and analyzers for pollution gas 0

2. Typical Application

Automated measuring systems and analyzers for pollution gas

C- Thermoelectric Dehumidifier

Online multi-component gas analyzer

3.Current Double Channel Mode Display

4.Design for the Application of Hydrogen Generators

(1):Use the whole stainless steel tubing to contact with the gas,and make the

heat exchanger with sus tubing + Graphite Block

(2):Keep 2 channels contected in series or divide the gas into 2 halves and

flow them through the 2 channels at the same time.

(3):All the parts(including the electric components and mechanical parts)

are same as our current ATD200-24 except for the Graphite block and tubings.

5.Design drawings
