250W Air-to-Air Peltier Thermoelectric Cooler Assembly for Indoor & Outdoor Kiosks, Displays and Consumer Food Refrigerators

Adcol Peltier Thermal Cooler is your perfect choice for any Industrial, Commercial or Home application. Adcol is a well-known brand name from China and all of our Peltier Thermoelectric Modules have been certified with ISO9001 and CE.

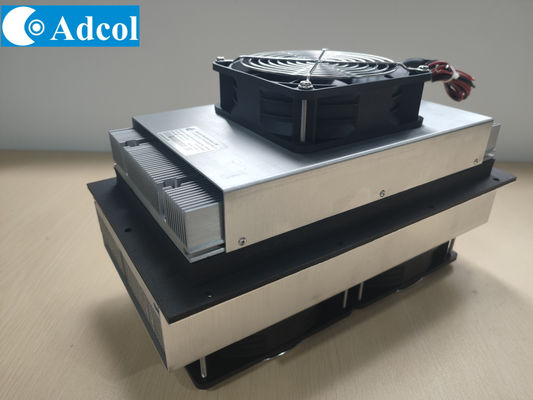

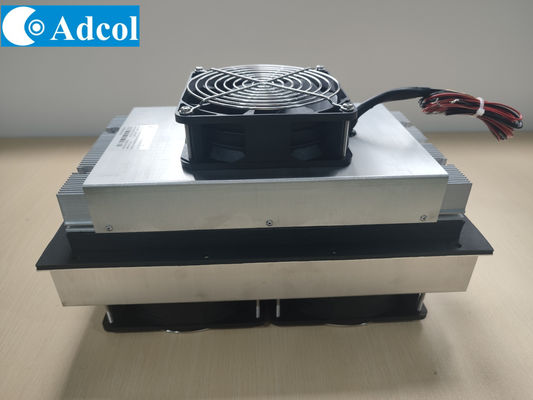

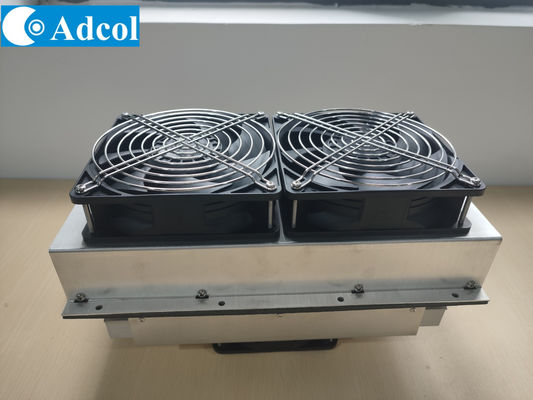

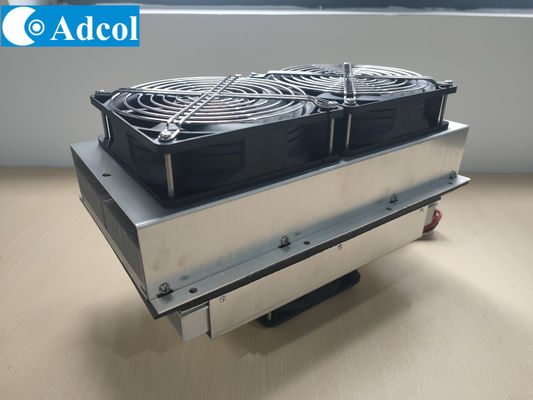

ATA250-24-00 Air to air thermoelectric Cooler Assembly

1.Product Introduction

The ATA250-24 Thermoelectric air conditioner is designed for electronic cabinets and environmental chambers.

It can maintain ambient temperatures while removing up to 240W. This model is availablein 24VDC configurations.

This air conditioner is virtually maintenance-free, with no filters ambient to change, and it can be mounted in

any orientation, offering design flexibility with solid-state reliability.

2.Features

1. 240W capacity rated at ΔT = 0ºC,Tambient = 30°C
2. Refrigerant free - environmentally friendly
3. Wide operating temperature range of –20°C to +60°C
4. Shift between heating and cooling without using a heater
5. Reduced noise and vibration with no moving parts

3.Application

1. Outdoor enclosures
2. Outdoor/Indoor Kiosks and display
3. Battery Cabinet
4. Food/Consumer Refrigerator

4.Performance Curve

5.Design drawing
