200W Air to Liquid thermoelectric cooler are designed for electronic liquid cooling.

Adcol Peltier Thermal Cooler is your perfect choice for any Industrial, Commercial or Home application. Adcol is a well-known brand name from China and all of our Peltier Thermoelectric Modules have been certified with ISO9001 and CE.

The solid carton packaging ensures secure delivery and payment terms include T/T and Paypal. We guarantee a supply ability of 500pcs per month.

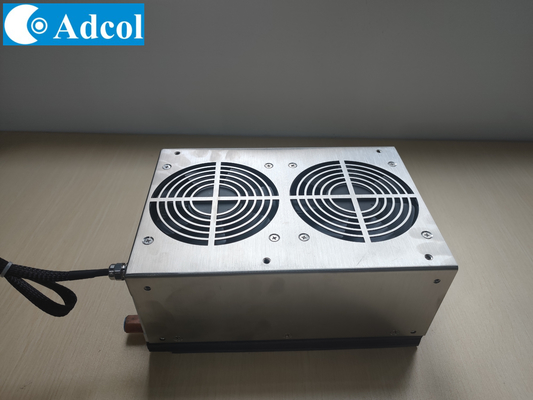

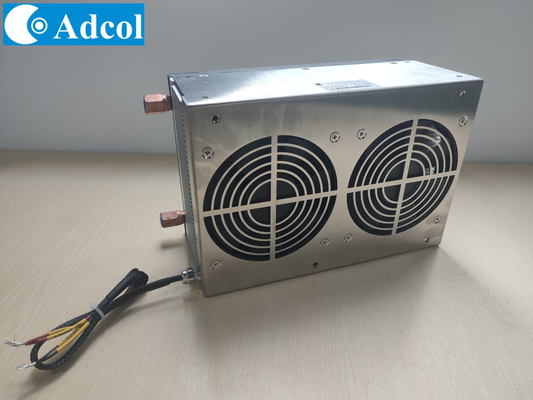

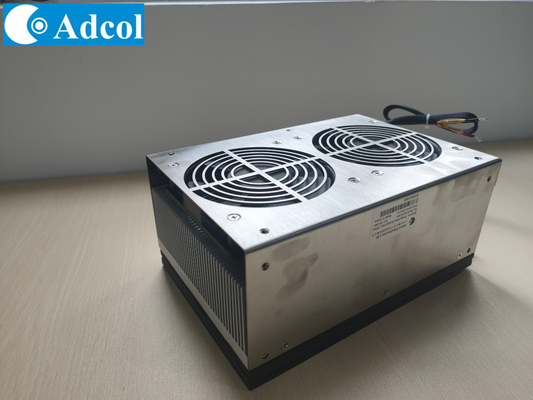

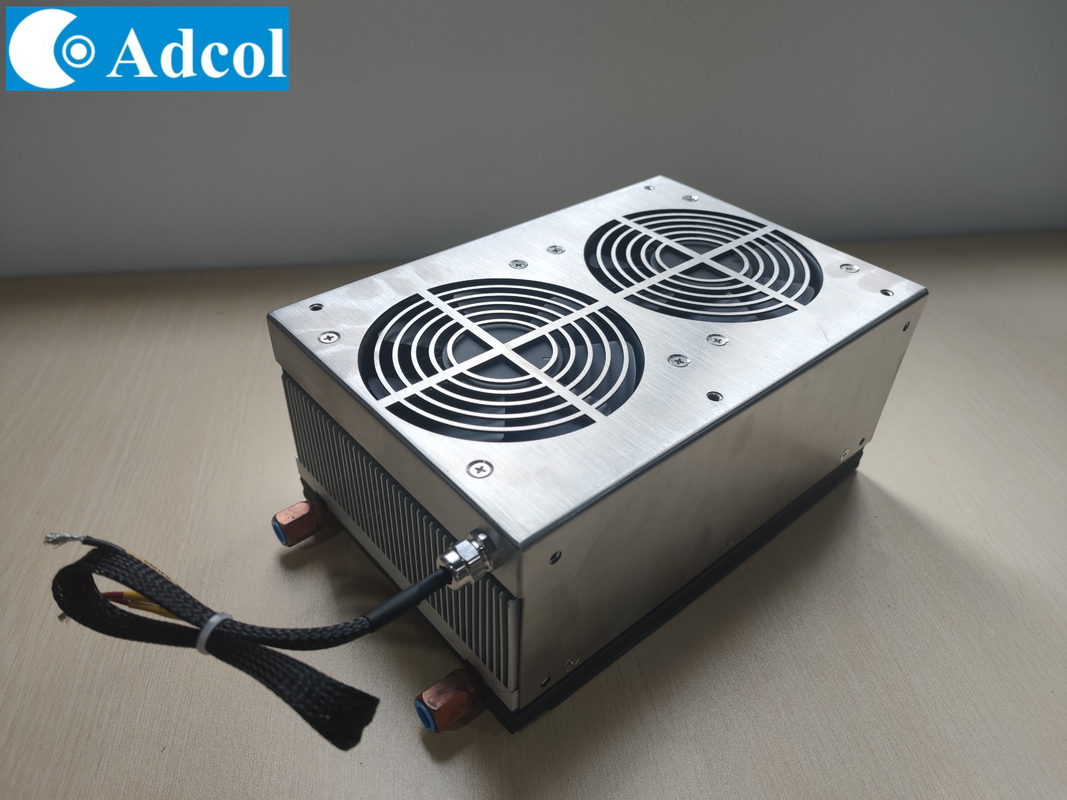

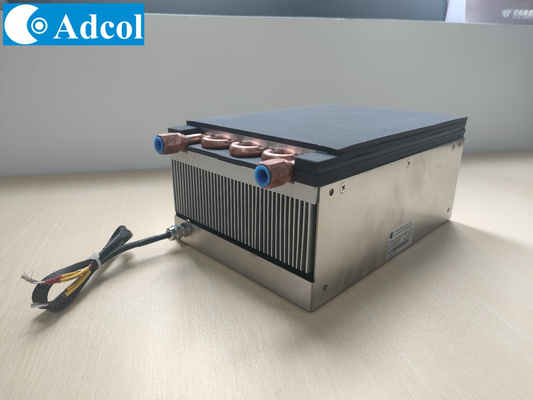

ATL200-24VDC Air to Liquid thermoelectric Cooler Assembly

1.Product Introduction

​​​​(1).Thermoelectric air liquid is designed for cooling objects via liquid to transfer heat.

Heat is absorbed through a liquidexchanger and dissipated by high density heatsink with fan.

(2).The ATL200-24 Thermoelectric air to Liquid aredesigned for electronic liquid cooling.

They cancool to 72Fbelow ambient or maintain ambienttemperatures while removing up

to 200W.

(3).Also it is virtually maintenance-free, and can bemounted in any orientation, offering design

flexibility  with solid-state reliability

2.Features

(1)200W capacity rated at ΔT = 0°C,Tambient= 30°℃

(2)Refrigerant free-environmentally friendly

(3)Wide operating temperature range of -20°C to +60°℃

(4)Shift between heating and cooling without using a heater

(5)Reduced noise and vibration with no moving parts

3.Application

(1)Analytical instrument
(2)Medical diagnostics
(3)Industrial laser
(4)Medical laser
