35W Thermoelectric Dehumidifier used for pre-processing stage of the gas analyzers

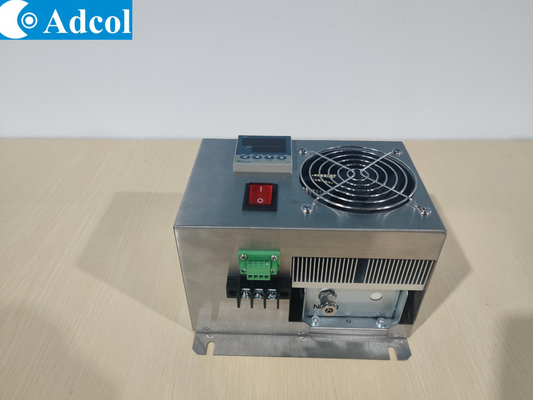

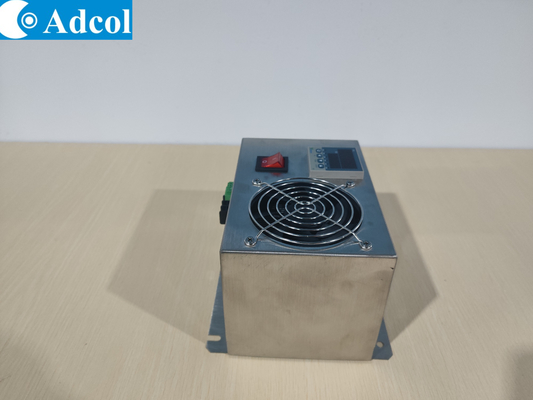

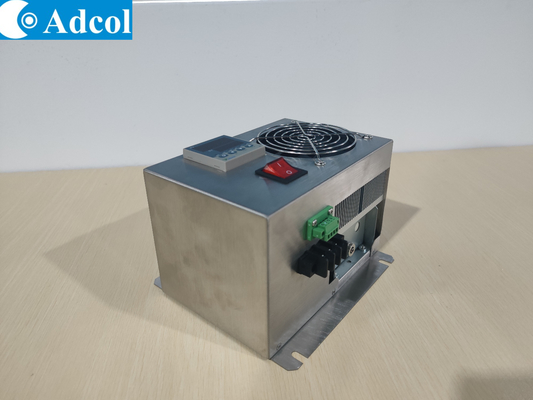

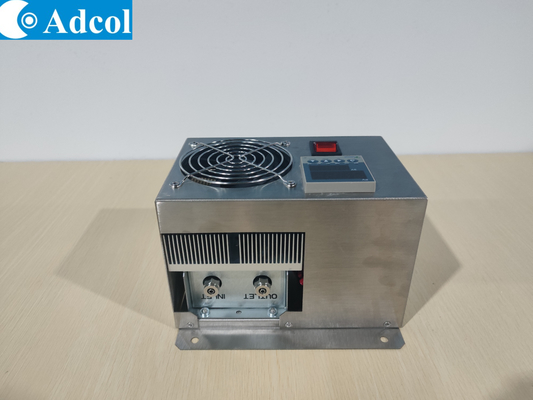

Large Image : 35W Thermoelectric Dehumidifier used for pre-processing stage of the gas analyzers

Product Details:

Place of Origin:	CHINA
Brand Name:	Adcol
Certification:	ISO9001 , CE
Model Number:	ATD035-01

Payment & Shipping Terms:

Minimum Order Quantity:	1EA
Price:	Negotiation
Packaging Details:	Solid carton packaging
Delivery Time:	3 - 4 weeks
Payment Terms:	T/T , Paypal
Supply Ability:	500PCS

Contact Now

35W Thermoelectric Dehumidifier used for pre-processing stage of the gas analyzers

Description

P/N:	ATD035-01	Cooling Capacity:	36W
Heat Dissipation:	Air Force	Input Voltage:	100-240VAC 50/60 Hz
Input Power:	50W	Temp Sensor:	PT100,3-Wires
Temp Contro:	1-3℃	Control Accuracy:	±0.2℃
Inlet Gas Temp:	2-80℃	Run Temp:	0-35℃
Run Humidity:	≤85% Rh	Temp Protection:	90℃

Adcol Peltier Thermal Cooler is your perfect choice for any Industrial, Commercial or Home application.

Adcol is a well-known brand name from China and all of our Peltier Thermoelectric Modules have been

certified with ISO9001 and CE.

The solid carton packaging ensures secure delivery and payment terms include T/T and Paypal. We

guarantee a supply ability of 500pcs per month.

35W Thermoelectric Dehumidifier

1.Product Introduction

Adcol Single Channel thermoelectric dehumidifier uses high quality thermoelectric modules and

SUS 304 heat exchanger. It can be widely used for pre-processing stage of the gas analyzers

2.Feature

Precise Temperature Control
Refrigerant free - environmentally friendly
Reduced noise and vibration with
No moving parts
Portable, easy to carry
High Reliability

3.Dimension(mm)

35W Thermoelectric Dehumidifier used for pre-processing stage of the gas analyzers 0

4.Installation:

The dehumidifier must be installed on the wall or the plate which is perpendicular to ground.

Used 4 pcs M6 screws with tooth washer

5.Drawing
