Product Details:
|
| Imax: | 6.0A | Qmax: | 21.5W |
|---|---|---|---|
| Vmax: | 5.6V | Tmax: | 67℃ |
| Length: | 25mm | Width: | 25mm |
| High Light: | peltier cooling module,teg peltier module |
||

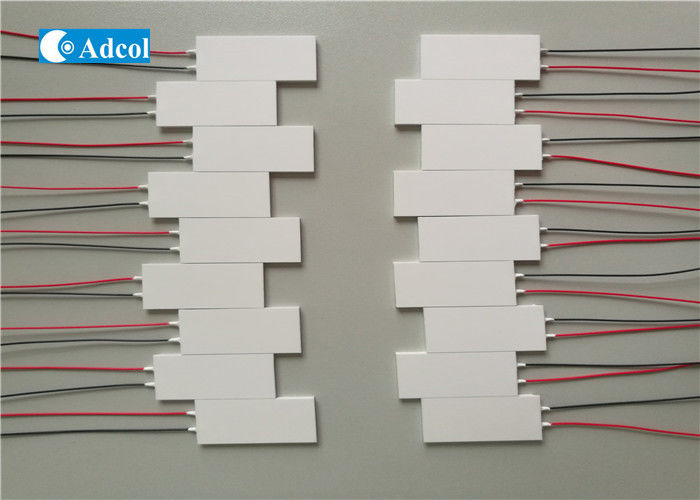

Industrial Peltier Thermoelectric Modules 25mm Length 25mm Width
Thermoelectric Benefits
The choice of a cooling technology will depend heavily on the unique requirements of any given application, however, thermoelectric (TE) coolers offer several distinct advantages over other technologies:
• TE coolers have no moving parts and, therefore, need substantially less maintenance.
• Life-testing has shown the capability of TE devices to exceed 100,000 hours of steady state operation.
| Model | TEC1-4906U | |
| Imax(A) | 6 | |
| Qmax(W) | 21.5 | |
| Vmax(V) | 5.6 | |
| Th=25℃ Tmax(℃) | 67 | |
| Dimension (mm) |
A | 25 |
| B | 25 | |
| C | 25 | |
| D | 3.8 | |
