Product Details:
|
| Imax: | 6.0A | Qmax: | 2.8W |
|---|---|---|---|
| Vmax: | 0.85V | Tmax: | 67℃ |
| Length: | 10mm | Width: | 10mm |
| Highlight: | thermoelectric cooler module,teg peltier module |
||

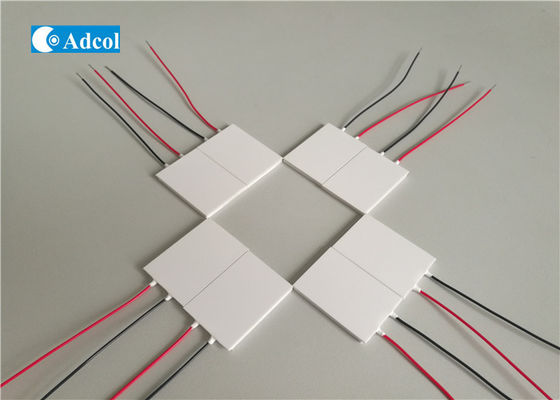

2.8W Qmax Peltier Thermoelectric Modules / Peltier Plate Module
Definitions:
Imax Input current resulting in greatest △T (△Tmax) [Amps]
N Number of thermocouples (p-and n-type pairs)
QmaxMaximum amount of heat that can be absorbed at cold face (occurs at I=Imax, △T = 0°C) [Watts]
ThTemperature of the TEC hot face during operation [°C]
TcTemperature of the TEC cold face during operation [°C]
△TmaxMaximum temperature difference a TEC can achieve (occurs atI=Imax, Qc = 0) [°C]
VmaxVoltage at △T (△Tmax) [Volts]
| Model | TEC1-0706U | |
| Imax(A) | 6 | |
| Qmax(W) | 2.8 | |
| Vmax(V) | 0.85 | |
| Th=25℃ Tmax(℃) | 67 | |
| Dimension (mm) |
A | 10 |
| B | 10 | |
| C | 10 | |
| D | 3.8 | |
