Semiconductor Tec Peltier Modules , Peltier Thermoelectric Cooler Module

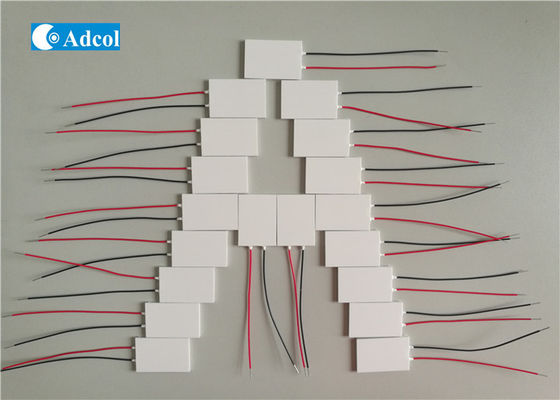

Large Image : Semiconductor Tec Peltier Modules , Peltier Thermoelectric Cooler Module

Product Details:

Place of Origin:	China
Brand Name:	Adcol
Certification:	ISO9001 , CE
Model Number:	TEC1-1105T

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiation
Packaging Details:	Solid carton packaging
Delivery Time:	3 - 4 Weeks
Payment Terms:	T/T , Paypal
Supply Ability:	500pcs per month

Contact Now

Semiconductor Tec Peltier Modules , Peltier Thermoelectric Cooler Module

Description

Imax:	5.0A	Qmax:	3.7W
Vmax:	1.33V	Tmax:	67℃
Length:	15mm	Width:	10mm
High Light:	thermoelectric cooler module , peltier cooling module

Semiconductor Tec Peltier Modules , Peltier Thermoelectric Cooler Module

Constructing a TEC

• A typical single stage cooler consists of two ceramic plates with an array of these p-type and n-type semiconductor materials (bismuth telluride alloys) between the plates. These multiple elements of semiconductor materials are connected electrically in series and thermally in parallel.

• When a positive DC voltage is applied as shown, electrons pass from the p-type to the n-type element, and the cold-side temperature decreases as the electron current absorbs heat, until equilibrium is reached. The heat absorption (cooling) is proportional to the current and the number of thermoelectric couples. This heat is transferred to the hot side of the cooler, where it is dissipated into the heat sink and surrounding environment.

Model		TEC1-1105T
Imax(A)		5
Qmax(W)		3.7
Vmax(V)		1.33
Tmax(℃)		67
Dimension (mm)	A	10
	B	15
	C	10
	D	4.1
