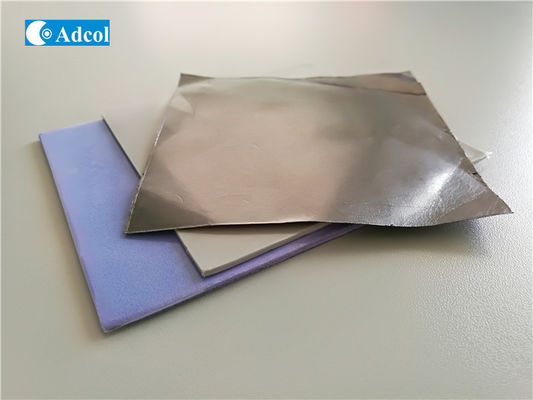

Thermal Conductive Silicone Heatsink Thermal Pad For Gap Filling

Thermal Conductive Silicone Heatsink  Thermal Pad For Gap Filling
Thermal Conductive Silicone Heatsink  Thermal Pad For Gap Filling Thermal Conductive Silicone Heatsink  Thermal Pad For Gap Filling

Large Image :  Thermal Conductive Silicone Heatsink Thermal Pad For Gap Filling

Product Details:
Place of Origin: China
Brand Name: Adcol
Certification: ISO9001, CE
Model Number: A-gaphite 810
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Negotiation
Packaging Details: Solid carton packaging
Delivery Time: 3 - 4 weeks
Payment Terms: T/T , Paypal
Supply Ability: 100kpcs per month

Thermal Conductive Silicone Heatsink Thermal Pad For Gap Filling

Description
Color: Pewter Thickness: 0.010” (0.25mm)
Thickness Tolerance: ±0.001” (±0.025mm) Density: 2.20 G / Cc
Hardness: 85 Shore A Tensile Strength: 650 Psi
High Light:

thermal interface material

,

thermal pad material

Thermally Interface Pad Thermal Conductive Rubber Thermal Conductive Material​

​Pad Used where electrical isolation is not required, A-gaphite 800 is ideal for where electrical contact and thermal transfer are desired. Its unique grain-oriented, plate-like structure provides a high thermal conductivity of 240 W/mK in the XY plane and 5 W/mK through the z-axis.. A-gaphite 800 can be supplied in 12” x 18” (305mm x 457mm) or 18” x 24” (457mm x 610mm) sheets, rolls or die-cut to specific configurations. It is also available with proprietary pressure sensitive adhesive on one side. This adhesive coating is the thinnest available, minimizing any impact on thermal performance.

Feature
• High thermal conductivity of 5 W/mK in Z axis and 240 W/mK in the X-Y axis
• >98% graphite
• Low thermal resistance
• Thicknesses of 0.005”, 0.010” and 0.020” (0.125mm, 0.25mm, and 0.50mm)

Application
• Power conversion equipment
• Power supplies
• Large telecommunications switching hardware
• Notebook computers
• Where electrical grounding is required with good thermal conductivity


Item A-gaphite 810
Construction & Composition Flexible Graphite
Color Pewter
Thickness Range 0.010” (0.25mm)
Thickness Tolerance ±0.001”( ±0.025mm)
Density (g/cc) 2.2
Hardness 85 Shore A
Tensile Strength 650 psi
Outgassing TML 0.15%
Outgassing CVCM 0.09%
UL Flammability Rating 94 V0
Temperature Range -240°C to 300°C
Thermal Conductivity - Z Axis 5 W/mK
Thermal Conductivity - XY Axis 240 W/mK
Thermal resistance @ 100 psi 0.10°C - in2/W
Thermal resistance @ 681 Kpa 0.66°C - cm2/W
Volume resistivity (In-Plane) 11 x 10.5 ohm - cm
