ATL400-24VDC Air to Liquid thermoelectric Cooler For Industrial laser and Medical laser

Large Image : ATL400-24VDC Air to Liquid thermoelectric Cooler For Industrial laser and Medical laser

Product Details:

Place of Origin:	China
Brand Name:	Adcol
Certification:	ISO9001 , CE
Model Number:	ATL400-24

Payment & Shipping Terms:

Minimum Order Quantity:	1EA
Price:	Negotiation
Packaging Details:	Solid carton packaging
Delivery Time:	3 - 4 weeks
Payment Terms:	T/T , Paypal
Supply Ability:	500pcs per month

Contact Now

ATL400-24VDC Air to Liquid thermoelectric Cooler For Industrial laser and Medical laser

Description

P/N:	ATL400-24-00	Cooling Method:	Liquid Cool
Radiating Method:	Air Force	Ambient Temperature/humidity:	20 To 60°C
Cooling Capacity:	370W	Input Power:	470W
Outer Dim For Connector:	1/8 NPT	Material Of Exchanger:	Al With Hard Oxidation
Hot/Cold Side Fan Current:	0.9 A / NA	TEM Nominal/Startup Current:	18.5/23A
Nominal/Max Voltage:	24/30 VDC	Overall Dimension:	275mm X 158mm X 170mm
Noise:	50 DB	Weight:	6.8Kg
Life Time:	>=70,000 Hours	Tolerance:	10%

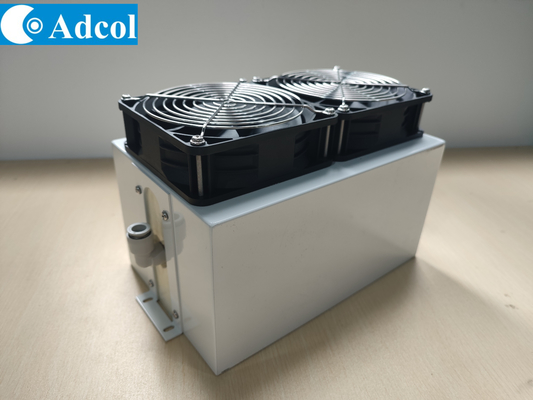

ATL400-24VDC Air to Liquid thermoelectric Cooler For Industrial laser and Medical laser 0

ATL400-24-00

Air to Liquid thermoelectric Cooler Assembly

The ATL400-24 Thermoelectric air liquid is designed for cooling objects via liquid to transfer heat.

Heat is absorbed through a liquidexchanger and dissipated by high density heatsink with fan. It could

remove up to 370W cooling, and is available in 24VDCconfigurations. Also it is virtually maintenance-free,

and can be mounted in any orientation, offering design flexibility with solid-state reliability.

Features

370W capacity rated at ΔT = 0ºC,Tambient = 30°C
Refrigerant free - environmentally friendly
Wide operating temperature range of –20°C to +60°C
Shift between heating and cooling without using a heater
Reduced noise and vibration with no moving parts

Application

Analytical instrument
Medical diagnostics
Industrial laser
Medical laser

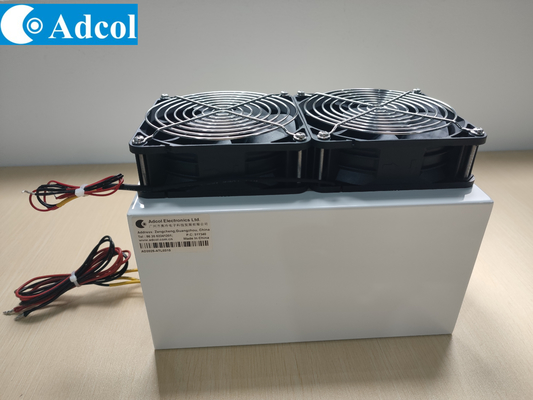

ATL400-24VDC Air to Liquid thermoelectric Cooler For Industrial laser and Medical laser 1

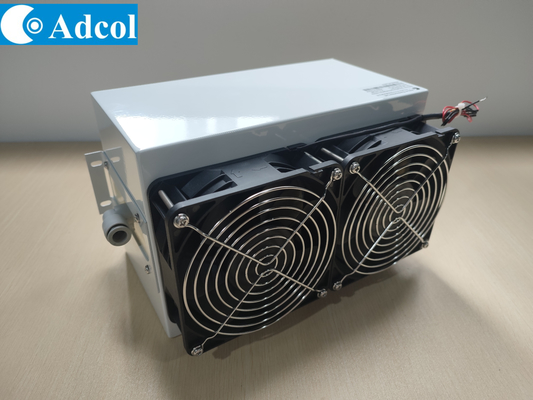

ATL400-24VDC Air to Liquid thermoelectric Cooler For Industrial laser and Medical laser 2
