ATL150-24VDC Air to Liquid thermoelectric Cooler for Medical diagnostics and Analytical instrument

Large Image : ATL150-24VDC Air to Liquid thermoelectric Cooler for Medical diagnostics and Analytical instrument

Product Details:

Place of Origin:	China
Brand Name:	Adcol
Certification:	ISO9001 , CE
Model Number:	ATL150-24VDC

Payment & Shipping Terms:

Minimum Order Quantity:	1EA
Price:	Negotiation
Packaging Details:	Solid carton packaging
Delivery Time:	3 - 4 weeks
Payment Terms:	T/T , Paypal
Supply Ability:	500pcs per month

Contact Now

ATL150-24VDC Air to Liquid thermoelectric Cooler for Medical diagnostics and Analytical instrument

Description

P/N:	ATL150-24-00	Cooling Method:	Liquid Cool
Radiating Method:	Air Force	Ambient Temperature/humidity:	-20 To 60°C
Cooling Capacity:	150W	Input Power:	205W
Outer Dim For Connector:	1/8 NPT	Material Of Exchanger:	Al With Hard Oxidation
Hot/Cold Side Fan Current:	0.35 A / NA	TEM Nominal/Startup Current:	8.2/9.8A
Nominal/Max Voltage:	24/30 VDC	Overall Dimension:	160mm X 155mm X 138mm
Noise:	45 DB	Weight:	3.1Kg
Life Time:	>=70,000 Hours	Tolerance:	10%

ATL150-24VDC Air to Liquid thermoelectric Cooler for Medical diagnostics and Analytical instrument 0

ATL150-24-00

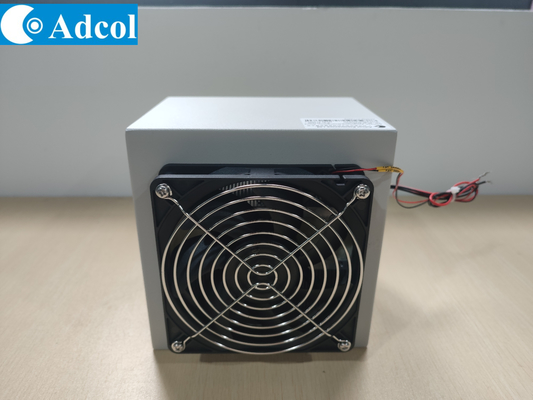

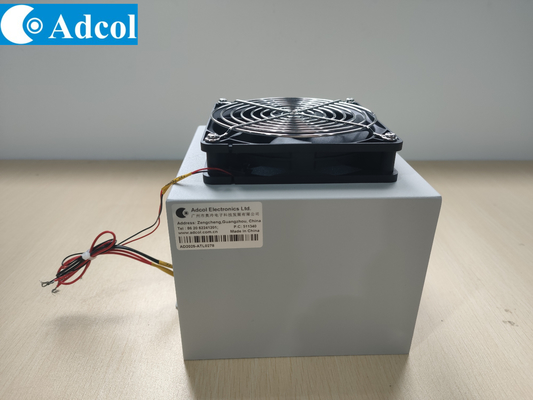

Air to Liquid thermoelectric Cooler Assembly

The ATL150-24 Thermoelectric air liquid is designed for cooling objects via liquid to transfer heat. Heat is

absorbed through a liquid exchanger and dissipated by high density heatsink with fan.It could remove up

to 150W cooling, and is available in 24VDC configurations. Also it is virtually maintenance-free, and can

be mounted in any orientation, offering design flexibility with solid-state reliability.

Features

150W capacity rated at ΔT = 0ºC,Tambient = 30°C
Refrigerant free - environmentally friendly
Wide operating temperature range of –20°C to +60°C
Shift between heating and cooling without using a heater
Reduced noise and vibration with no moving parts

Application

Analytical instrument
Medical diagnostics
Industrial laser
Medical laser

ATL150-24VDC Air to Liquid thermoelectric Cooler for Medical diagnostics and Analytical instrument 1

ATL150-24VDC Air to Liquid thermoelectric Cooler for Medical diagnostics and Analytical instrument 2
