40W Peltier Plate Cooler Maintenance Free Thermoelectric Cooler with No Moving Parts Reduced Noise and Vibration for Various Cooling Needs

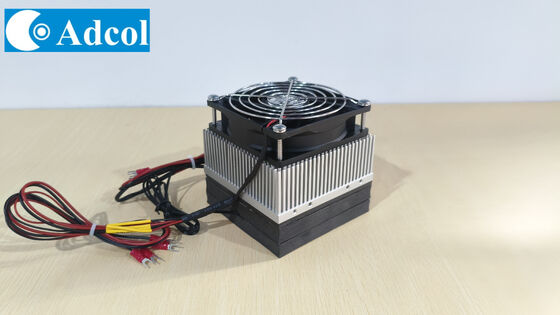

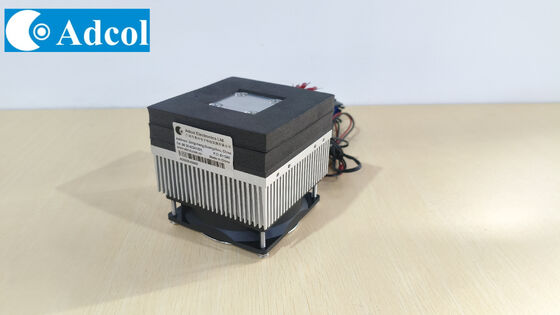

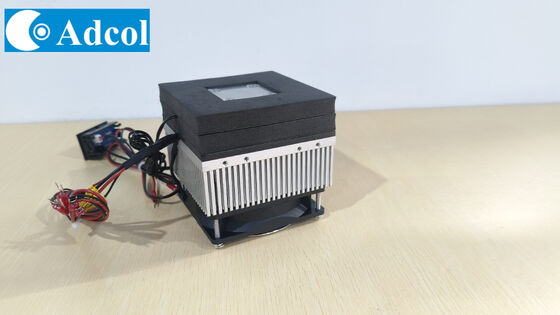

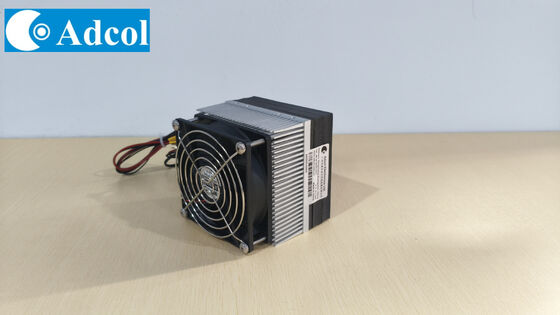

Large Image : 40W Peltier Plate Cooler Maintenance Free Thermoelectric Cooler with No Moving Parts Reduced Noise and Vibration for Various Cooling Needs

Product Details:

Place of Origin:	China
Brand Name:	Adcol
Certification:	ISO9001 , CE
Model Number:	ATP040-12VDC

Payment & Shipping Terms:

Minimum Order Quantity:	1EA
Price:	Negotiation
Packaging Details:	Solid carton packaging
Delivery Time:	3 - 4 weeks
Payment Terms:	T/T , Paypal
Supply Ability:	500pcs per month

Contact Now

40W Peltier Plate Cooler Maintenance Free Thermoelectric Cooler with No Moving Parts Reduced Noise and Vibration for Various Cooling Needs

Description

P/N:	ATP040-12VDC	Cooling Method:	Plate Cool
Radiating Method:	Air Force	Ambient Temperature/humidity:	-20 To 60°C
Cooling Capacity:	40W	TEM Nominal/Startup Current:	8.0/9.0A
Nominal/Max Voltage:	12/15 VDC	Weight:	1.2Kg
Life Time:	>=70,000 Hours	Tolerance:	10%

Adcol Peltier Thermal Cooler is your perfect choice for any Industrial, Commercial or Home application. Adcol is a well-known brand name from China and all of our Peltier Thermoelectric Modules have been certified with ISO9001 and CE.

The solid carton packaging ensures secure delivery and payment terms include T/T and Paypal. We guarantee a supply ability of 500pcs per month.

ATP040-12-00 Air to Plate thermoelectric Cooler Assembly

1. Product Introduction

The ATP040-12 Thermoelectric air plate is designed for electronic cabinets and environmental chambers.

It can maintain ambient temperatures while removing up to 40W. This model is available in 12VDC

configurations. This air Coldplate is virtually maintenance-free, with no filters ambient to change,

and it can be mounted in any orientation, offering design flexibility with solid-state reliability.

2.Features

40W capacity rated at ΔT = 0ºC,Tambient = 30°C
Refrigerant free - environmentally friendly
Wide operating temperature range of –20°C to +60°C
Shift between heating and cooling without using a heater
Reduced noise and vibration with no moving parts

3.Application

Analytical instrument
Medical diagnostics
Industrial device
Food and Beverage Cooling

4.Design drawing

40W Peltier Plate Cooler Maintenance Free Thermoelectric Cooler with No Moving Parts Reduced Noise and Vibration for Various Cooling Needs 1

40W Peltier Plate Cooler Maintenance Free Thermoelectric Cooler with No Moving Parts Reduced Noise and Vibration for Various Cooling Needs 2
