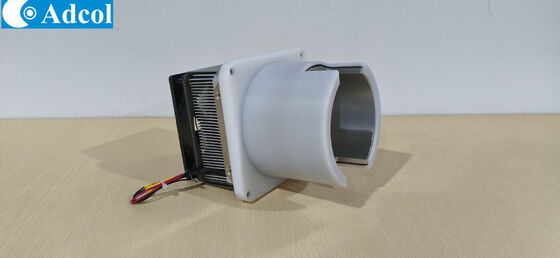

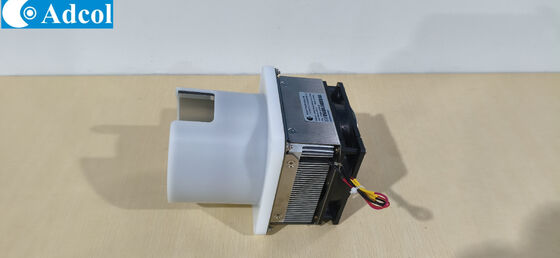

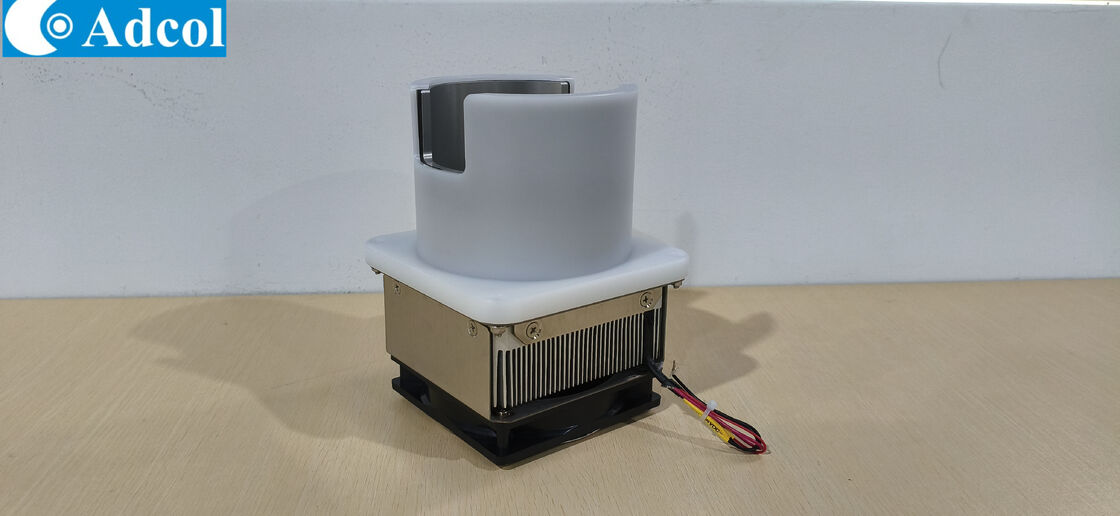

80W Thermoelectric Air to Plate Cooler Assembly with Environmentally Friendly Refrigerant Free Design

Large Image : 80W Thermoelectric Air to Plate Cooler Assembly with Environmentally Friendly Refrigerant Free Design

Product Details:

Place of Origin:	China
Brand Name:	Adcol
Certification:	ISO9001 , CE
Model Number:	ATP080-24

Payment & Shipping Terms:

Minimum Order Quantity:	1EA
Price:	Negotiation
Packaging Details:	Solid carton packaging
Delivery Time:	3 - 4 weeks
Payment Terms:	T/T , Paypal
Supply Ability:	500pcs per month

Contact Now

80W Thermoelectric Air to Plate Cooler Assembly with Environmentally Friendly Refrigerant Free Design

Description

P/N:	ATP080-24	Cooling Method:	Plate Cool
Radiating Method:	Air Force	Ambient Temperature/humidity:	-20 To 80°C
Cooling Capacity:	80W	Input Power:	90W
Heating Capacity:	130W	Normal Current:	6.2A
Weight:	3.5KG	Life Time:	>=70,000 Hours
Noise:	45 DB	Tolerance:	10%

80W Air to Plate thermoelectric Cooler Assembly

1.Product Introduction

The ATP080-24 Thermoelectric air plate is designed for electronic cabinets and environmental chambers.

It can maintain ambient temperatures while removing up to 80W.This model is available in 24VDC configurations.

This air Coldplate is virtually maintenance-free, with no filters ambient to change, and it can be mounted in

any orientation, offering design flexibility with solid-state reliability.

2.Features

1.80W capacity rated at ΔT = 0ºC,Tambient

2.Refrigerant free - environmentally friendly

3.Wide operating temperature range of –20°C to +80°C

4.Shift between heating and cooling without using a heater

5.Reduced noise and vibration with no moving parts

3.Application

1. Analytical instrument

2.Medical diagnostics

3.Industrial device

4.Food and Beverage Cooling

4.Design drawing

80W Thermoelectric Air to Plate Cooler Assembly with Environmentally Friendly Refrigerant Free Design 1

80W Thermoelectric Air to Plate Cooler Assembly with Environmentally Friendly Refrigerant Free Design 2
