Product Details:
|
| Cooling Capacity: | 39W | Stable Current: | 4A |
|---|---|---|---|
| Voltage: | 12VDC | Weight: | 0.8kg |
| Highlight: | thermoelectric cold plate,electrical cooling plate |
||

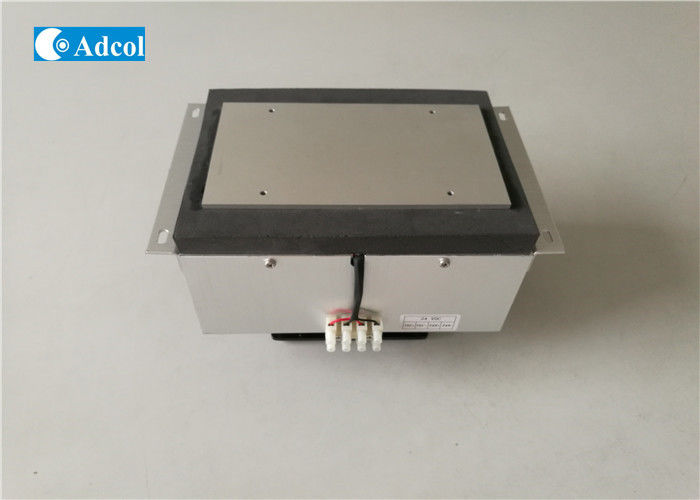

TEC Cooling System Peltier Plate Cooler For Laser Diodes
Cold plate cooler is typically used in three key applications for cooling/heating
- Objects directly on the cold plate, or objects on an additional cold plate of your own design
- Enclosures by attaching a thermal conductive container to the cold plate
- Liquids by attaching a thermal conductive tank or liquid heat sink to the cold plate
| Adcol Item | ATP040-12VDC | |
| Description | Air to Plate Cooling System | |
| Cooling Capacity(W) | 42 | |
| Voltage(VDC) | 12 | |
| Ambient Temperature | 0-60︒C | |
| Running Current(A) | 4.1 | |
| Peak Current(A) | 4.9 | |
| Weight(kg) | 0.8 | |
| Dimension (mm) (Plate side) |
Length | 60 |
| Width | 40 | |
| Height | 12 | |
| Dimension (mm) (Air side) |
Length | 120 |
| Width | 102 | |
| Height | 59 | |
