Product Details:
Payment & Shipping Terms:
|
| Cooling Method: | Thermoelectric Cooling | Outlet Gas Dew Point: | 1～3℃ |
|---|---|---|---|
| Short-term Ripple: | +- 0.1℃ | Control Method: | 1～3℃ |
| Setting Accuracy: | 1.0℃ +- 0.5℃ | Control Accuracy: | +- 0.1℃ |
| High Light: | peltier technology dehumidifier,petite dehumidifier |
||

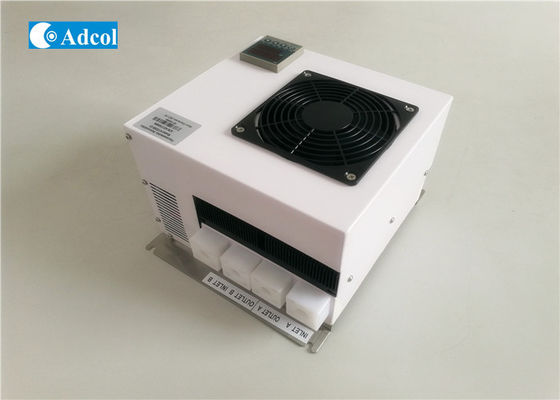

Double Channels Peltier Type Condenser Thermo Electric Dehumidifier
Currently we provide 200W standard dehumidifier with high performance thermoelectric modules. It can cool the gas and remove the moisture quickly and effectively and can be indispensable at the pre-processing stage for various gas analyzers
Typical Application
Automated measuring systems and analyzers for pollution gas
| Model | ATD200-01 | ||
| No. of channels | Double | ||
| Cooling method | Thermoelectric cooling | ||
| Heat radiation method | Forced air cooling,with built-in fan | ||
| Material of portion in contact | Inside | Impermeable carbon,hard PVC,Fluorocarbon Resin | |
| Joint | Polyethylene,O-ring(fluorocarbon rubber) | ||
| Joints | Rc 1/4 | ||
| Power Input | 200W | ||
| Overall dimensions(mm) | W220*D167*H255 | ||
| Weight | 4kg | ||
| Frame material | Steel, White Paint,SUS | ||
|
Dehumidification performance |
Outside air temperature | 0-45℃ | |
| Inlet gas temperature | |||
| Inlet gas dew point | |||
| Maximum gas flow | Parallel arrangement | Serial arrangement | |
| 1.5ℓ/min per channel | 3ℓ/min | ||
| Outlet gas dew point | 1～3℃ | ||
| Short-term ripple | +- 0.1℃ | ||
|
Temperature Control |
Control Method | 1-3 ℃ | |
| Setting accuracy | 1.0℃ +- 0.5℃ | ||
| Control accuracy | +- 0.1℃ | ||
