Product Details:
|
| Input Voltage: | 90~265VAC | Frequency: | 50/60 Hz |
|---|---|---|---|
| Operating Temp.: | -10~45 °C | Operating Humidity: | 20~85% |
| Control Temperature Range: | 4-50 °C | Control Temperature: | 0-50 °C |
| High Light: | peltier water chiller,peltier liquid chiller |
||

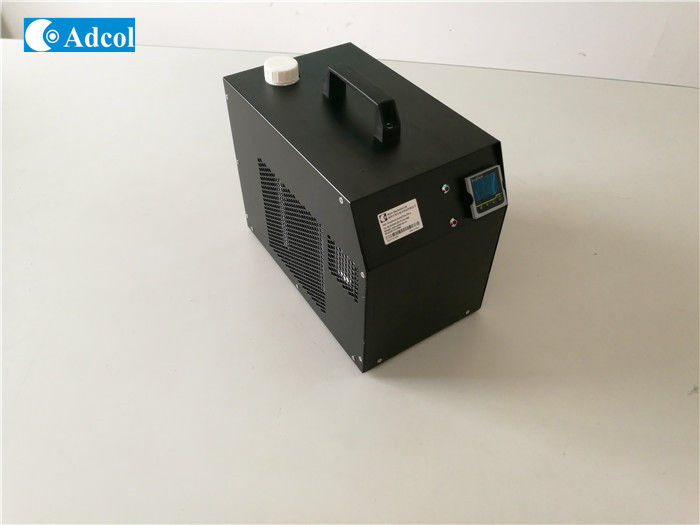

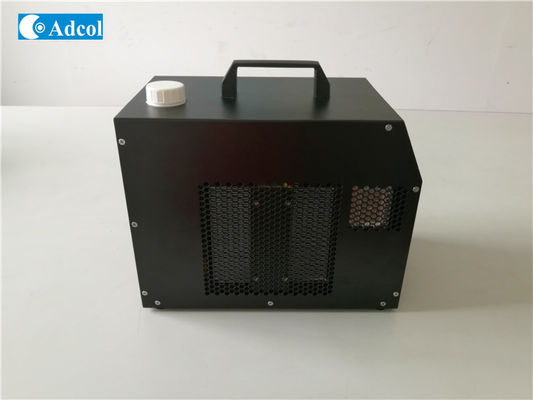

Thermoelectric Water Chiller Cooler Industrial Water Cooled High definition LCD Display
Standard Features
Programmable Digital Temperature Controller
Auto-tune of PID control terms
High definition LCD Display
System Error Monitor and alarm
Fluid inlet and outlet quick disconnect
Application
Medical Imaging System
Medical lasers
Photonic Laser System
Machine tool
Industrial Instrument
Laboratory Test
3D Printing
| Model | ARC150-01 |
| Input voltage | 90~265VAC |
| Frequency | 50/60 Hz |
| Operating environment temperature range | -10~45°C |
| Operating Humidity | 20~85% |
| Control temperature range distilled H2O as coolant |
4-50°C |
| Control temperature range, using 75% distilled H2O and 25% glycol or alcohol as coolant |
0-50°C |
| Controller accuracy | ±0.1 |
| Cooling Capacity | 149Watts |
| Heating Capacity | 250Watts |
| Current, 115VAC (230VAC) | 2.2A (1.2A) |
| Input power | 253Watts |
| Fluid Pressure | 0-40 PSI |
| Maximum Flow Rate | 6 LPM |
| Storage temperature range °C | -40~75°C |
| Storage Humidity | 5~95% |
| Heat Radiation | Air Force |
| No | Name | Description/Spec |
| 1 | Handle | Metal,Black |
| 2 | Filler Cap | Plastic |
| 3 | Coolant outlet | PLCD 16006 |
| 4 | Coolant inlet | PLCD 16006 |
| 5 | Power entry | C14,250VAC 10A |
| 6 | RS Connector | RS 485 |
| 7 | Controller | PID |
