Product Details:
|
| Input Voltage: | 90~265VAC | Frequency: | 50/60 Hz |
|---|---|---|---|
| Cooling Capacity: | 450Watts | Heating Capacity: | 550Watts |
| Current, 115VAC (230VAC): | 5.6A (3.0A) | Input Power: | 645Watts |
| High Light: | tec water chiller,peltier liquid chiller |
||
Peltier Chiller Perfect Cooling Solution Thermoelectric Chiller For Photonic Laser System
Adcol Chiller design with Adcol Thermoelectric Liquid Cooler engine, build in precision temperature control system, up to +/-0.1 . Widely used in medical , photonics and semiconductor industry. Cooling capacity is 150W , 300W or as per customer's request.
Chiller can keep injection & Blowing machine in low temperature, so the machine can produce more and better quality products
The Benefits of Thermoelectric Cooling
· NO ICE REQUIRED FOR COOLING
· They allow for very tight and accurate temperature control
· No moving parts . Therefore they require little or no maintenance . Ideal for cooling parts that may be sensitive to mechanical vibration .
· No refrigerants , Therefore environmental and safety benefits
· Enables reduced, low-noise operation of cooling fans, while providing greater cooling power
· Allow for systems to be lightweight and compact due to their small size
· Long life
· Controllable (by voltage / current)
· Fast , dynamic response.
· Can provide cooling below ambient temperature
Application
Medical Imaging System
Medical lasers
Photonic Laser System
Machine tool
Industrial Instrument
Laboratory Test
3D Printing
| Model | ARC450 |
| Input voltage | 90~265VAC |
| Frequency | 50/60 Hz |
| Operating environment temperature range | -10~45°C |
| Operating Humidity | 20~85% |
| Control temperature range distilled H2O as coolant |
4-50°C |
| Control temperature range, using 75% distilled H2O and 25% glycol or alcohol as coolant |
0-50°C |
| Controller accuracy | ±0.1 |
| Cooling Capacity | 450Watts |
| Heating Capacity | 550Watts |
| Current, 115VAC (230VAC) | 5.6A (3.0A) |
| Input power | 645Watts |
| Fluid Pressure | 0-40 PSI |
| Maximum Flow Rate | 6 LPM |
| Storage temperature range °C | -40~75°C |
| Storage Humidity | 5~95% |
| Heat Radiation | Air Force |

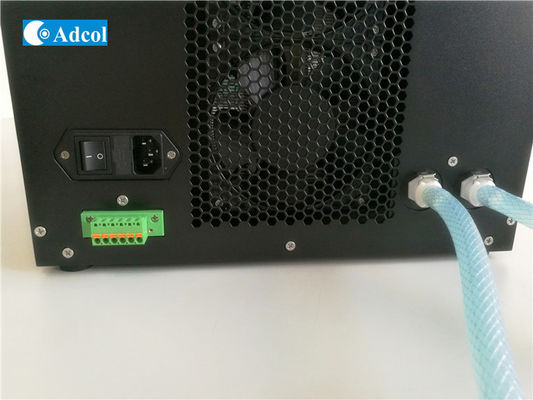

| No | Name | Description/Spec |
| 1 | Handle | Metal,Black |
| 2 | Filler Cap | Plastic |
| 3 | Coolant outlet | PLCD 16006 |
| 4 | Coolant inlet | PLCD 16006 |
| 5 | Power entry | C14,250VAC 10A |
| 6 | RS Connector | RS 485 |
| 7 | Controller | PID |
