Product Details:
|
Color: | Light Gray | Thickness: | 0.04” (1.016mm) |
---|---|---|---|
Thickness Tolerance: | ±0.004” (±0.10mm) | Density: | 1.73 G / Cc |
Hardness: | 45 Shore A | Tensile Strength: | 48 Psi |
High Light: | thermal conductive material,thermal pad material |

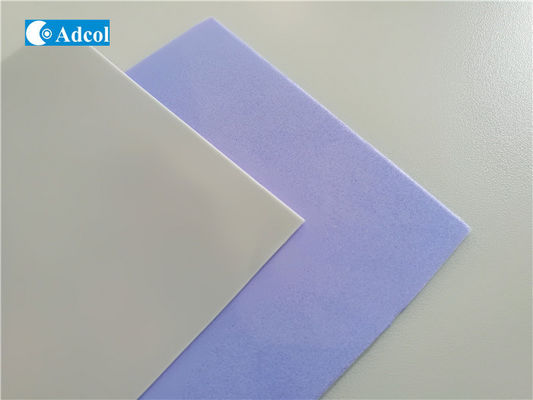

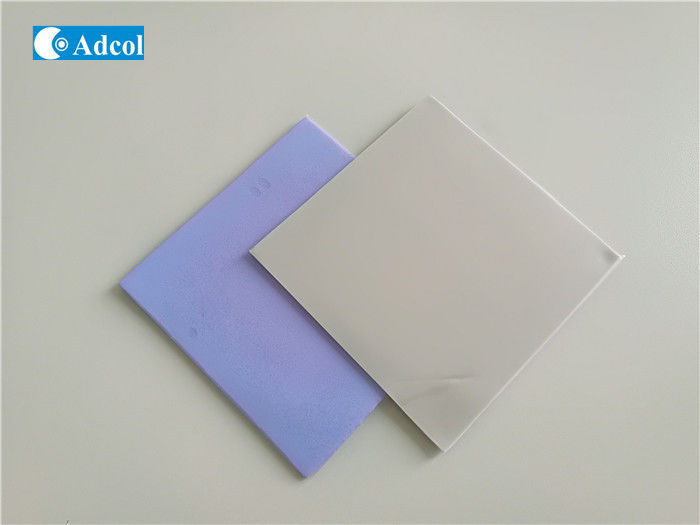

ISO9001 Thermally Conductive Material Thermally Conductive Silicone Robber Interface Pad
A-gapfill 200 is a very soft, freestanding gap filler that is more compliant than most other gap fillers. Combining good thermal conductivity of 1.1 W/mK with high conformability, this gap filler produces low thermal resistance. The alumina filler allows the product to remain a cost effective solution where moderate thermal performance is acceptable. Naturally tacky and not requiring additional adhesive coating, the
A-gapfill 200 can inhibit thermal performance. This gap filler is both electrically insulating and stable from -40°C to 160°C and meets UL 94 VO rating.
FEATURES
• Soft and compressible for low stress applications
• Naturally tacky needing no further adhesive coating
• 1.1 W/mK thermal conductivity
• Available in thicknesses from 0.010” (0.25mm) to 0.200” (5.0mm)
APPLICATIONS
• Cooling components to the chassis or frame
• High speed mass storage drives
• RDRAM memory modules
• Heat pipe thermal solutions
• Automotive engine control units
• Wireless communication hardware
Item | A-gapfill 240 |
Construction & Composition | Ceramic filled silicone elastomer |
Color | Light Gray |
Thickness | 0.04" (1.016mm) |
Thickness Tolerance | ± 0.004" (± 0.10mm) |
Density | 1.73 g/cm3 |
Hardness | 45 Shore 00 |
Tensile Strength | 48 psi |
% Elongation | 63 |
Outgassing TML (post cured) |
0.34% |
Outgassing CVCM (post cured) |
0.10% |
UL Flammability Rating | 94 VO |
Temperature Range | -45°C to 160°C |
Thermal Conductivity | 1.1 W/mK |
Total Thermal resistance @ 100 psi @69KPa | 1.57 °C-in2/W 10.13 °C-cm2/W |
Coefficient of Thermal Expansion | 229 ppm/°C 35°C to 130°C |
Breakdown voltage | >27,000 Volts |
Volume resistivity | 4 x 1013 ohm-cm |
Dielectric constant @ 1MHz | 5.5 |
STANDARD THICKNESS
0.020" (0.51mm) 0.030" (0.76mm) 0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm) 0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm) 0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm) 0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm) 0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm) 0.190" (4.83mm) 0.200" (5.08mm) Consult the factory for alternate thicknesses
STANDARD SHEET SIZE
9" x 9" (229mm x 229mm) A-gapfill 200 may be die cut into individual shapes. Pressure sensitive adhesive is not applicable for Tflex™ products.
REINFORCEMENT
0.020" (0.51mm) and 0.030" (0.762mm) are fiberglass reinforced.
