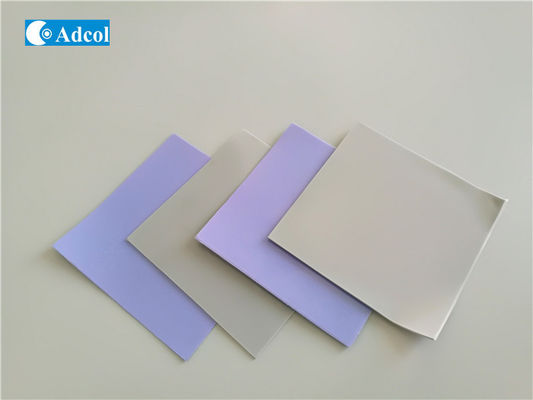

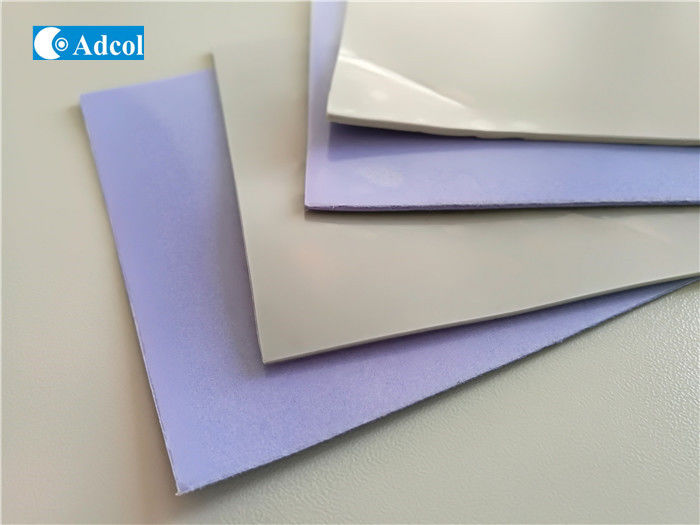

Thermal Interface Material Thermal Conductive Silicone Soft Gap Pad

Thermal Interface Material Thermal Conductive Silicone Soft Gap Pad
Thermal Interface Material Thermal Conductive Silicone Soft Gap Pad Thermal Interface Material Thermal Conductive Silicone Soft Gap Pad

Large Image :  Thermal Interface Material Thermal Conductive Silicone Soft Gap Pad

Product Details:
Place of Origin: China
Brand Name: Adcol
Certification: ISO9001, CE
Model Number: A-gapfill 2100
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Negotiation
Packaging Details: Solid carton packaging
Delivery Time: 3 - 4 weeks
Payment Terms: T/T , Paypal
Supply Ability: 100kpcs per month

Thermal Interface Material Thermal Conductive Silicone Soft Gap Pad

Description
Color: Light Gray Thickness: 0.10" (2.54mm)
Thickness Tolerance: ±0.010" (±0.25mm) Density: 1.73 G / Cbm
Hardness: 45 Shore A Tensile Strength: 48 Psi
High Light:

thermal conductive material

,

thermal interface material

Soft Thermal Conductive Heatsink Silicone Gap Interface Pad​

​A-gapfill 200 is a very soft, freestanding gap filler that is more compliant than most other gap fillers. Combining good thermal conductivity of 1.1 W/mK with high conformability, this gap filler produces low thermal resistance. The alumina filler allows the product to remain a cost effective solution where moderate thermal performance is acceptable. Naturally tacky and not requiring additional adhesive coating, the
​A-gapfill 200 can inhibit thermal performance. This gap filler is both electrically insulating and stable from -40°C to 160°C and meets UL 94 VO rating.

FEATURES
• Soft and compressible for low stress applications
• Naturally tacky needing no further adhesive coating
• 1.1 W/mK thermal conductivity
• Available in thicknesses from 0.010” (0.25mm) to 0.200” (5.0mm)

APPLICATIONS
• Cooling components to the chassis or frame
• High speed mass storage drives
• RDRAM memory modules
• Heat pipe thermal solutions
• Automotive engine control units
• Wireless communication hardware



Item A-gapfill 2100
Construction & Composition Ceramic filled
silicone elastomer
Color Light Gray
Thickness 0.10" (2.54mm)
Thickness Tolerance
± 0.010" (± 0.25mm)
Density 1.73 g/cm3
Hardness 45 Shore 00
Tensile Strength 48 psi
% Elongation 60.6
Outgassing TML
(post cured)
0.34%
Outgassing CVCM
(post cured)
0.10%
UL Flammability Rating 94 VO
Temperature Range -45°C to 160°C
Thermal Conductivity 1.1 W/mK
Total Thermal resistance @ 100 psi @69KPa 2.93 °C-in2/W
18.90 °C-cm2/W
Coefficient of Thermal Expansion 229 ppm/°C
35°C to 130°C
Breakdown voltage >27,000 Volts
Volume resistivity 4 x 1013 ohm-cm
Dielectric constant @ 1MHz 5.5



STANDARD THICKNESS
0.020" (0.51mm) 0.030" (0.76mm) 0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm) 0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm) 0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm) 0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm) 0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm) 0.190" (4.83mm) 0.200" (5.08mm) Consult the factory for alternate thicknesses

STANDARD SHEET SIZE
9" x 9" (229mm x 229mm) A-gapfill 200 may be die cut into individual shapes. Pressure sensitive adhesive is not applicable for Tflex™ products.

REINFORCEMENT
0.020" (0.51mm) and 0.030" (0.762mm) are fiberglass reinforced.
