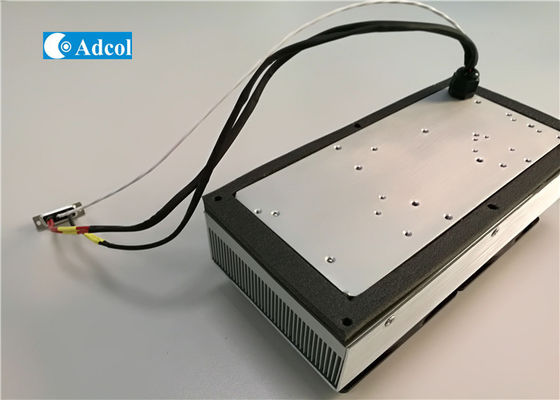

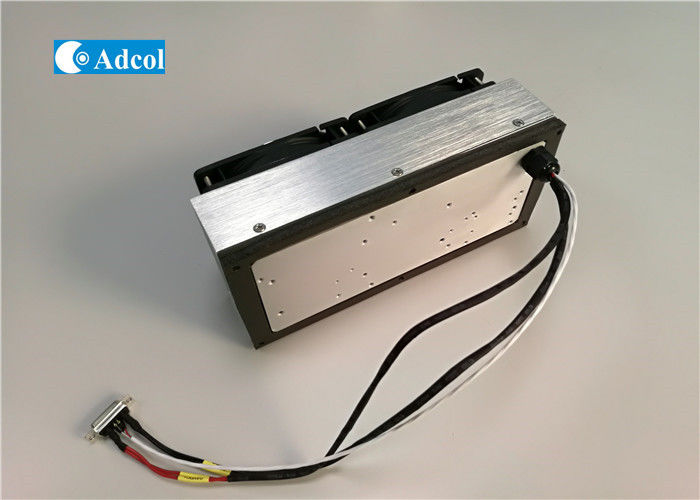

150W Thermoelectric Cooler Peltier Cold Plate Conditioner For Environmental Chamber

Assembly Tips

The techniques used in the assembly of a thermoelectric system can be as important as the selection of the thermoelectric module (TEM). It is imperative to keep in mind the purpose of the assembly – namely to transfer heat. Generally a TEM, in cooling mode, moves heat from an object to ambient environment. All of the mechanical interfaces between the device to be cooled and ambient are also thermal interfaces. Similarly all thermal interfaces tend to inhibit the transfer of heat or add thermal resistance to system, which lowers COP. Again, when considering assembly techniques every reasonable effort should be made to minimize the thermal resistance between hot and cold surfaces.

Peltier plate cooler is typically used in three key applications for cooling

1.) Objects directly on the cold plate, or objects on an additional cold plate of your own design
2.) Enclosures by attaching a thermal conductive container to the cold plate
3.) Liquids by attaching a thermal conductive tank or liquid heat sink to the cold plate
