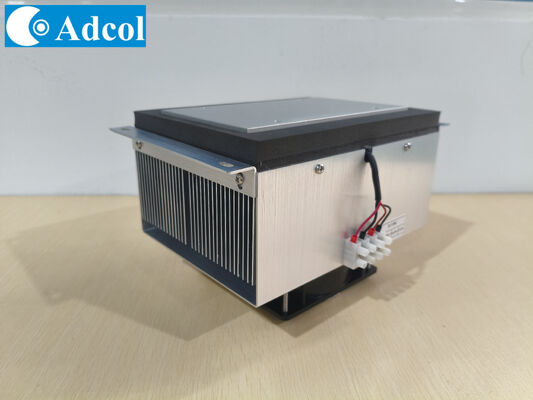

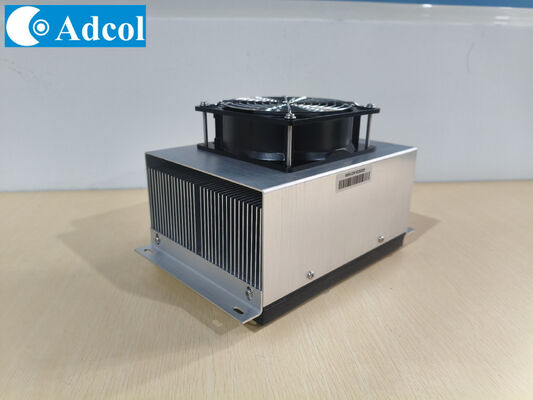

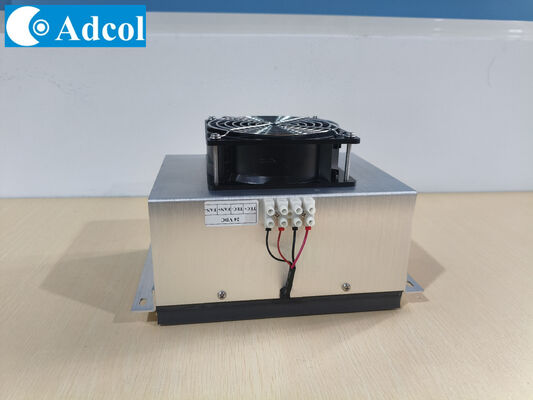

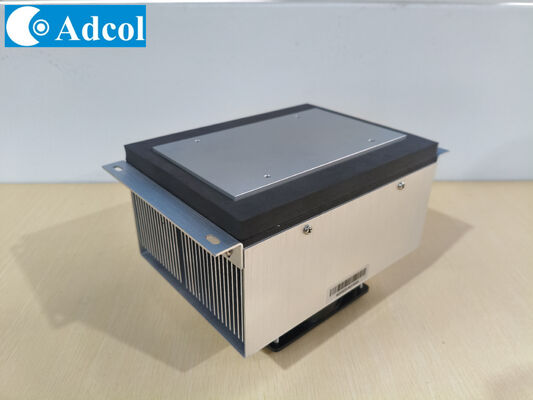

80W Thermoelectric air plate is designed for electronic cabinets and environmental chambers.

Large Image : 80W Thermoelectric air plate is designed for electronic cabinets and environmental chambers.

Product Details:

Place of Origin:	CHINA
Brand Name:	ADCOL
Certification:	ISO9001 , CE
Model Number:	ATP080-24VDC

Payment & Shipping Terms:

Minimum Order Quantity:	1EA
Price:	Negotiation
Packaging Details:	Solid carton packaging
Delivery Time:	3 - 4 weeks
Payment Terms:	T/T , Paypal
Supply Ability:	500PCS

Contact Now

80W Thermoelectric air plate is designed for electronic cabinets and environmental chambers.

Description

P/N:	ATP080-24VDC	Cooling Method:	Plate Cool
Radiating Method:	Air Force	Ambient Temperature/humidity:	-20 To 60°C
Cooling Capacity:	80W	Input Power:	115W
Heating Capacity:	190W	Hot/Cold Side Fan Current:	0.35 A / NA
TEM Nominal/Startup Current:	4.2/5.3A	Nominal/Max Voltage:	24/30 VDC
Overall Dimension:	203mm X 155mm X 152mm	Noise:	45 DB
Weight:	3.6Kg	Life Time:	>=70,000 Hours
Tolerance:	10%

Adcol Peltier Thermal Cooler is your perfect choice for any Industrial, Commercial or Home application. Adcol is a well-known brand name from China and all of our Peltier Thermoelectric Modules have been certified with ISO9001 and CE.

The solid carton packaging ensures secure delivery and payment terms include T/T and Paypal. We guarantee a supply ability of 500pcs per month.

ATP080-24 Air to Plate thermoelectric Cooler Assembly

1.Product Introduction

The ATP080-24 Thermoelectric air plate is designed for electronic cabinets and environmental chambers.

It can maintain ambient temperatures while removing up to 80W. This model is available in 24VDC

configurations. This air cold plate is virtually maintenance-free, with no filters ambient to change,

and it can be mounted in any orientation, offering design flexibility with solid-state reliability

2.Features

80W capacity rated at ΔT = 0ºC,Tambient = 30°C
Refrigerant free - environmentally friendly
Wide operating temperature range of –20°C to +60°C
Shift between heating and cooling without using a heater
Reduced noise and vibration with no moving parts

3.Application

Analytical instrument
Medical diagnostics
Industrial device
Food and Beverage Cooling

4.Performance Curve

5.Dimension (mm)

6.Installation cut hole and Connector (mm)
