Product Details:
|
| Running Current: | 12.5 | Voltage: | 24VDC |
|---|---|---|---|
| Cooling Power: | 250W | Length: | 250mm |
| Width: | 178mm | Height: | 156.5mm Ref |
| High Light: | thermoelectric cold plate,electrical cooling plate |
||

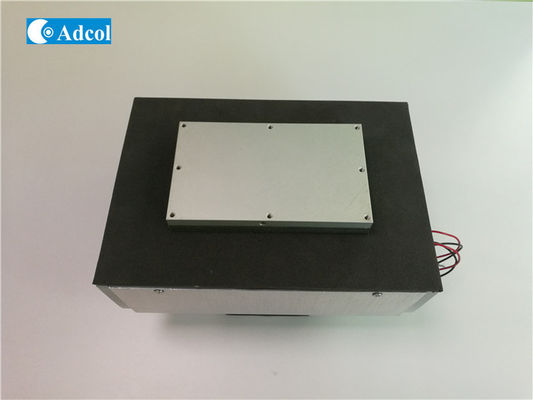

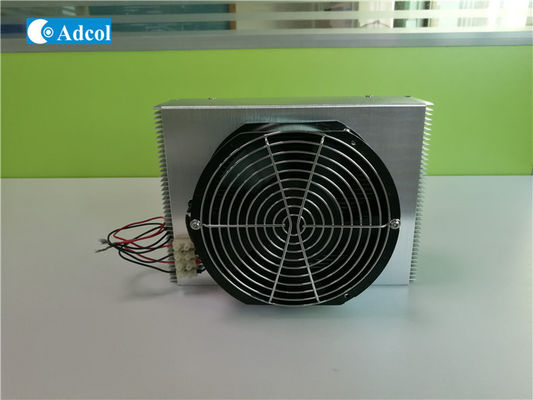

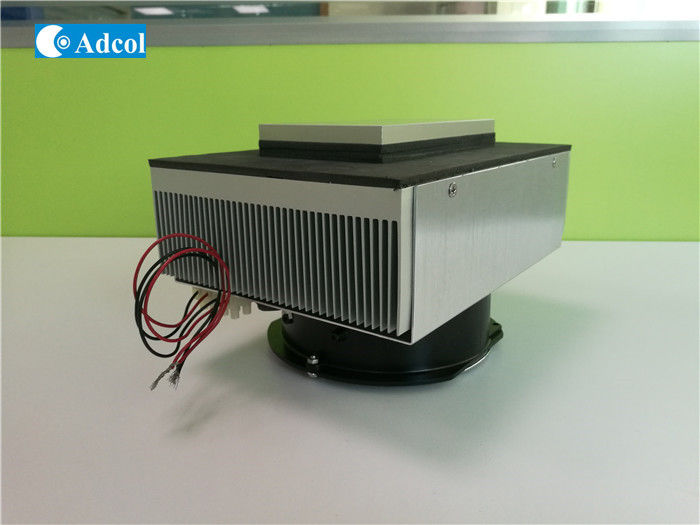

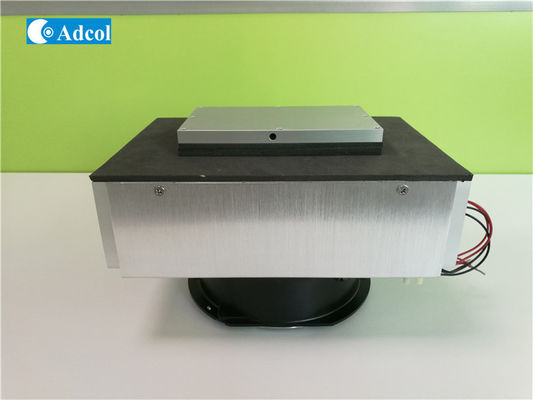

Thermoelectric Cold Plate Cooler Air To Plate 250 24VDC
| Specification (Ta=27 Degree C) |
Description |
| Heat transfer, Cold | Plate |
| Heat transfer, Hot | Air |
| Cooling power (W) | 250, Delt T = 0 |
| Voltage, normal (VDC) | 24, Vmax=27.2 |
| Current (A) | Initial, 14﹢／﹣10% |
| Current (A) | Normal, 12.5﹢／﹣10% |
| Fan, cold side | N/A |
| Fan, hot side | 17251, 24VDC |
| Operating Temp | -40~60 degree C (Fan: -10~70 degree C) |
| Weight (kg) | 6 |
Note:
1. The temperature of the cold plate can be controlled in -20~150 degree C
2. Rohs Compliance
