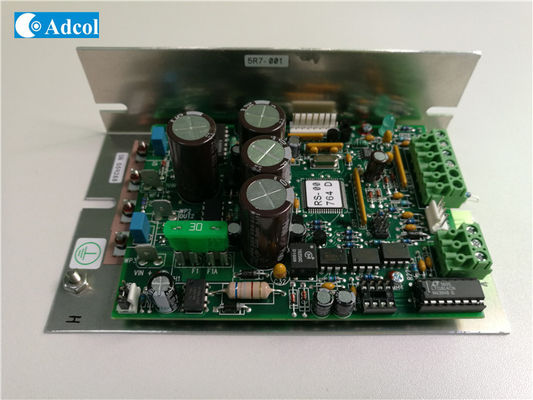

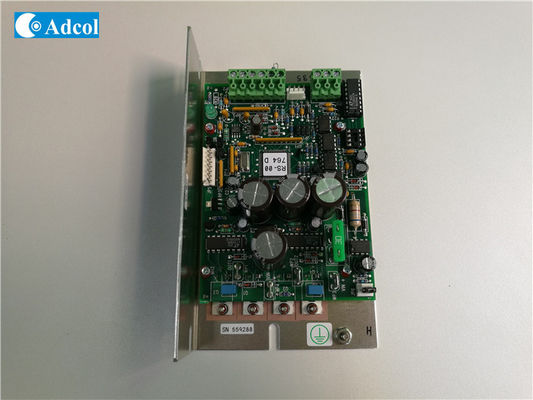

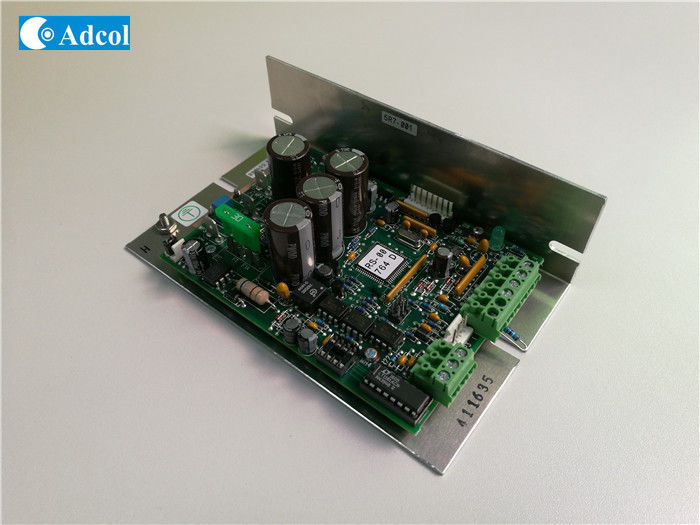

5R7 Thermoelectric Controller

​The Bi-directional or unidirectional H-Bridge configuration of this controller creates a seamless transition between hating and cooling as it commands the thermoelectric modules. The included user friendly PC software makes it easy for the user to change control configurations through the RS232 interface which has 1500VAC isolation from the electronic circuitry virtually eliminating interference from nois or errant signals. Once the controller is set-up, the computer may be disconnected and the controller becomes a stand alone unit or the computer can remain connected for data acquisition. The temperature may also be set through the optional display or remote potentionmeter. The load circuit is pluse width modulated at 2.7 Khz and delivers a load current of 1 to 25 Amps.

Features
​- H-Bridge Control
​- PC Programmable
​- PID or On/Off Control
- PC configurable Alarm Circuit
​- 0-36 VDC Output using Split Power Supply
- RS232 Communication Port
​- RoHS Complaint
​- Set Temperature range of -40 to 250 Degree C
- Large program memory space for customization

Specifications
​- Input Voltage : 12 to 36 VDC
- Output Voltage : 0 to 36 VDC
​- Load Current : 0.1 to 25 A
​- Temperature Resolution : 0.01 degree C
​- PID Functions:
​                          - Bandwidth: 0.1 to 50 degree C
                          - Integral : 0 to 10 repeats per minute
                          - Derivative : 0 to 10 minutes
​- PWM BF: 2.7 Khz
- Ambient Temperature range : -20 to 70 degree C
​- Power Dissipation: <10 Watts
- Process Control Rate : 90 time per second
​- Output Power Resolution : +- 0.2%
​- Control Resolution : +- 0.01 degree C
​- 2'' H (2.64'' with HS) x 6''W x 3.63'' D
- Customer Drawing : CDR-00120


Accessories
- 5R6-576 Display with 4 digit readout
- Heat sink

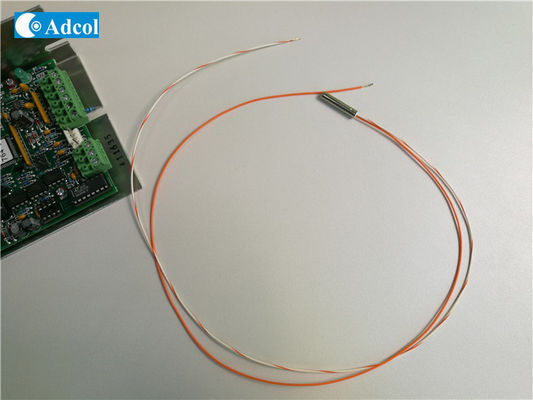

- Sensor Selection
