ATP040 Peltier Plate Cooler For Disinfection Purification Operating Temperature -10 ~ 55 Degree C

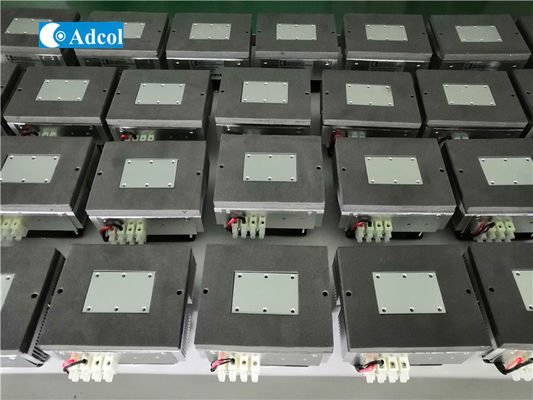

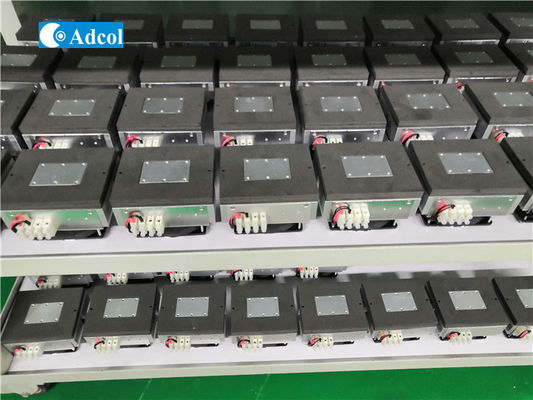

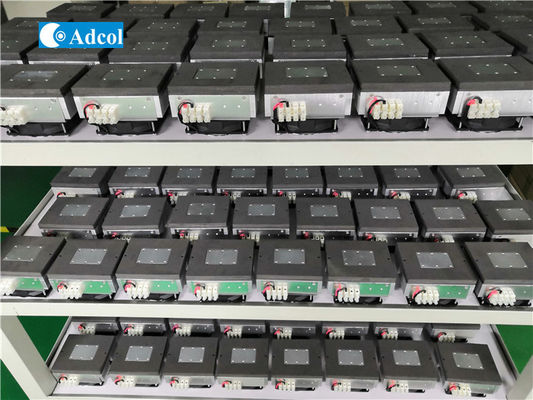

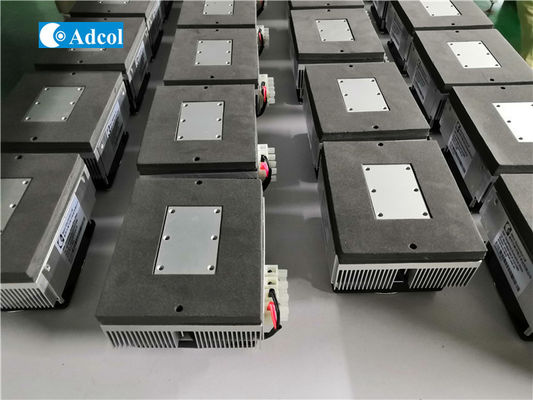

ATP040 Peltier Plate Cooler  For Disinfection Purification Operating Temperature -10 ~ 55 Degree C
ATP040 Peltier Plate Cooler  For Disinfection Purification Operating Temperature -10 ~ 55 Degree C ATP040 Peltier Plate Cooler  For Disinfection Purification Operating Temperature -10 ~ 55 Degree C ATP040 Peltier Plate Cooler  For Disinfection Purification Operating Temperature -10 ~ 55 Degree C ATP040 Peltier Plate Cooler  For Disinfection Purification Operating Temperature -10 ~ 55 Degree C

Large Image :  ATP040 Peltier Plate Cooler For Disinfection Purification Operating Temperature -10 ~ 55 Degree C

Product Details:
Place of Origin: China
Brand Name: Adcol
Certification: ISO9001 , CE
Model Number: ATP040-12VDC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Solid carton packaging
Delivery Time: 3 - 4 weeks
Payment Terms: T/T , Paypal
Supply Ability: 500pcs per month
Detailed Product Description
Cooling Capacity: 39W Running Current: 4.0A
Voltage: 12VDC Weight: 0.8kg
High Light:

thermoelectric cold plate

,

electrical cooling plate

Thermoelectric Air To Plate Cooler ATP040 12VDC Peltier Cooler For Disinfection Purification



Peltier Plate Cooler ATP040-12VDC

Heat transfer, cold side : Plate
Heat transfer, hot side: Air
Cooling Power : 40W (delt T = 0)
Voltage, normal (VDC) : 12 , Vmax=15
Current : Initial 4.6A +/-10%
Current : Normal 3.9A +/-10%
Fan, cold side: N/A
Fan, hot side: 92x25mm, 12VDC, 0.24A
Operating temperature: -10 ~ 55 degree C
Weight : 0.75kgs



Peltier module (TE), also called Peltier cooling device, is a heat pump.

Peltier module is for the operation of DC current.It can refrigerate while heating. By changing the DC current to determine the polarity of the same refrigeration unit to achieve cooling or heating. This effect is produced by the thermal principle, the following plan is a single-chip device in refrigeration, It consists of two ceramic composition, which is between N-type and P-type semiconductor material (bismuth telluride). Semiconductor components in the circuit is used in series form integral link

ATP040 Peltier Plate Cooler  For Disinfection Purification Operating Temperature -10 ~ 55 Degree C 0

Peltier modules, the working principle is this : When a N-type peltier element and a P peltier element combining into galvanic right.In this circuit connected to DC current, can create energy transfer. N-flow components of the P-type connector components absorb heat as cold-end P-flow components of the N-type connector components release heat as hot end. Endothermic and exothermic by the size of the current size of semiconductor material N, P components of a few to decide, Following is thermoelectric cooling effect.

1, Seebeck effect (SEEBECK EFFECT)
1822 German Seebeck found that when two different conductors connected, If connecting two different points in the temperature, in a conductor temperature generated EMF :
ATP040 Peltier Plate Cooler  For Disinfection Purification Operating Temperature -10 ~ 55 Degree C 1



2, Perle reads effect (PELTIER EFFECT)
1834 French Perle note found with the effects of Seebeck effect, When current flows through the formation of two different conductor of the tap, tap will produce exothermic and endothermic, exothermic or endothermic current size by the size of a decision.
ATP040 Peltier Plate Cooler  For Disinfection Purification Operating Temperature -10 ~ 55 Degree C 2
