Product Details:
|
Qmax: | 50W | Run Current: | 8.7A/4.4A |
---|---|---|---|
Peak Current: | 10.2A/5.1A | Voltage: | 12/24VDC |
Operation Temp.: | -10 - 60 Degree C | ||
Highlight: | peltier liquid cooler,thermo electric cooler |

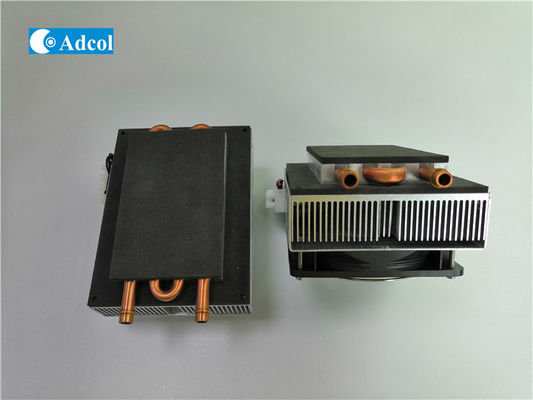

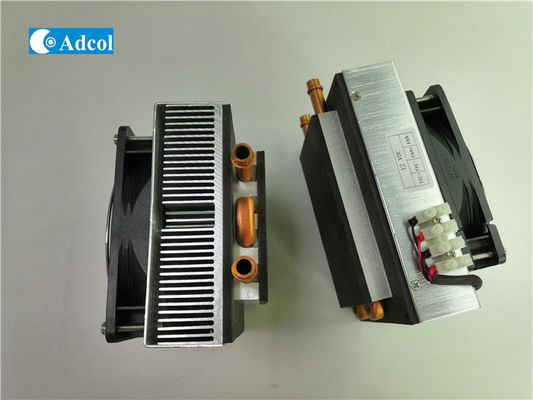

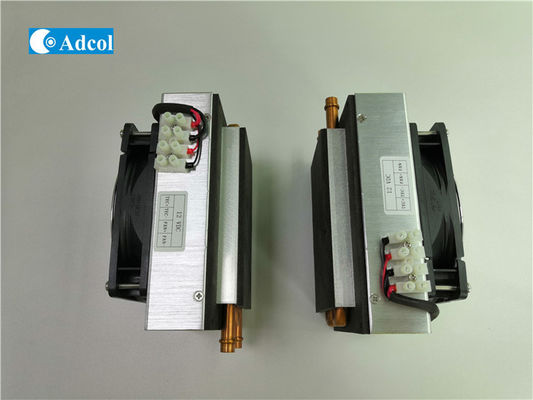

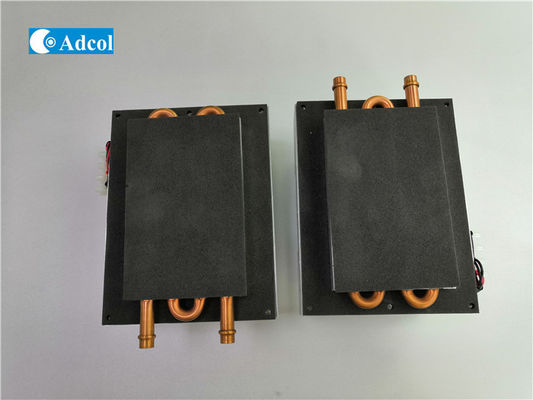

Peltier Cooler 50W Thermoelectric Liquid Cooler For Laser Machinery Medical Device
Model : ATL050-12/24VDC
Cooling Method : air to fluid
Cooling Objective: Purified water
Cooling objective Contact Part: Aluminum, partially copper
Cooling Capacity: (*1) 50W
Fan Input Voltage: 12/24VDC
Peltier Input Voltage: 12/24VDC
Rated Consumption Current0 (*2): 8.7A /4.4A
Starting Current (*3): 10.2A /5.1A
Working Humidity: Below 80%
Max Ambient Temperature: 60 degree
Overheat protection: no
Electrical Connection: Screw
Noise: 39 dB
Site of Use: Indoor
Outer diameter of Pipe Connecting Port: dia 9.5mm
Dimensions (*4): 160x120x84mm
Mass of Main Unit: est. 1.5kgs
