45dB Cabinet Cool Peltier Module Assembly Conditioner

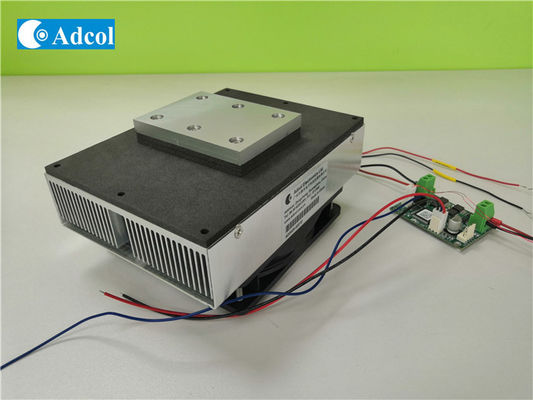

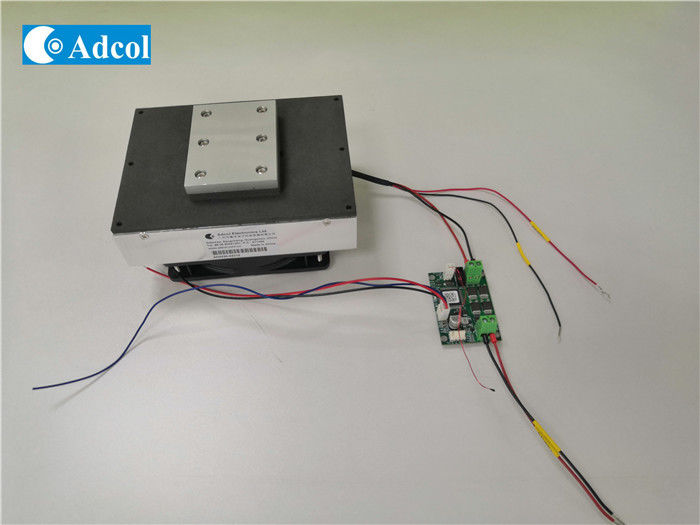

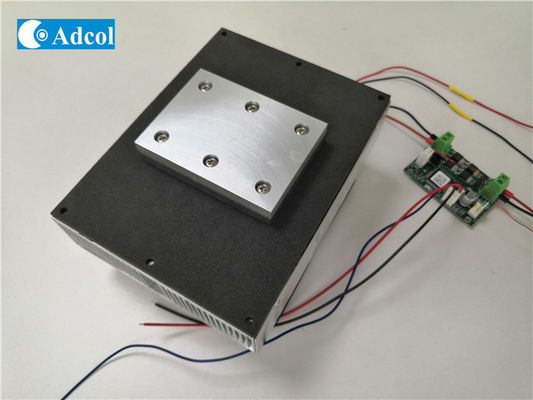

Large Image : 45dB Cabinet Cool Peltier Module Assembly Conditioner

Product Details:

Place of Origin:	Origin
Brand Name:	Adcol
Certification:	Certificated
Model Number:	ATP050-24V

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	TBA
Packaging Details:	Carton
Delivery Time:	2-3weeks
Payment Terms:	T/T
Supply Ability:	10000pcs/month

Contact Now

Detailed Product Description

Cooling Capacity:	50W	Input Power:	90W
Cooling Method:	Plate Cool	Radiating Method:	Air Force
Nominal/Max Voltage:	24/30 VDC	Life Time:	70,000 Hours
High Light:	45dB Cabinet Cool Peltier Module , 50W Cabinet Cool Peltier Module

Cooler For Cabinet TEC Cool Peltier Module Assembly Conditioner

Peltier Plate Cooler

Cooling Method : Plate Cool
Radiating method : Air Force
Ambient temperature/humidity : -20 to 60°C
Cooling Capacity : 50W
Input Power : 90W
Heating Capacity : 130W
Hot/Cold side fan Current : 0.25 A / NA
TEM Nominal/Startup Current : 4.1/5.0A
Nominal/Max Voltage : 24/30 VDC
Overall dimension : 160mm x 122.4mm x 82mm
Weight : 1.3Kg
Life Time : 70,000 Hours
Noise : 45 dB
Tolerance : 10%
