12V 35W Thermoelectric Air Conditioner Peltier Effect For CNC Machine

35W Thermoelectric Air Conditioner Peltier Cooler For Battery Cabinet​

Thermoelectric cabinet coolers are the ideal solution to cool and remove heat from small cabinets, control panels and consoles. It's technology and design make them especially suitable for harsh environments like food industry or traffic engineering. The cabinet coolers utilize solid state peltier technology and can be operated in vertical orientation. Separation of internal air circulation and ambient external air flow and a hermetical seal at the flange guarantee protection class IP55.

Cooling capacities range from 20 to 400 W (can be customized)

The thermoelectric dehumidifiers create a local condensation surface, collect and optionally dispose of the condensate to the outside of a cabinet. Condensation causes corrosion and malfunction of electrical switchgear. The thermoelectric dehumidifiers consume only 50 W and have a much higher energy efficiency as compared to conventionally used heaters.

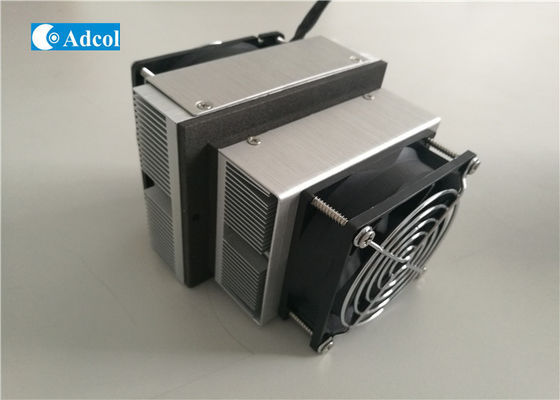

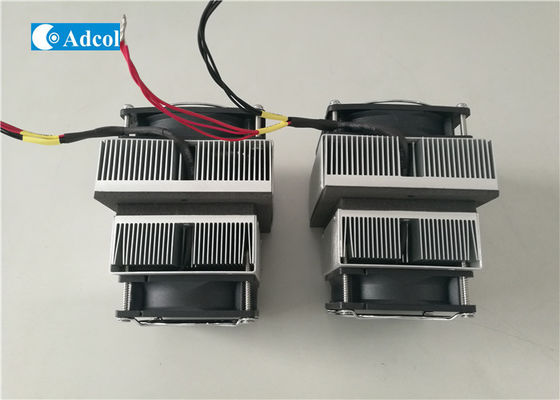

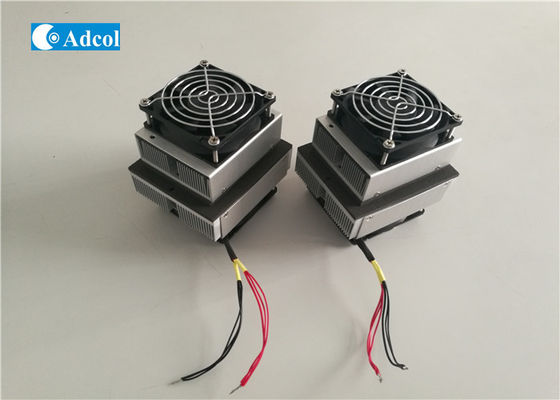

The ATA015-12VDC Thermoelectric air conditioner is designed for small electronic cabinets or environmental chambers application. It can cool to 67 degree below ambient or maintain ambient temperatures while removing up to 15W. This model is available in 12VDC configurations. This air conditioner is virtually maintenance-free, with no filters ambient to change, and it can be mounted in any orientation, offering design flexibility with solid-state reliability.

Wiring Schematic:

Features:

﹒Realiable solid state construction with long life
﹒Maintenance-free
﹒Small size
﹒Reliable cool capability
﹒DC power configuration

Applications:

​​- Outdoor Telecommunications cabinets, Network Cabinets and Electrical Controlling Cabinets

- Indoor battery cabinet

- CNC Machines, Machine Tools, Laser Cutting Machines
