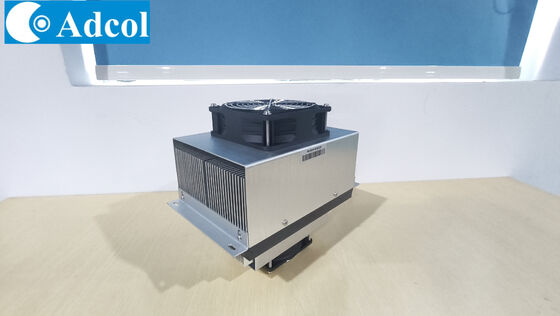

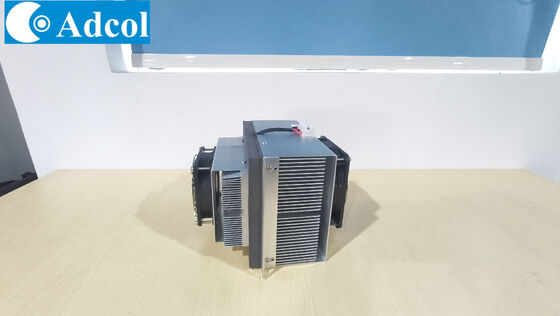

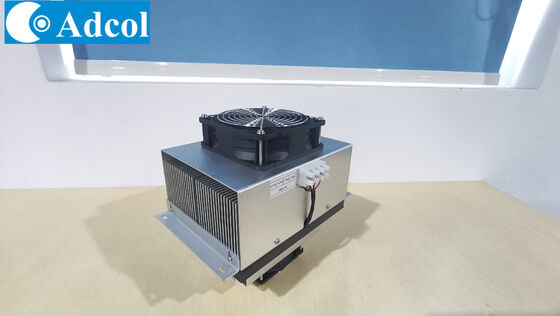

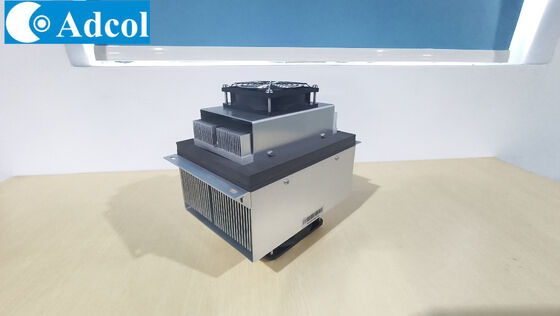

80W Thermoelectric Air Conditioner Designed for Outdoor Enclosures and Indoor Kiosks Providing Cooling and Heating Functions

Large Image : 80W Thermoelectric Air Conditioner Designed for Outdoor Enclosures and Indoor Kiosks Providing Cooling and Heating Functions

Product Details:

Place of Origin:	CHINA
Brand Name:	ADCOL
Certification:	ISO9001 , CE
Model Number:	ATA080-24VDC

Payment & Shipping Terms:

Minimum Order Quantity:	1EA
Price:	Negotiation
Packaging Details:	Solid Carton Packaging
Delivery Time:	3-4 weeks
Payment Terms:	T/T, Paypal
Supply Ability:	500PCS

Contact Now

80W Thermoelectric Air Conditioner Designed for Outdoor Enclosures and Indoor Kiosks Providing Cooling and Heating Functions

Description

P/N:	ATA080-24VDC	Cooling Method:	Air Cool
Radiating Method:	Air Force	Ambient Temperature/humidity:	-20 To 60°C
Cooling Capacity:	80W	Input Power:	115W
Heating Capacity:	190W	Hot/Cold Side Fan Current:	0.35/0.25 A
TEM Nominal/Startup Current:	4.2/5.3A	Nominal/Max Voltage:	24/30 VDC
Overall Dimension:	203mm X 155mm X 213mm	Weight:	4.8Kg
Life Time:	>=70,000 Hours	Tolerance:	10%

ATA080-24VDC Air to air thermoelectric Cooler

1.Product Introduction

The ATA080-24 Thermoelectric air conditioner is designed for electronic cabinets and environmental chambers.

It can maintain ambient temperatures while removing up to 80W. This model is available in 24VDC configurations.

This air conditioner is virtually maintenance-free, with no filters ambient to change, and it can be mounted in

any orientation, offering design flexibility with solid-state reliability

2.Features

80W capacity rated at ΔT = 0ºC,Tambient = 30°C
Refrigerant free - environmentally friendly
Wide operating temperature range of –20°C to +60°C
Shift between heating and cooling without using a heater
Reduced noise and vibration with no moving parts

3.Application

Outdoor enclosures
Outdoor/Indoor Kiosks and display
Battery Cabinet
Food/Consumer Refrigerator

4.Performance Curve

80W Thermoelectric Air Conditioner Designed for Outdoor Enclosures and Indoor Kiosks Providing Cooling and Heating Functions 1

5.Installation cut hole and Connector

80W Thermoelectric Air Conditioner Designed for Outdoor Enclosures and Indoor Kiosks Providing Cooling and Heating Functions 2

6.Dimension

80W Thermoelectric Air Conditioner Designed for Outdoor Enclosures and Indoor Kiosks Providing Cooling and Heating Functions 3
