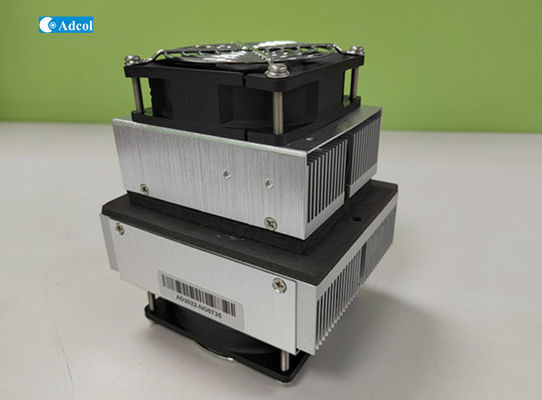

35W Thermoelectric Air Conditioner Peltier Cooler For Battery Cabinet

35W Thermoelectric Air Conditioner Peltier Cooler For Battery Cabinet
35W Thermoelectric Air Conditioner Peltier Cooler For Battery Cabinet 35W Thermoelectric Air Conditioner Peltier Cooler For Battery Cabinet 35W Thermoelectric Air Conditioner Peltier Cooler For Battery Cabinet 35W Thermoelectric Air Conditioner Peltier Cooler For Battery Cabinet 35W Thermoelectric Air Conditioner Peltier Cooler For Battery Cabinet

Large Image :  35W Thermoelectric Air Conditioner Peltier Cooler For Battery Cabinet

Product Details:
Place of Origin: China
Brand Name: Adcol
Certification: ISO9001 , CE
Model Number: ATA035 - 12VDC
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Solid carton packaging
Delivery Time: 3 - 4 weeks
Payment Terms: T/T , Paypal
Supply Ability: 500pcs per month

35W Thermoelectric Air Conditioner Peltier Cooler For Battery Cabinet

Description
Description: Air To Air Cooling System Cooling Capacity: 35 W
Input Voltage: 12VDC Working Ambient Temp.: 0-60 Degree C
Running Current: 2.2A Start Current: 2.8A
Net Weight: 2KG Product Name: Thermoelectric Air Conditioner
Type: Portable
High Light:

Battery Cabinet Thermoelectric Air Conditioner

,

Peltier Thermoelectric Air Conditioner

,

Battery Cabinet Thermoelectric Peltier Cooler

35W Thermoelectric Air Conditioner Peltier Cooler For Battery Cabinet​

Thermoelectric cabinet coolers are the ideal solution to cool and remove heat from small cabinets, control panels and consoles. It's technology and design make them especially suitable for harsh environments like food industry or traffic engineering. The cabinet coolers utilize solid state peltier technology and can be operated in vertical orientation. Separation of internal air circulation and ambient external air flow and a hermetical seal at the flange guarantee protection class IP55.

Cooling capacities range from 20 to 400 W (can be customized)

The thermoelectric dehumidifiers create a local condensation surface, collect and optionally dispose of the condensate to the outside of a cabinet. Condensation causes corrosion and malfunction of electrical switchgear. The thermoelectric dehumidifiers consume only 50 W and have a much higher energy efficiency as compared to conventionally used heaters.

The ATA015-12VDC Thermoelectric air conditioner is designed for small electronic cabinets or environmental chambers application. It can cool to 67 degree below ambient or maintain ambient temperatures while removing up to 15W. This model is available in 12VDC configurations. This air conditioner is virtually maintenance-free, with no filters ambient to change, and it can be mounted in any orientation, offering design flexibility with solid-state reliability.

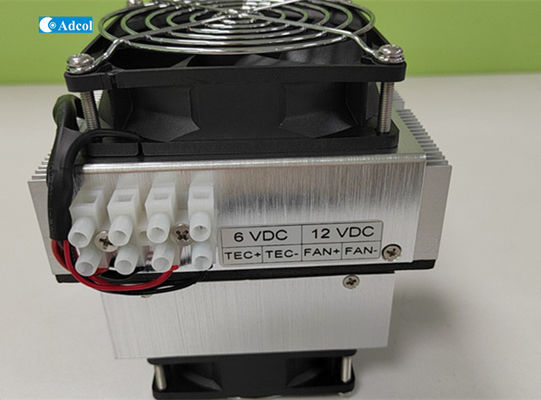

Wiring Schematic:

35W Thermoelectric Air Conditioner Peltier Cooler For Battery Cabinet 0



Position Description
1 TEC +
2 TEC -
3 FAN +
4 FAN -


Features:

﹒Realiable solid state construction with long life
﹒Reliable cool capability
﹒DC power configuration



Applications:

- Security Equipment, geophysical exploration and drilling equipment

- Outdoor Media Equipment.
- Other kiosk


35W Thermoelectric Air Conditioner Peltier Cooler For Battery Cabinet 1
