TEC Peltier Liquid Thermoelctric Aluminum Plate Cooler 24VDC

Large Image : TEC Peltier Liquid Thermoelctric Aluminum Plate Cooler 24VDC

Product Details:

Place of Origin:	China
Brand Name:	Adcol
Certification:	ISO9001 , CE
Model Number:	ATA200-24

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Solid carton packaging
Delivery Time:	3 - 4 weeks
Supply Ability:	500pcs per month

Contact Now

TEC Peltier Liquid Thermoelctric Aluminum Plate Cooler 24VDC

Description

Cooling Method:	Air Cool	Radiating Method:	Air Force
Ambient Temperature/humidity:	-20 To 60°C	Cooling Capacity:	192W
Input Power:	330W	Heating Capacity:	520W
Hot/Cold Side Fan Current:	0.60/0.35 A	TEM Nominal/Startup Current:	12.5/14.8A
Nominal/Max Voltage:	24/27 VDC	Overall Dimension:	400mm X 180mm X 203mm
Ambient Temperature:	0 - 60 ºC	Weight:	7.5Kg
Life Time:	>=70,000 Hours	Noise:	55 DB
Highlight:	24VDC Aluminum Plate Cooler , Liquid Thermoelctric Aluminum Plate Cooler

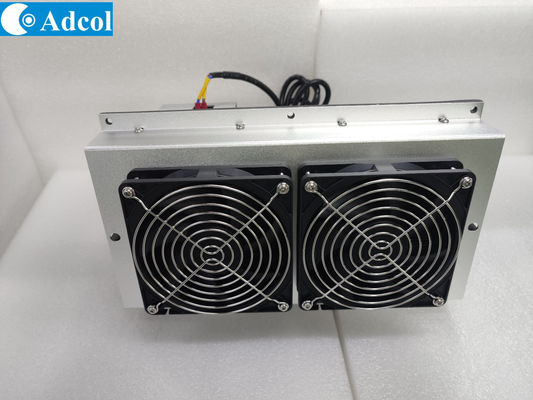

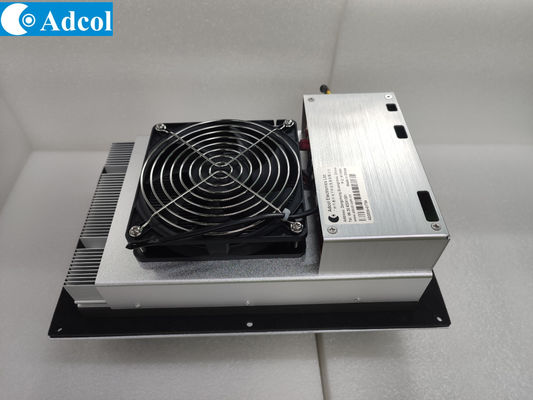

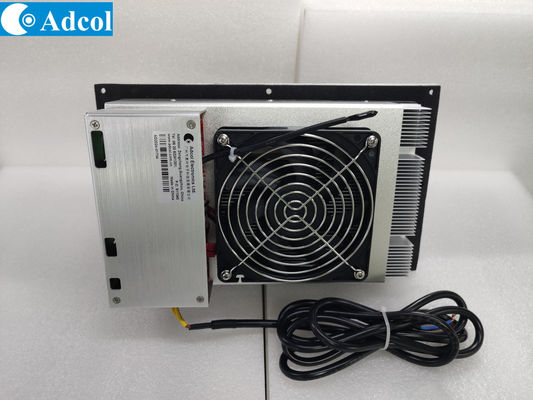

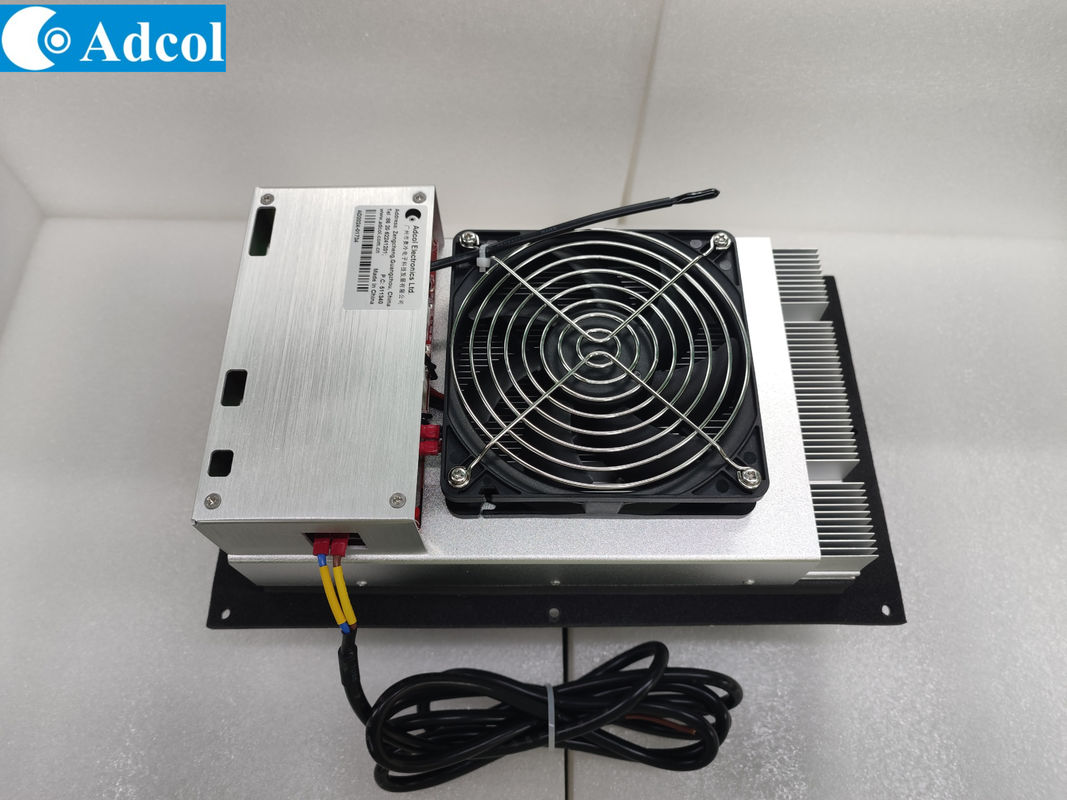

TEC Peltier Liquid Thermoelctric Aluminum Plate Cooler 24VDC 0

The ATA180-24 Thermoelectric air conditioner is designed for

electronic cabinets and environmental chambers. It can

maintain ambient temperatures while removing up to about

200W. This model is available in 24VDC configurations. This air

conditioner is virtually maintenance-free, with no filters

ambient to change, and it can be mounted in any orientation,

offering design flexibility with solid-state reliability

Features 特点

About 180W capacity rated at ΔT = 0ºC,Tambient = 30°C 在环境温度 30 度下制冷量约 200 瓦

Refrigerant free - environmentally friendly 不使用制冷剂-环境友好

Wide operating temperature range of –20°C to +60°C 使用环境温度宽–20°C to +60°C

Shift between heating and cooling without using a heater 加热制冷切换

Reduced noise and vibration with no moving parts 无机械压缩,运行安静可靠

Application 应用

Outdoor enclosures 户外柜子的冷却

Outdoor/Indoor Kiosks and display 户外户内机柜和显示装置的冷却

Battery Cabinet电池仓的冷却

Food/Consumer Refrigerator 食品消费品冷藏箱
