12VDC Configuration ATA060-12 Thermoelectric Air Conditioner For Environmental Chambers

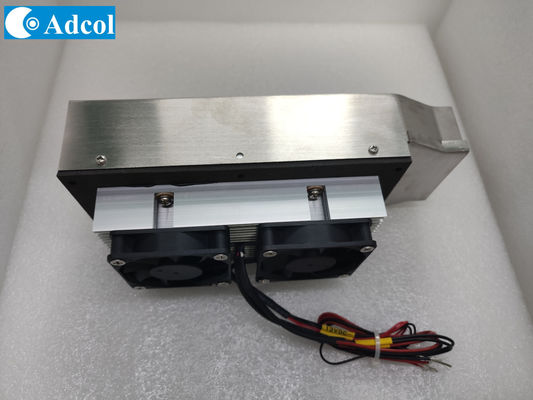

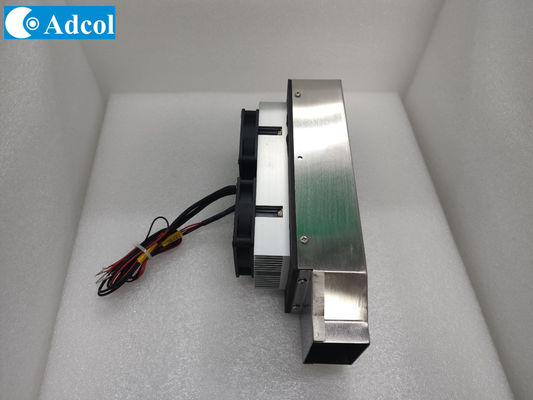

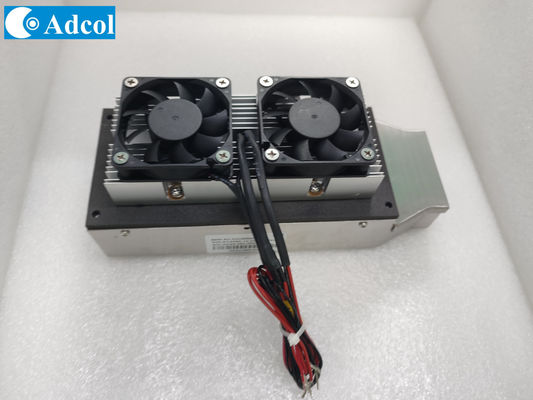

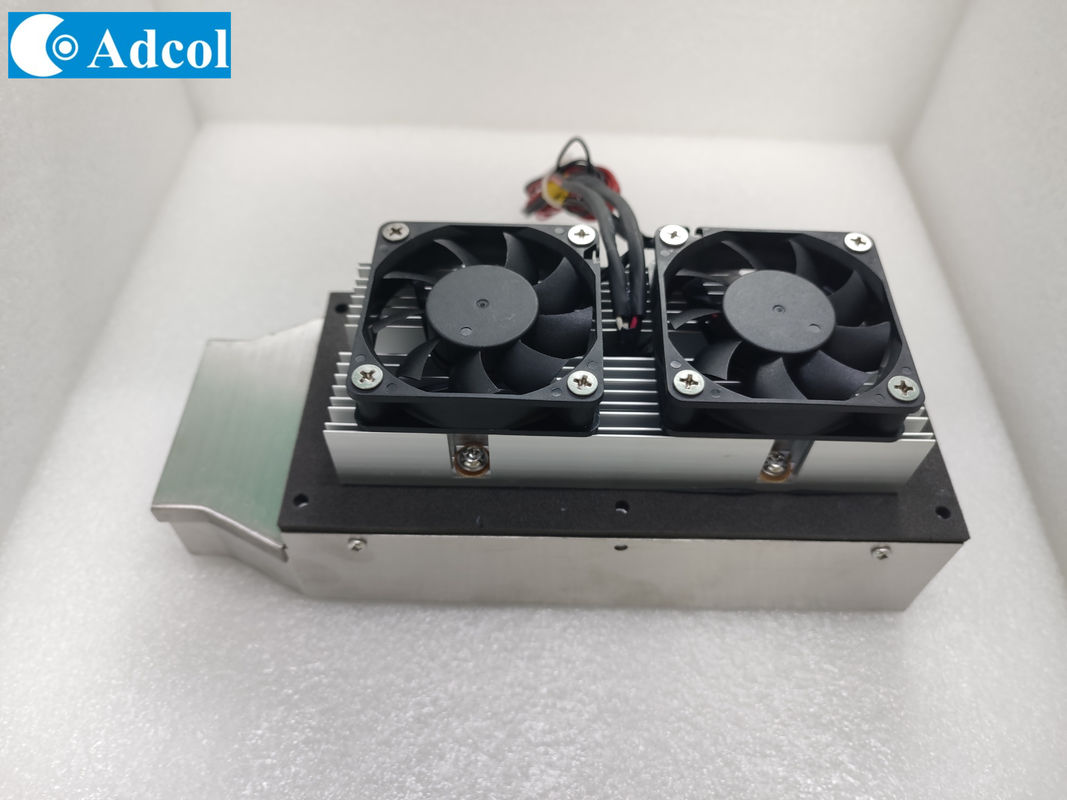

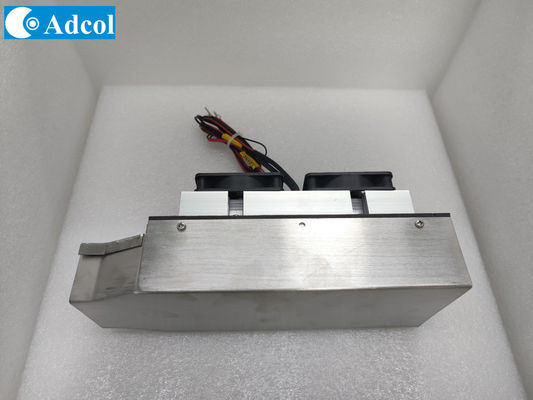

Large Image : 12VDC Configuration ATA060-12 Thermoelectric Air Conditioner For Environmental Chambers

Product Details:

Place of Origin:	China
Brand Name:	Adcol
Certification:	ISO9001 , CE
Model Number:	ATA060-12

Payment & Shipping Terms:

Minimum Order Quantity:	1EA
Price:	Negotiation
Packaging Details:	Solid carton packaging
Delivery Time:	3 - 4 weeks
Payment Terms:	T/T , Paypal
Supply Ability:	500pcs per month

Contact Now

12VDC Configuration ATA060-12 Thermoelectric Air Conditioner For Environmental Chambers

Description

Cooling Method:	Air Cool	Radiating Method:	Force Air
Ambient Temperature/humidity Range:	-20 To 70°C	Cooling Capacity:	60W
Input Power:	100W	Heating Capacity:	135W
Hot/Cold Side Fan Current:	0.25/0.18 A	TEM Nominal/Startup Current:	4.0/4.6A
Nominal/Max Voltagep:	24/30 VDC	Weight:	2KG
Life Time:	>=70,000 Hours	Tolerance:	10%
Highlight:	Environmental Chambers Thermoelectric Air Conditioner , 12VDC Thermoelectric Air Conditioner

12VDC Configuration ATA060-12 Thermoelectric Air Conditioner For Environmental Chambers 0

The ATA060-12 Thermoelectric air conditioner is designed for

electronic cabinets and environmental chambers. It can

maintain ambient temperatures while removing up to 50W.

This model is available in 12VDC configurations. This air

conditioner is virtually maintenance-free, with no filters

ambient to change, and it can be mounted in any orientation,

offering design flexibility with solid-state reliability.

Features 特点

1.50W capacity rated at ΔT = 0ºC,Tambient = 30°C 在环境温度 30 度下制冷量约 60 瓦

2.Refrigerant free - environmentally friendly 不使用制冷剂-环境友好

3.Wide operating temperature range of –20°C to +60°C 使用环境温度宽–20°C to +60°C

4.Shift between heating and cooling without using a heater 加热制冷切换

5.Reduced noise and vibration with no moving parts 无机械压缩,运行安静可靠

Application 应用

1.Outdoor enclosures户外柜子的冷却

2.Outdoor/Indoor Kiosks and display 户外户内机柜和显示装置的冷却

3.Battery Cabinet电池仓的冷却

4.Food/Consumer Refrigerator 食品消费品冷藏箱
