ATL300-24-00-T10 Air To Liquid Thermoelectric Cooler Assembly 300W 24VDC Life Time70000Hours

ATL300-24-00-T10 Air To Liquid Thermoelectric Cooler Assembly 300W 24VDC Life Time70000Hours
ATL300-24-00-T10 Air To Liquid Thermoelectric Cooler Assembly 300W 24VDC Life Time70000Hours ATL300-24-00-T10 Air To Liquid Thermoelectric Cooler Assembly 300W 24VDC Life Time70000Hours ATL300-24-00-T10 Air To Liquid Thermoelectric Cooler Assembly 300W 24VDC Life Time70000Hours ATL300-24-00-T10 Air To Liquid Thermoelectric Cooler Assembly 300W 24VDC Life Time70000Hours ATL300-24-00-T10 Air To Liquid Thermoelectric Cooler Assembly 300W 24VDC Life Time70000Hours

Large Image :  ATL300-24-00-T10 Air To Liquid Thermoelectric Cooler Assembly 300W 24VDC Life Time70000Hours

Product Details:
Place of Origin: China
Brand Name: Adcol
Certification: ISO9001 , CE
Model Number: ATL300-24
Payment & Shipping Terms:
Minimum Order Quantity: 1EA
Price: Negotiation
Packaging Details: Solid carton packaging
Delivery Time: 3 - 4 weeks
Payment Terms: T/T , Paypal
Supply Ability: 500pcs per month
Contact Now

ATL300-24-00-T10 Air To Liquid Thermoelectric Cooler Assembly 300W 24VDC Life Time70000Hours

Description
P/N: ATL300-24-00-T10 Cooling Method: Liquid Cool
Radiating Method: Air Force Ambient Temperature/humidity: -20 To 60°C
Cooling Capacity: 300W+/-10% Input Power: 360W
Outer Dim For Connector: SMC L8/L10 Material Of Exchanger: Al With Hard Oxidation
Hot/Cold Side Fan Current: 0.9A / NA TEM Nominal/Startup Current: 14A/18A
Nominal/Max Voltage: 24/30 VDC Overall Dimension: 260mm X 158mm X 160mm
Noise: 52 DB Weight: 5.5Kg
Life Time: >=70,000 Hours Tolerance: 10%
Highlight:

Time 70000 Hours thermoelectric Cooler Assembly

,

24VDC thermoelectric Cooler Assembly

,

300W thermoelectric Cooler Assembly

ATL300-24-00-T10 Air To Liquid Thermoelectric Cooler Assembly 300W 24VDC Life Time70000Hours 0

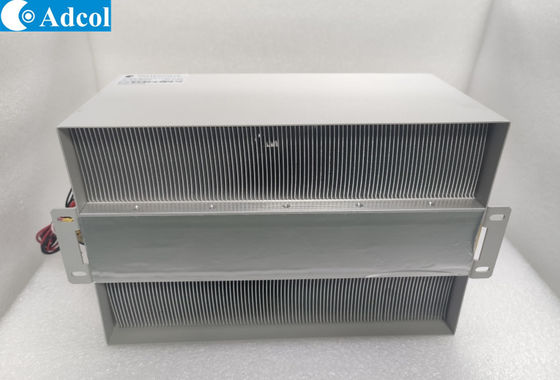

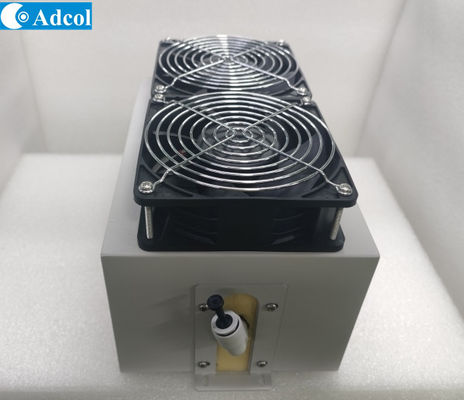

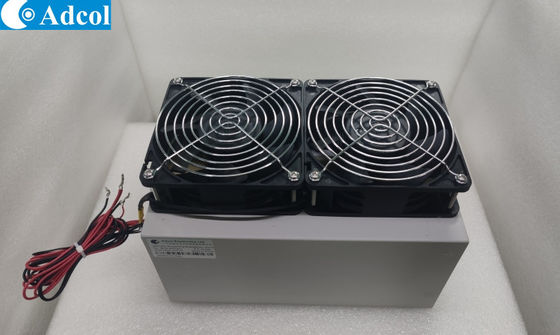

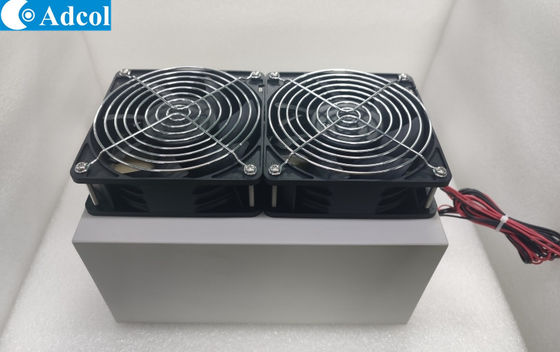

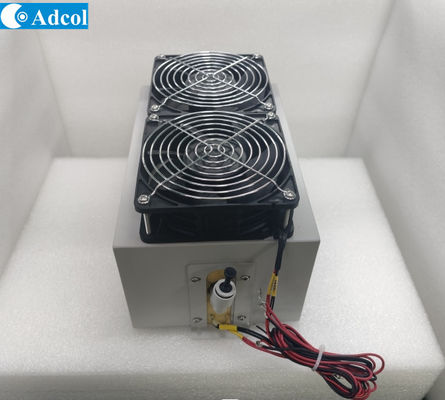

ATL300-24-00-T10 Air to Liquid thermoelectric Cooler Assembly

The ATL300-24-T10 Thermoelectric air liquid is designed for cooling objects via liquid to transfer heat. Heat is absorbed through a liquid exchanger and dissipated by high density heatsink with fan.It could remove up to about 300W cooling, and is available in 24VDC configurations. Also it is virtually maintenance-free, and can be mounted in any orientation, offering design flexibility with solid-state reliabilit.

Features 特点
1.270W capacity rated at ΔT = 0ºC,Tambient = 30°C 在环境温度 30 度下制冷量约 300 瓦
2.Refrigerant free - environmentally friendly 不使用制冷剂-环境友好
3.Wide operating temperature range of –20°C to +60°C 使用环境温度宽–20°C to +60°C
4.Shift between heating and cooling without using a heater 加热制冷切换
5.Reduced noise and vibration with no moving parts 无机械压缩,运行安静可靠

Application 应用
1.Analytical instrument 分析仪器的冷却板
2.Medical diagnostics 医疗设备恒温
3.Industrial laser 工业激光水冷
4.Medical laser 医疗激光治疗设备水冷

ATL300-24-00-T10 Air To Liquid Thermoelectric Cooler Assembly 300W 24VDC Life Time70000Hours 1

ATL300-24-00-T10 Air To Liquid Thermoelectric Cooler Assembly 300W 24VDC Life Time70000Hours 2


ATL300-24-00-T10 Air To Liquid Thermoelectric Cooler Assembly 300W 24VDC Life Time70000Hours 3
